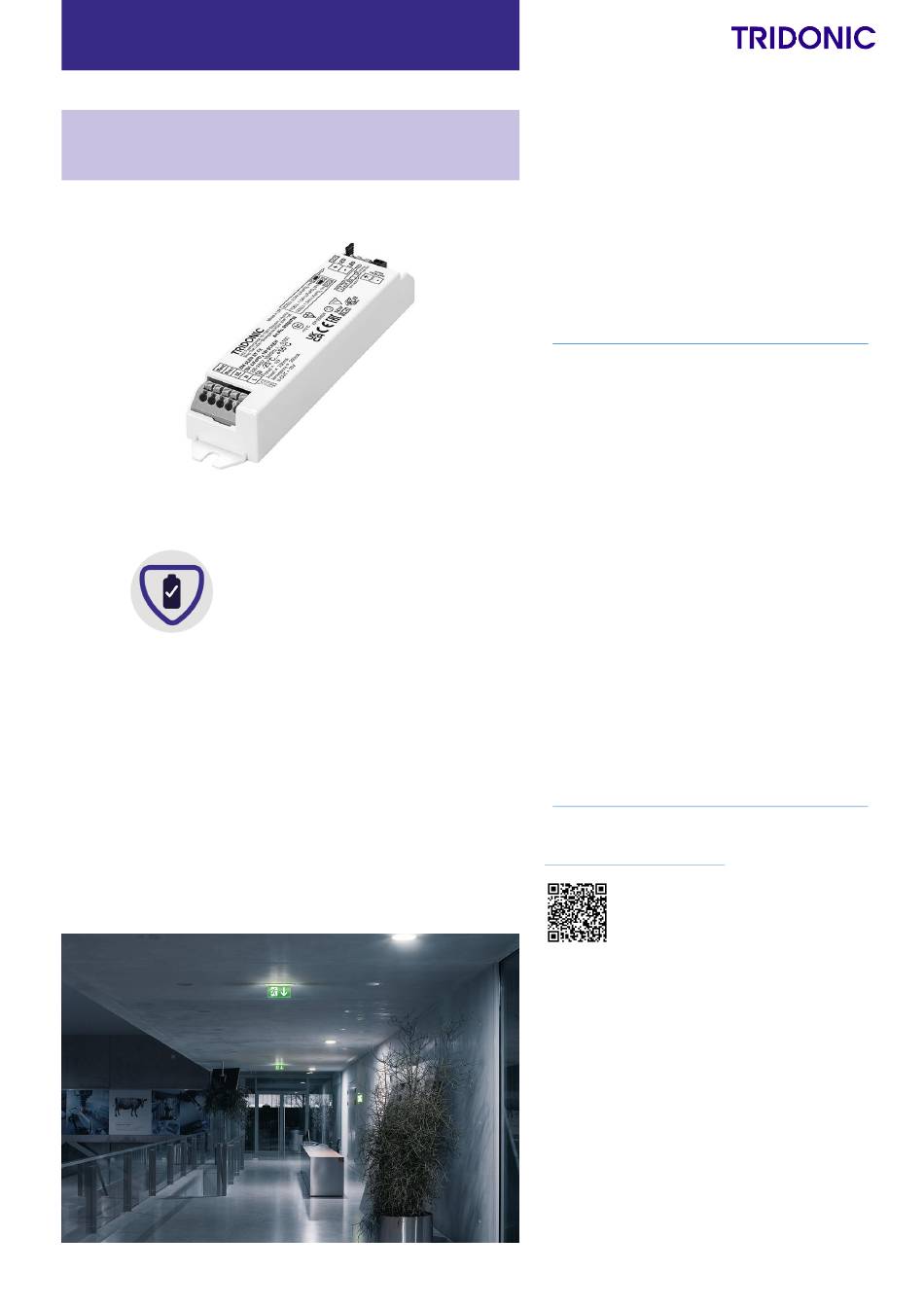

Tridonic EM powerLED Technical Data Sheet

Emergency lighting units

Advertisement

Quick Links

Emergency lighting units
EM powerLED
EM powerLED SELFTEST FX LiFePO4 1 – 2 W
Combined emergency lighting LED driver 1 – 4 W
LiFeGuard
Article information 10/24
Data sheet 10/24-EM132-6
Subject to change without notice.
Subject to change without notice.
Product description
_ Emergency lighting LED driver with selftest function
_ For self-contained emergency lighting
_ SELV for output voltage < 60 V DC
_ Low profile casing (21 x 30 mm cross-section)
_ EM = Emergency
_ 5 years guarantee (conditions at
https://www.tridonic.com/manufacturer-guarantee-conditions)
Properties
_ Mains and emergency operation
_ Self-test as per IEC 62034
_ Constant current mode
_ With either screw or clip fastening (clip-fix)
_ 1, 2 or 3 h rated duration
_ Selectable operating time (jumper)
_ Two-colour status display LED
_ "Rest mode" function
_ SELV classified (outputs powerLED, battery, status LED, test
switch)
_ Very low energy consumption from the battery after activation of
the deep discharge protection
Battery management
_ Intelligent charge system
_ Deep discharge protection
_ Temperature protection
_ Reverse polarity protection
Batteries
_ LiFePO4 batteries with Tridonic LiFeGuard
_ Overcharge-/Overdischarge protection
_ Ensures safety in use
_ LiFePO4: 4 – 8 years design life
_ 5 years guarantee for LiFePO4 batteries (conditions at
https://www.tridonic.com/manufacturer-guarantee-conditions)
Website
http://www.tridonic.com/89800798
www.tridonic.com
www.tridonic.com
1
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the EM powerLED and is the answer not in the manual?

Questions and answers

Summary of Contents for Tridonic EM powerLED

  • Page 1 Emergency lighting units EM powerLED EM powerLED SELFTEST FX LiFePO4 1 – 2 W Combined emergency lighting LED driver 1 – 4 W Product description _ Emergency lighting LED driver with selftest function _ For self-contained emergency lighting _ SELV for output voltage < 60 V DC...
  • Page 2 Emergency lighting units EM powerLED EM powerLED SELFTEST FX LiFePO4 1 – 2 W Combined emergency lighting LED driver 1 – 4 W Screw-fix Clip-fix Ordering data Type Article number Dimensions L x W x H Rated duration Max. number of LEDs...
  • Page 3: Specific Technical Data

    Type of protection IP20 Lifetime up to 100,000 h Guarantee (conditions at www.tridonic.com) 5 Year(s) Approval marks Standards EN 61347-2-7, EN 61347-2-13, EN 62384, EN 55015, EN 61000-3-2, EN 61547, EN 60068-2-29, EN 60068-2-30, EN 60068-2-64, according to EN 50172, according to EN 60598-2-22, acc.
  • Page 4 Emergency lighting units EM powerLED Test switch EM2 Product description _ For connection to the emergency lighting unit _ For checking the device function _ Dielectric strength: 1,500 V AC for 60 seconds Website http://www.tridonic.com/89805277 Ordering data Type Article number...
  • Page 5 Emergency lighting units EM powerLED Connection cable LiFePO4 Product description _ Extension cable for LiFePO4 batteries _ Cable length 500 mm _ 3-pole plug connection Website http://www.tridonic.com/28002461 Ordering data Type Article number Packaging, bag Packaging, carton Weight per pc. EXTENSION CABLE LiFePO4 500mm 28002461 10 pc(s).
  • Page 6 Emergency lighting units EM powerLED Permissible cable jacket diameter 2.2 – 9 mm Website http://www.tridonic.com/28004033 Ordering data Type Article number Packaging, carton Weight per pc. EM pLED SR 28004033 10 pc(s). 0.05 kg Approval marks Article information 10/24 Data sheet 10/24-EM132-6 Subject to change without notice.
  • Page 7 Emergency lighting units Emergency lighting units EM powerLED EM powerLED 1. Standards • EN 61347-2-7 • EN 61347-2-13 • EN 62384 • EN 55015 • EN 61000-3-2 • EN 61547 • EN 60068-2-29 • EN 60068-2-30 • EN 60068-2-64 • according to EN 50172 •...
  • Page 8: Installation & Wiring

    Battery Take care that the LED is connected with the right polarity. LED that are connected to the EM powerLED devices should have a reverse polartity pro- tection device such as a schottky diodes fitted, otherwise irreversible dama- ge could occur if the LED is connected in reverse polarity. Any protection device must be capaple of handling in excess of 700 mA.
  • Page 9 The EM powerLED has the switched line SL connected to permanent mains supply. On presence both mains LED driver and EM powerLED are active and dri- ving all LEDs. With no presence the mains LED driver is switched off by the presence detector and the EM powerLED stays on operating the emergency LEDs at low power.
  • Page 10: Mechanical Values

    Emergency lighting units Emergency lighting units EM powerLED EM powerLED 3.5 Wiring guidelines 4.2 Mechanical data accessories • The LED terminals, battery, indicator LED and test switch terminals are clas- LED bi-colour status indicator sified as SELV (output voltage < 60 V DC). Keep the wiring of the input ter- •...
  • Page 11: Electrical Values

    10 seconds to enable the EM powerLED to read the new link position on recon- nection of the battery and mains. It will lead to a false battery failure indica- tion if the link is changed after installation without this reset.
  • Page 12 The easy commissioning feature will set the initial test day and time to ensu- re random testing of units. Test switch An optional test switch can be wired to each EM powerLED ST. This can be used to to: • initiate a 5 seconds function test press 200 ms <...
  • Page 13: Battery Data

    Emergency lighting units Emergency lighting units EM powerLED EM powerLED 7. Battery data 7.1 Battery selection EM pLED ST FX LiFePO4, 1 / 2 / 3 h Type EM pLED ST FX LiFePO4 1W EM pLED ST FX LiFePO4 2W Article no.
  • Page 14 The temperature protection is activated below approx. 0 °C and above approx. +60 °C. The discharging of the battery is still possible to guarantee emergency Only use Tridonic batteries. operation. Battery has built in thermal sensor for safe charging. Mount battery away from heat source.
  • Page 15 8.2 Mains-connected transformers The EM powerLED does not contain mains-connected windings of transfor- mers. 8.3 FELV control terminals FELV control terminals marked „Risk of electric shock“ are not safe to touch.
