Tridonic M converterPACK PRO slim Installation And Wiring Instructions

Non-maintained emergency lighting LED driver kit with automatic test function for LED modules
with a forward voltage of 10 to 54 V
3 h rated duration
DALI certified emergency driver

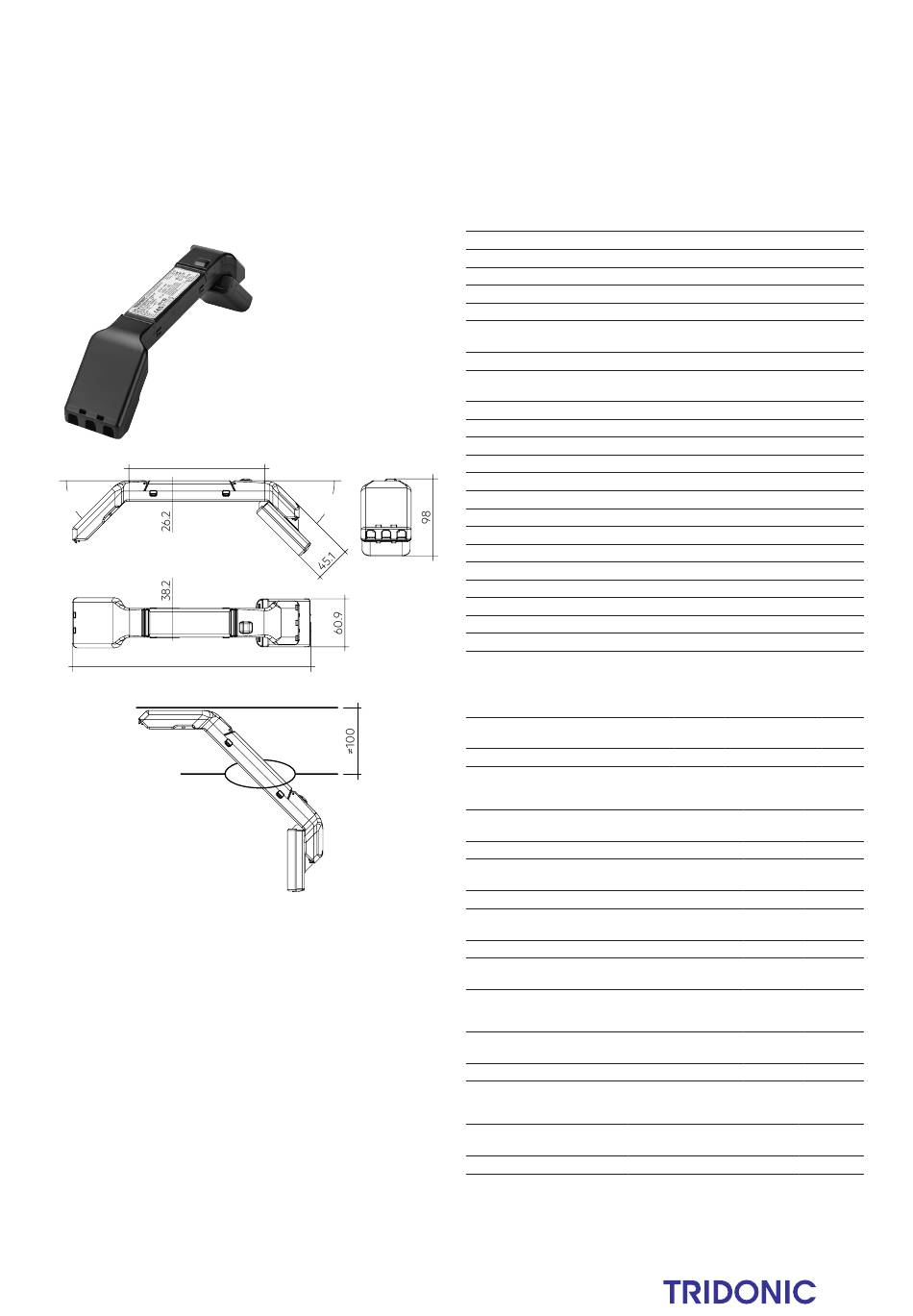

EM converterPACK PRO slim
173
45°
303.1
Description
EM converterPACK PRO slim is designed for use with emergency
luminaries in conjunction with LED modules and LED drivers from
Tridonic and other manufacturers. It is compatible with LED light modules
for linear/area as well as downlight applications and can be used with
fixed output or dimming LED drivers of up to 150 W power.
The incorporated EM converterLED is approved to IEC / EN 61347-2-7
and provides a battery charge current that is within the range of charge
currents quoted on the Battery Manufacturers Declaration Form for the
ended battery types. This compatibility allows converted luminaires to
comply with the relevant parts of IEC / EN 60598-2-22.
Warranty
• 5 years
We reserve the right to make technical changes without prior notice.
Installation and wiring instructions
45°
ø68
Technical data
Rated supply voltage
AC voltage range
Mains frequency
LED module forward voltage range
Output current
Starting time
Overvoltage protection
U-OUT (including open- / short-circuit and double
load)
Max. open circuit voltage
Ambient temperature range ta
Max. casing temperature tc
Mains voltage changeover threshold
Mains surge capability (between L – N)
Mains surge capability (between L/N – PE)
Type of protection
Rest mode max. number of emergency units
Rest mode max. wiring distance
Functional test
Duration test
Lifetime
Guarantee (conditions at www.tridonic.com)
Dimensions LxWxH
1
Only valid for EM converterLED.
Ordering data
Type
EM cPK PRO 232A LiFePO4 50V
Status indication LED (not included)
Article
Type
number
LED EM bi-colour, 1.0 m CON 89800273
LED EM bi-colour, high brightness
89800275
HO 1.0 m CON
LED EM bi-colour, 0.6 m CON 89800474
LED EM bi-colour, high brightness
89800475
HO 0.6 m CON
LED EM bi-colour, 0.3 m CON 89800274
LED EM bi-colour, high brightness
89800276
HO 0.3 m CON
Test switch (not included)
Article
Type
number
Test switch EM 3 89899956
ACD EM LED INDICATOR HOLDER (not included)
Article
Type
number
ACD EM LED INDICATOR HOLDER 28002189 White
220 – 240 V
198 – 264 V
50 / 60 Hz
10 – 54 V
see EM converterLED data sheet
< 0.5 s from detection of emergency
event
320 V (for 48 h)
60 V
60 V
+5 ... + 50 °C
1
80 °C
according to EN 60598-2-22
1 kV
2 kV
IP20
100
1,000 m
Weekly 5s test
Yearly 3 h test
1
up to 100,000 h
5 years
303. 1 x 60. 9 x 98 mm
Article Packaging Packaging Weight
number carton Pallet per pc.
89801156 2 pc(s). 252 pc(s). 0.335 kg
Packaging, Packaging, Weight
bag carton per pc.
25 pc(s). 200 pc(s). 0.015 kg
25 pc(s). 200 pc(s). 0.015 kg
25 pc(s). 200 pc(s). 0.005 kg
25 pc(s). 200 pc(s). 0.005 kg
25 pc(s). 200 pc(s). 0.005 kg
25 pc(s). 200 pc(s). 0.005 kg
Packaging, Packaging, Weight
bag carton per pc.
25 pc(s). 200 pc(s). 0.013 kg
Packaging, Weight
Colour
carton per pc.
10 pc(s). 0.010 kg
