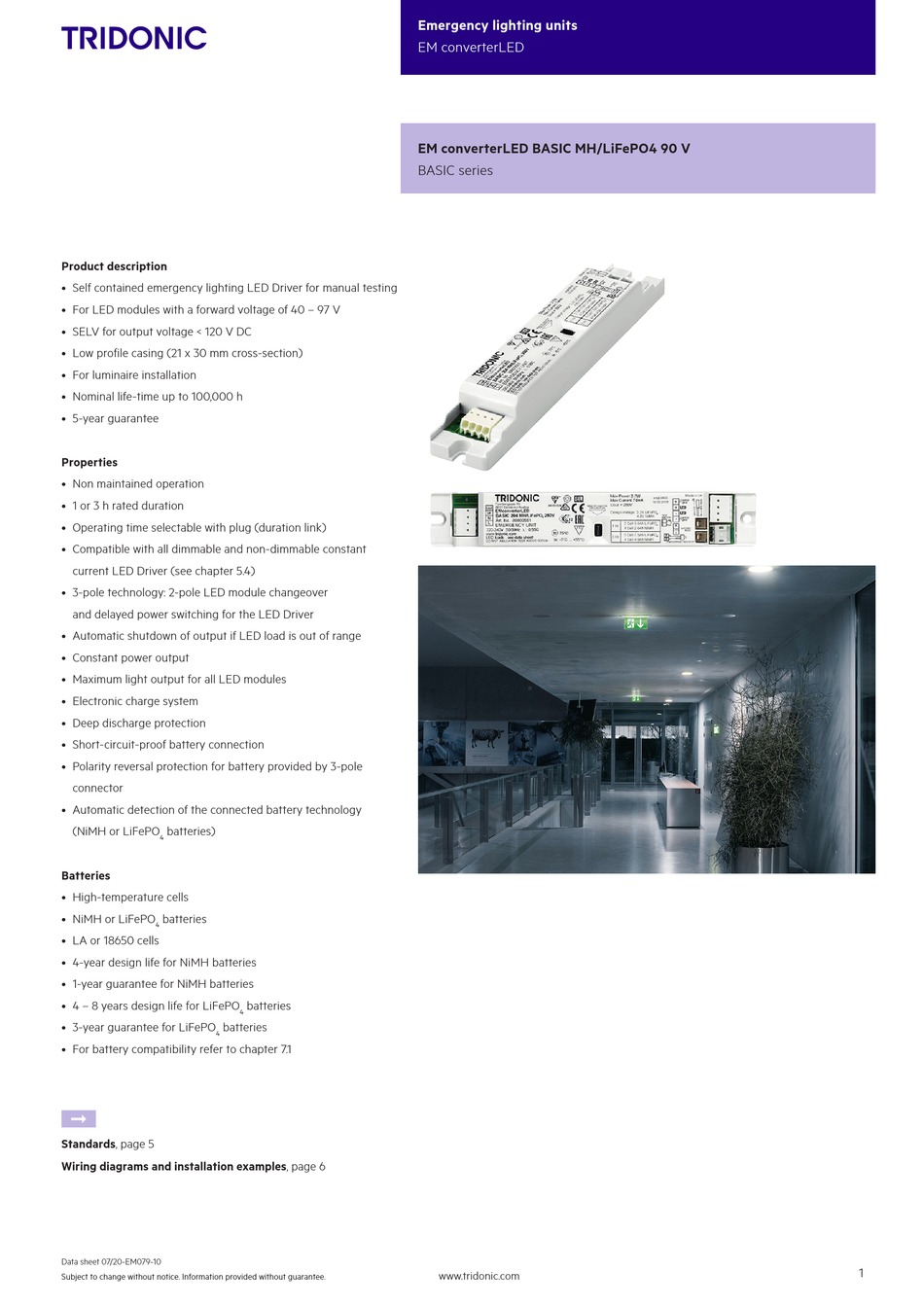

Product description
• Self contained emergency lighting LED Driver for manual testing
• For LED modules with a forward voltage of 40 – 97 V
• SELV for output voltage < 120 V DC
• Low profile casing (21 x 30 mm cross-section)
• For luminaire installation
• Nominal life-time up to 100,000 h
• 5-year guarantee
Properties
• Non maintained operation
• 1 or 3 h rated duration
• Operating time selectable with plug (duration link)
• Compatible with all dimmable and non-dimmable constant
current LED Driver (see chapter 5.4)
• 3-pole technology: 2-pole LED module changeover
and delayed power switching for the LED Driver
• Automatic shutdown of output if LED load is out of range
• Constant power output
• Maximum light output for all LED modules
• Electronic charge system
• Deep discharge protection
• Short-circuit-proof battery connection
• Polarity reversal protection for battery provided by 3-pole
connector
• Automatic detection of the connected battery technology
(NiMH or LiFePO
batteries)
4
Batteries
• High-temperature cells
• NiMH or LiFePO
batteries
4
• LA or 18650 cells
• 4-year design life for NiMH batteries
• 1-year guarantee for NiMH batteries
• 4 – 8 years design life for LiFePO
• 3-year guarantee for LiFePO
batteries
4
• For battery compatibility refer to chapter 7. 1
È
Standards, page 5
Wiring diagrams and installation examples, page 6
Data sheet 07/20-EM079-10
Subject to change without notice. Information provided without guarantee.
batteries
4
Emergency lighting units
EM converterLED

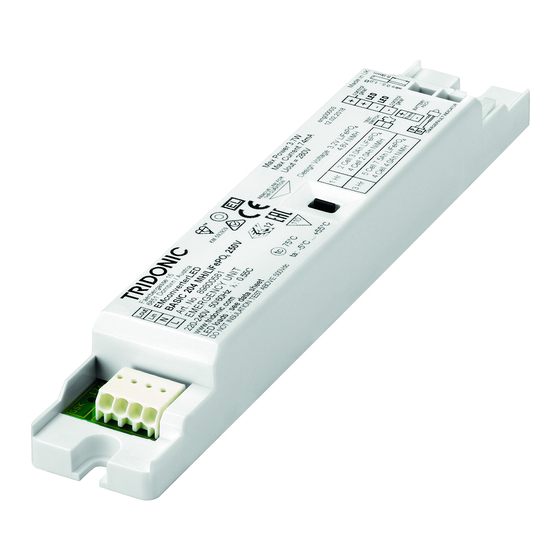

EM converterLED BASIC MH/LiFePO4 90 V
BASIC series
www.tridonic.com
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Tridonic EM converterLED BASIC 203 MH/LiFePO4 90V
Summary of Contents for Tridonic EM converterLED BASIC 203 MH/LiFePO4 90V
- Page 1 • 3-year guarantee for LiFePO batteries • For battery compatibility refer to chapter 7. 1 È Standards, page 5 Wiring diagrams and installation examples, page 6 Data sheet 07/20-EM079-10 www.tridonic.com Subject to change without notice. Information provided without guarantee.
- Page 2 IP20 number duration carton pallet per pc. Life-time up to 100,000 h EM converterLED BASIC 203 MH/LiFePO4 90V 89800578 1/3 h 10 pc(s). 1,600 pc(s).0.07 kg Dimensions LxWxH 179 x 30 x 21 mm EM converterLED BASIC 204 MH/LiFePO4 90V...
-
Page 3: Product Description
LED EM green, 0.3 m CON 89800270 25 pc(s). 200 pc(s). 0.005 kg LED EM green, HO 0.3 m CON 89800272 25 pc(s). 200 pc(s). 0.005 kg Data sheet 07/20-EM079-10 www.tridonic.com Subject to change without notice. Information provided without guarantee. - Page 4 • 2-pole plug connection for batteries and 3-pole plug connection for LED Driver Ordering data Packaging, Packaging, Weight Type Article number carton per pc. CONNECTION CABLE NiMH 500mm 28002462 10 pc(s). 200 pc(s). 0.015 kg Data sheet 07/20-EM079-10 www.tridonic.com Subject to change without notice. Information provided without guarantee.
-
Page 5: Installation & Wiring
> 100,000 h > 100,000 h 82,000 h EM converterLED BASIC 204 65 °C 70 °C 75 °C MH/LiFePO4 90V life-time > 100,000 h > 100,000 h 82,000 h Data sheet 07/20-EM079-10 www.tridonic.com Subject to change without notice. Information provided without guarantee. - Page 6 150 W in operation Neutral – – One LED module is operated in emergency mode. All LED modules are operated in mains mode. LED Module – Data sheet 07/20-EM079-10 www.tridonic.com Subject to change without notice. Information provided without guarantee.
- Page 7 When using an EM converterLED in combination with a NiMH battery, order the CONNECTION CABLE NiMH 500mm seperately. LiFePO : Direct connection LiFePO : Connection with extension EM converterLED EM converterLED Battery Battery Data sheet 07/20-EM079-10 www.tridonic.com Subject to change without notice. Information provided without guarantee.
-
Page 8: Mechanical Values
When using different phases, the unswitched line must fail if the switched line fails. This is required to assure correct switching into emergency mode. It can be realised with a relay. Data sheet 07/20-EM079-10 www.tridonic.com Subject to change without notice. Information provided without guarantee. -
Page 9: Electrical Values
The LED current in emergency mode is automatically adjusted by the EM converterLED module based on the total forward voltage of the LED modules con- nected and the associated battery. The start of the LED in emergency mode does not result in a current peak. EM converterLED BASIC 203 MH/LiFePO4 90V EM converterLED BASIC 204 MH/LiFePO4 90V... - Page 10 10 seconds to enable the EM converterLED to read the new link position on reconnection of the battery and mains. It will lead to a false battery failure indication if the link is changed after installation without this reset. Data sheet 07/20-EM079-10 www.tridonic.com Subject to change without notice. Information provided without guarantee.
-
Page 11: Battery Data
The battery will be charged below 0. 9 V. The EM converterLED will indicate a battery fault. The emergency lighting LED Driver will recharge the battery normally after running the test of 61347-2-7 CL 22.3 (abnormal operating conditions). Data sheet 07/20-EM079-10 www.tridonic.com Subject to change without notice. Information provided without guarantee. - Page 12 +60 °C. The discharging of the battery is still possible to guarantee emergency at +5 °C to +25 °C operation. Only use Tridonic batteries. 7.6 Wiring batteries Comply with UN 38.3 and IEC 62133 (safety testing) protected against over To inhibit inverter operation disconnect the batteries by removing the charge, over discharge, charging at excessive temperatures, short-circuit and connection at battery side.
- Page 13 8.3 Additional information Additional technical information at www.tridonic.com → Technical Data Guarantee conditions at www.tridonic.com → Services Life-time declarations are informative and represent no warranty claim.
