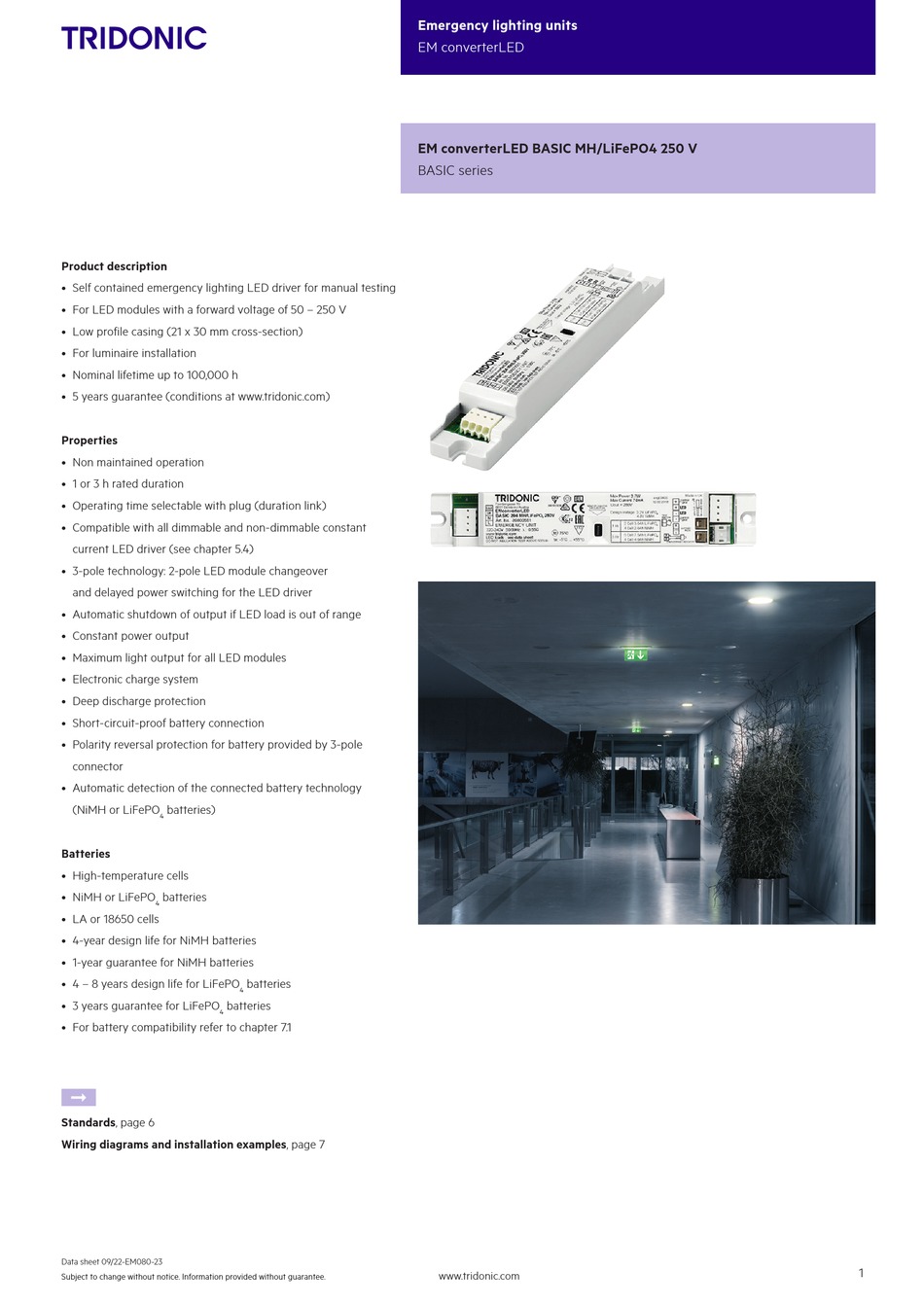

Product description
• Self contained emergency lighting LED driver for manual testing
• For LED modules with a forward voltage of 50 – 250 V
• Low profile casing (21 x 30 mm cross-section)
• For luminaire installation
• Nominal lifetime up to 100,000 h
• 5 years guarantee (conditions at www.tridonic.com)
Properties
• Non maintained operation
• 1 or 3 h rated duration
• Operating time selectable with plug (duration link)
• Compatible with all dimmable and non-dimmable constant
current LED driver (see chapter 5.4)
• 3-pole technology: 2-pole LED module changeover
and delayed power switching for the LED driver
• Automatic shutdown of output if LED load is out of range
• Constant power output
• Maximum light output for all LED modules
• Electronic charge system
• Deep discharge protection
• Short-circuit-proof battery connection
• Polarity reversal protection for battery provided by 3-pole
connector
• Automatic detection of the connected battery technology
(NiMH or LiFePO
batteries)
4
Batteries
• High-temperature cells
• NiMH or LiFePO
batteries
4
• LA or 18650 cells
• 4-year design life for NiMH batteries
• 1-year guarantee for NiMH batteries
• 4 – 8 years design life for LiFePO
• 3 years guarantee for LiFePO
batteries
4
• For battery compatibility refer to chapter 7. 1
È
Standards, page 6
Wiring diagrams and installation examples, page 7
Data sheet 09/22-EM080-23
Subject to change without notice. Information provided without guarantee.
batteries
4
Emergency lighting units
EM converterLED

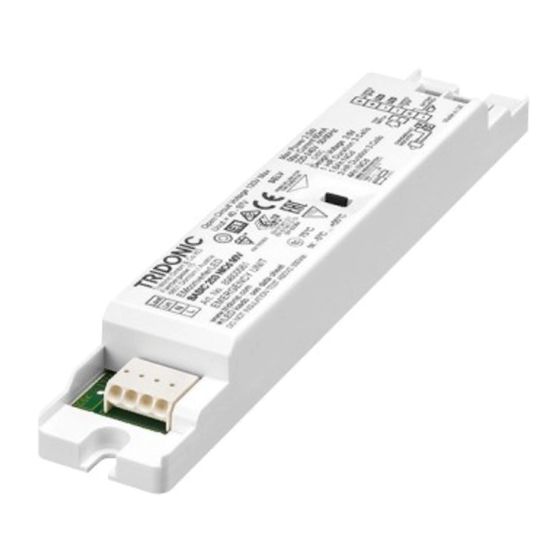

EM converterLED BASIC MH/LiFePO4 250 V
BASIC series
www.tridonic.com
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Tridonic BASIC Series
Summary of Contents for Tridonic BASIC Series
- Page 1 • For LED modules with a forward voltage of 50 – 250 V • Low profile casing (21 x 30 mm cross-section) • For luminaire installation • Nominal lifetime up to 100,000 h • 5 years guarantee (conditions at www.tridonic.com) Properties • Non maintained operation • 1 or 3 h rated duration •...
- Page 2 100,000 h EM converterLED BASIC 202A MH/LiFePO4 250V 89800709 1/3 h 10 pc(s). 1,600 pc(s). 0.07 kg Guarantee (conditions at www.tridonic.com) 5 years EM converterLED BASIC 203 MH/LiFePO4 250V 89800592 1/3 h 10 pc(s). 1,600 pc(s). 0.07 kg...
-
Page 3: Product Description
Permissible cable jacket diameter 2.2 – 9 mm Ordering data Article Type Packaging, carton Packaging, pallet Weight per pc. number EMcLED SR 28003813 10 pc(s). 1,260 pc(s). 0.08 kg Data sheet 09/22-EM080-23 www.tridonic.com Subject to change without notice. Information provided without guarantee. - Page 4 LED EM green, 0.3 m CON 89800270 25 pc(s). 200 pc(s). 0.005 kg LED EM green, HO 0.3 m CON 89800272 25 pc(s). 200 pc(s). 0.005 kg Data sheet 09/22-EM080-23 www.tridonic.com Subject to change without notice. Information provided without guarantee.
- Page 5 • 2-pole plug connection for batteries and 3-pole plug connection for LED driver Ordering data Packaging, Packaging, Weight Type Article number carton per pc. CONNECTION CABLE NiMH 500mm 28002462 10 pc(s). 200 pc(s). 0.015 kg Data sheet 09/22-EM080-23 www.tridonic.com Subject to change without notice. Information provided without guarantee.
-
Page 6: Installation & Wiring
> 100,000 h > 100,000 h 84,000 h EM converterLED BASIC 205 65 °C 70 °C 75 °C MH/LiFePO4 250V lifetime > 100,000 h > 100,000 h 80,000 h Data sheet 09/22-EM080-23 www.tridonic.com Subject to change without notice. Information provided without guarantee. - Page 7 150 W in operation Neutral – – One LED module is operated in emergency mode. All LED modules are operated in mains mode. LED Module – Data sheet 09/22-EM080-23 www.tridonic.com Subject to change without notice. Information provided without guarantee.
- Page 8 When using an EM converterLED in combination with a NiMH battery, order the CONNECTION CABLE NiMH 500mm seperately. LiFePO : Direct connection LiFePO : Connection with extension EM converterLED EM converterLED Battery Battery Data sheet 09/22-EM080-23 www.tridonic.com Subject to change without notice. Information provided without guarantee.
-
Page 9: Mechanical Values
Battery, LED, Test • • • • – – switch, Indicator LED LED driver • • – – • Represents basic insulation • • Represents double or reinforced insulation Data sheet 09/22-EM080-23 www.tridonic.com Subject to change without notice. Information provided without guarantee. - Page 10 1770 – 1900 mA battery discharge current (tolerance) LED current at nominal battery voltage and min. battery discharge current LED current at nominal battery voltage and max. battery discharge current Data sheet 09/22-EM080-23 www.tridonic.com Subject to change without notice. Information provided without guarantee.
- Page 11 10 seconds to enable the EM converterLED to read the new link position on reconnection of the battery and mains. It will lead to a false battery failure indication if the link is changed after installation without this reset. Data sheet 09/22-EM080-23 www.tridonic.com Subject to change without notice. Information provided without guarantee.
-
Page 12: Battery Data
The battery will be charged below 0. 9 V. The EM converterLED will indicate a battery fault. The emergency lighting LED driver will recharge the battery normally after running the test of 61347-2-7 CL 22.3 (abnormal operating conditions). Data sheet 09/22-EM080-23 www.tridonic.com Subject to change without notice. Information provided without guarantee. - Page 13 12 months at +5 °C to +25 °C at +5 °C to +25 °C Only use Tridonic batteries. Comply with UN 38.3 and IEC 62133 (safety testing) protected against over charge, over discharge, charging at excessive temperatures, short-circuit and over current.
-
Page 14: Battery Replacement
The EM converterLED does not contain mains-connected windings of trans- formers. 8.4 Additional information Additional technical information at www.tridonic.com → Technical Data Lifetime declarations are informative and represent no warranty claim. No warranty if device was opened. Data sheet 09/22-EM080-23 www.tridonic.com...
