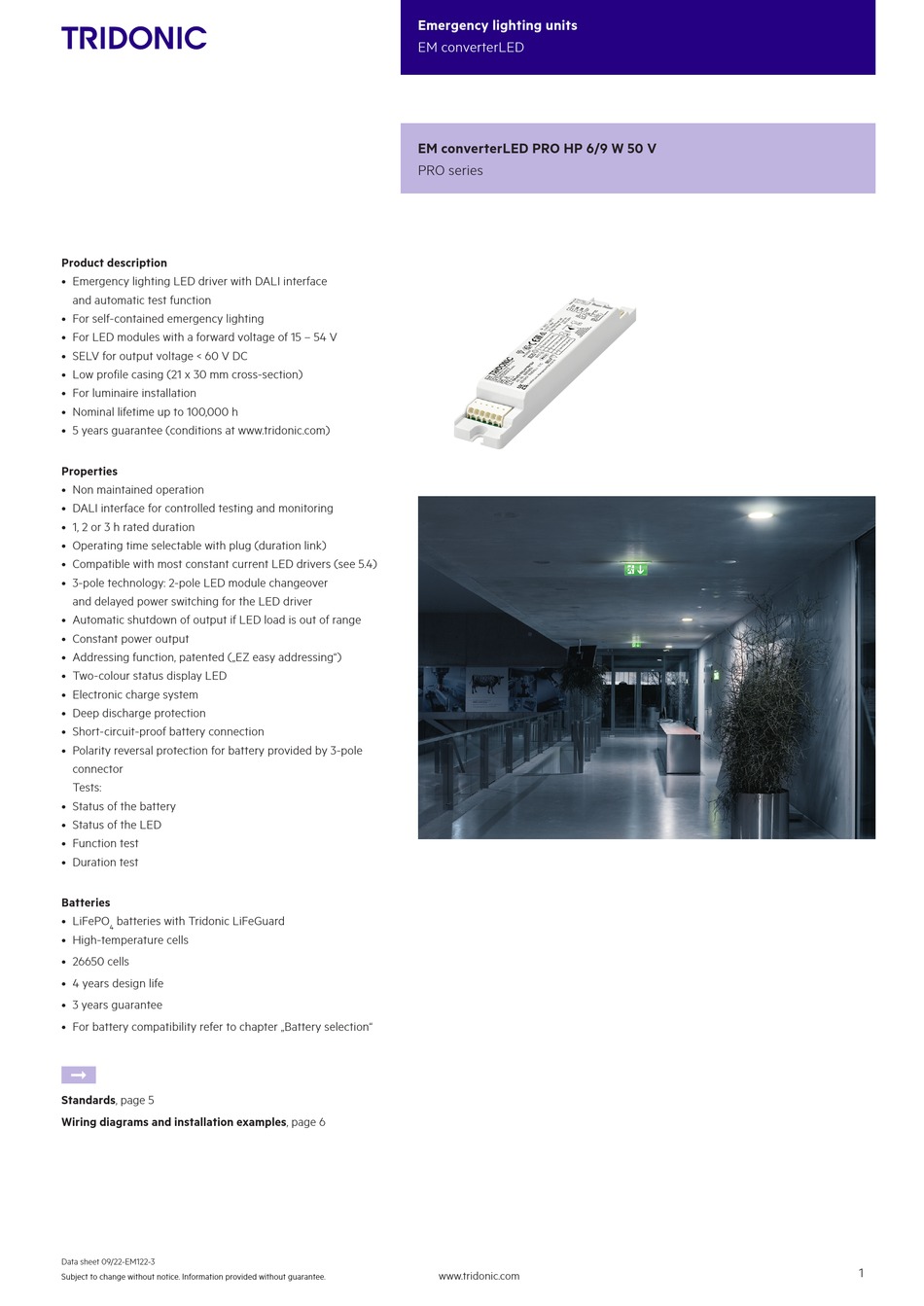

Product description
• Emergency lighting LED driver with DALI interface
and automatic test function
• For self-contained emergency lighting
• For LED modules with a forward voltage of 15 – 54 V
• SELV for output voltage < 60 V DC
• Low profile casing (21 x 30 mm cross-section)
• For luminaire installation
• Nominal lifetime up to 100,000 h
• 5 years guarantee (conditions at www.tridonic.com)
Properties
• Non maintained operation
• DALI interface for controlled testing and monitoring
• 1, 2 or 3 h rated duration
• Operating time selectable with plug (duration link)
• Compatible with most constant current LED drivers (see 5.4)
• 3-pole technology: 2-pole LED module changeover
and delayed power switching for the LED driver
• Automatic shutdown of output if LED load is out of range
• Constant power output
• Addressing function, patented („EZ easy addressing")
• Two-colour status display LED
• Electronic charge system
• Deep discharge protection
• Short-circuit-proof battery connection
• Polarity reversal protection for battery provided by 3-pole
connector
Tests:
• Status of the battery
• Status of the LED
• Function test
• Duration test
Batteries
• LiFePO
batteries with Tridonic LiFeGuard
4
• High-temperature cells
• 26650 cells
• 4 years design life
• 3 years guarantee
• For battery compatibility refer to chapter „Battery selection"
È
Standards, page 5
Wiring diagrams and installation examples, page 6
Data sheet 09/22-EM122-3
Subject to change without notice. Information provided without guarantee.
Emergency lighting units
EM converterLED
EM converterLED PRO HP 6/9 W 50 V
PRO series
www.tridonic.com
1
Advertisement
Table of Contents
Related Manuals for Tridonic PRO Series
Summary of Contents for Tridonic PRO Series
- Page 1 • Low profile casing (21 x 30 mm cross-section) • For luminaire installation • Nominal lifetime up to 100,000 h • 5 years guarantee (conditions at www.tridonic.com) Properties • Non maintained operation • DALI interface for controlled testing and monitoring •...
-
Page 2: Pro Series
Yearly 1 h / 2 h / 3 h test EMcLED PRO HP 9W 50V 89800834 1/2/3 h 10 pc(s). 1,600 pc(s). 0.07 kg Lifetime up to 100,000 h Guarantee (conditions at www.tridonic.com) 5 years Dimensions LxWxH 179 x 30 x 21 mm Specific technical data Battery Rated Typ. -
Page 3: Product Description
Permissible cable jacket diameter 2.2 – 9 mm Ordering data Article Type Packaging, carton Packaging, pallet Weight per pc. number EMcLED SR 28003813 10 pc(s). 1,260 pc(s). 0.08 kg Data sheet 09/22-EM122-3 www.tridonic.com Subject to change without notice. Information provided without guarantee. - Page 4 LED EM bi-colour, 0.3 m CON 89800274 25 pc(s). 200 pc(s). 0.005 kg LED EM bi-colour, high brightness HO 0.3 m CON 89800276 25 pc(s). 200 pc(s). 0.005 kg Data sheet 09/22-EM122-3 www.tridonic.com Subject to change without notice. Information provided without guarantee.
- Page 5 • Cable length 500 mm • 3-pole plug connection Ordering data Packaging, Packaging, Weight Type Article number carton per pc. EXTENSION CABLE LiFePO4 500mm 28002461 10 pc(s). 200 pc(s). 0.01 kg Data sheet 09/22-EM122-3 www.tridonic.com Subject to change without notice. Information provided without guarantee.
-
Page 6: Installation & Wiring
If the measured tc temperature is approx. 5 K below tc max., ta tempera- ture should be checked and eventually critical components (e.g. ELCAP) measured. Detailed information on request. Data sheet 09/22-EM122-3 www.tridonic.com Subject to change without notice. Information provided without guarantee. - Page 7 Neutral max. 300 W in operation – – One LED module is operated in emergency mode. LED Module All LED modules are operated in mains mode. – Data sheet 09/22-EM122-3 www.tridonic.com Subject to change without notice. Information provided without guarantee.
- Page 8 LED driver – Emergency Dali Battery Dali Dali Battery – – Dali Un-Switched Line Test switch Indicator LED driver Neutral max. 300 W in operation – Dali Dali Data sheet 09/22-EM122-3 www.tridonic.com Subject to change without notice. Information provided without guarantee.
-
Page 9: Mechanical Values
• DALI terminals are mains proof. • Protect the wiring against short circuits to earth (sharp edged metal parts, metal cable clips, louver, etc.) to avoid the damage of the control gear. Data sheet 09/22-EM122-3 www.tridonic.com Subject to change without notice. Information provided without guarantee. -
Page 10: Electrical Values
LiFePO4 battery 2S2P, 6.4 V battery voltage LiFePO4 battery 3S2P, 9.6 V battery voltage Max. LED current at nominal battery voltage Min. LED current at nominal battery voltage Data sheet 09/22-EM122-3 www.tridonic.com Subject to change without notice. Information provided without guarantee. -
Page 11: Dali Control
LEDs will be switched off and the indication LED will flash the 6 bit binary address preceded by a 3 second start indication period. Data sheet 09/22-EM122-3 www.tridonic.com Subject to change without notice. Information provided without guarantee. - Page 12 DALI controller. The default setting is a 5 seconds test on a weekly basis. DALI controllers and hardware/software solutions are available from Tridonic. Please refer to the Lighting controls section. Duration test The time of day and frequency of the duration test can be set by the DALI controller.
-
Page 13: Battery Data
+5 °C to +25 °C 7.4.2 Overcharge protection Only use Tridonic batteries. In case of an error or the use of a wrong driver the battery gets overcharged. The battery protection will disconnect the battery from the driver at a voltage of 3. - Page 14 7.4.3 Short-circuit protection 8.6 Additional information Additional technical information at www.tridonic.com → Technical Data In case of a short circuit the battery protection opens the connection to the driver and the output is therefore free of voltage. The output will be reactivated again when the short circuit is removed.
