Tridonic EM powerLED BASIC FX 103 SR 50W 50V Manual

Combined emergency lighting led driver
Hide thumbs
Table of Contents

Advertisement

Quick Links

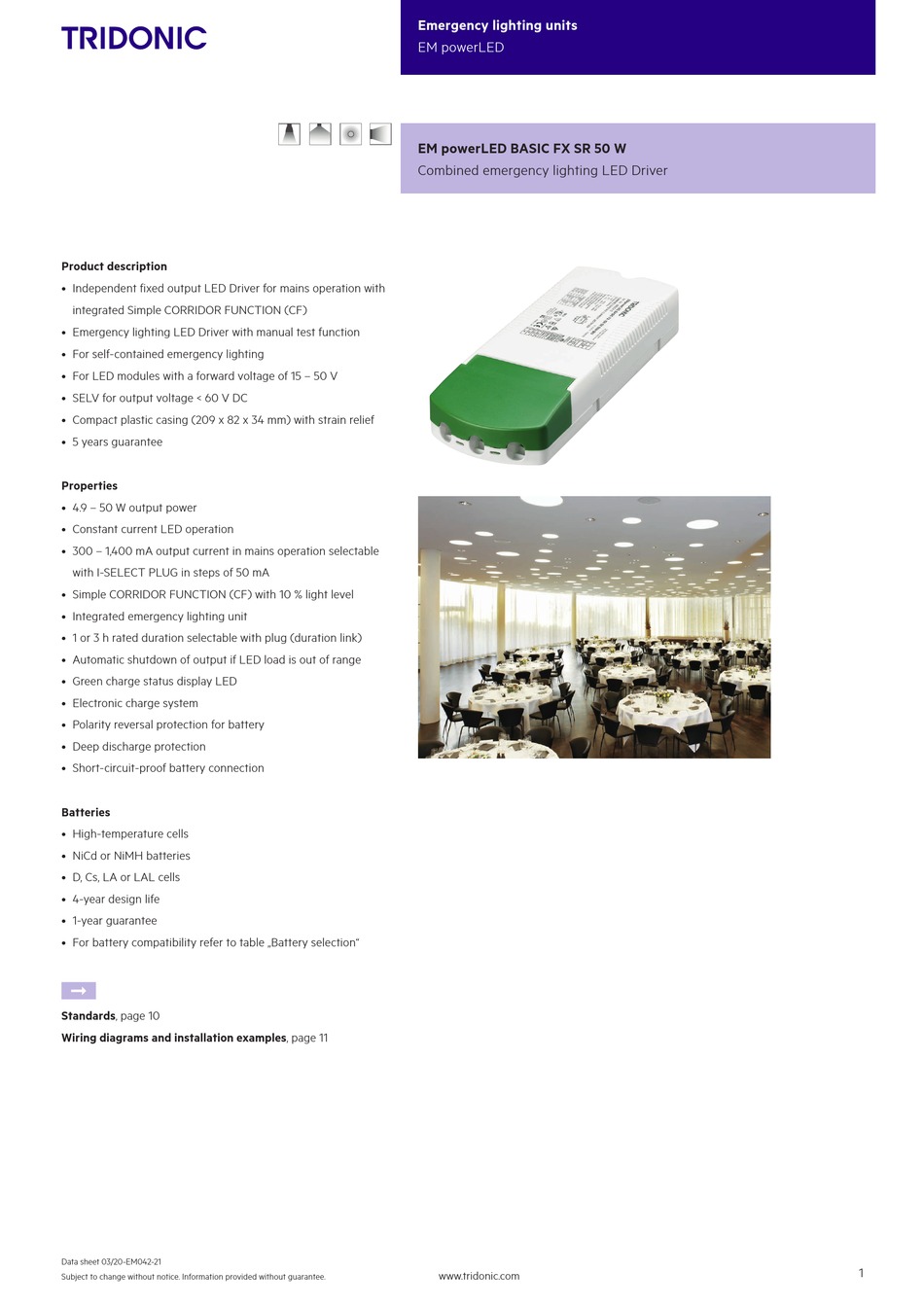

Product description
• Independent fixed output LED Driver for mains operation with
integrated Simple CORRIDOR FUNCTION (CF)
• Emergency lighting LED Driver with manual test function
• For self-contained emergency lighting
• For LED modules with a forward voltage of 15 – 50 V
• SELV for output voltage < 60 V DC

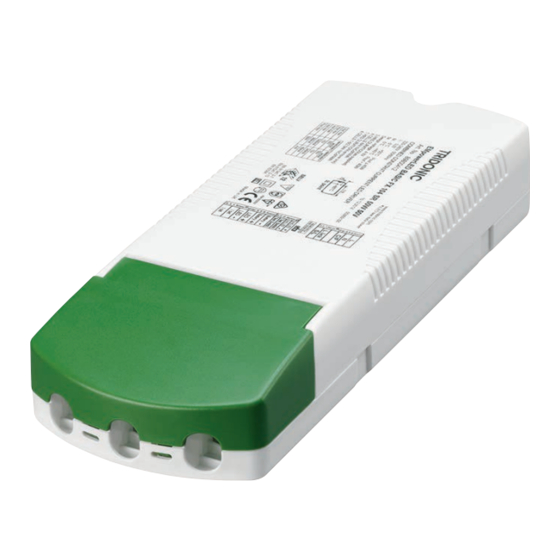

• Compact plastic casing (209 x 82 x 34 mm) with strain relief
• 5 years guarantee
Properties
• 4.9 – 50 W output power
• Constant current LED operation
• 300 – 1,400 mA output current in mains operation selectable
with I-SELECT PLUG in steps of 50 mA
• Simple CORRIDOR FUNCTION (CF) with 10 % light level
• Integrated emergency lighting unit
• 1 or 3 h rated duration selectable with plug (duration link)
• Automatic shutdown of output if LED load is out of range
• Green charge status display LED
• Electronic charge system
• Polarity reversal protection for battery
• Deep discharge protection
• Short-circuit-proof battery connection
Batteries
• High-temperature cells
• NiCd or NiMH batteries
• D, Cs, LA or LAL cells
• 4-year design life
• 1-year guarantee
• For battery compatibility refer to table „Battery selection"
È
Standards, page 10
Wiring diagrams and installation examples, page 11
Data sheet 03/20-EM042-21
Subject to change without notice. Information provided without guarantee.
Emergency lighting units
EM powerLED
EM powerLED BASIC FX SR 50 W
Combined emergency lighting LED Driver
www.tridonic.com
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EM powerLED BASIC FX 103 SR 50W 50V and is the answer not in the manual?

Questions and answers

Related Manuals for Tridonic EM powerLED BASIC FX 103 SR 50W 50V

Summary of Contents for Tridonic EM powerLED BASIC FX 103 SR 50W 50V

  • Page 1 • 4-year design life • 1-year guarantee • For battery compatibility refer to table „Battery selection“ È Standards, page 10 Wiring diagrams and installation examples, page 11 Data sheet 03/20-EM042-21 www.tridonic.com Subject to change without notice. Information provided without guarantee.
  • Page 2 Max. casing temperature tc 80 °C EM powerLED BASIC FX 103 SR 50W 50V 89800430 1/3 h 10 pc(s). 400 pc(s). 0.29 kg Dimensions LxBxH 209 x 82 x 34 mm EM powerLED BASIC FX 104 SR 50W 50V 89800412 1/3 h 10 pc(s).

  • Page 3: Specific Technical Data

    104 SR 50W 50V Ambient temperature range ta defined in normal operation Output voltage range defined in normal operation. LED forward voltage will decrease in CF operation. EM = Emergency Data sheet 03/20-EM042-21 www.tridonic.com Subject to change without notice. Information provided without guarantee.

  • Page 4: Product Description

    Article number carton per pc. LED EM green 89899605 25 pc(s). 200 pc(s). 0.011 kg LED EM green, ultra high brightness 89899756 25 pc(s). 200 pc(s). 0.012 kg Data sheet 03/20-EM042-21 www.tridonic.com Subject to change without notice. Information provided without guarantee.
  • Page 5 28002214 70 x 36.5 x 24.5 mm 5 pc(s). 0.040 kg smartSWITCH HF 5DP S f 28002235 58 x 48.5 x 24.5 mm 5 pc(s). 0.040 kg Data sheet 03/20-EM042-21 www.tridonic.com Subject to change without notice. Information provided without guarantee.
  • Page 6 2.20 kΩ 10 pc(s). 0.001 kg I-SELECT PLUG E 28001154 Green 1.50 kΩ 10 pc(s). 0.001 kg I-SELECT PLUG E 28000612 Green 0 kΩ 10 pc(s). 0.001 kg Data sheet 03/20-EM042-21 www.tridonic.com Subject to change without notice. Information provided without guarantee.
  • Page 7 5 pc(s). 0.534 kg • 1.0 mm² solid wire, pre-stripped Pack-NiCd 4D CON 89800390 5 pc(s). 0.661 kg • Suitable for emergency lighting equipment as per IEC 60598-2-22 Data sheet 03/20-EM042-21 www.tridonic.com Subject to change without notice. Information provided without guarantee.
  • Page 8 0.36 kg Battery pack 4.0 Ah Pack-NiMH 4Ah 3 CON 28001896 5 pc(s). 25 pc(s). 0.40 kg Pack-NiMH 4Ah 4 CON 28001897 5 pc(s). 25 pc(s). 0.48 kg Data sheet 03/20-EM042-21 www.tridonic.com Subject to change without notice. Information provided without guarantee.
  • Page 9 • Glow-wire test with a temperature of 850 °C passed ø ø ø ø Ordering data Article Type Colour Packaging carton Weight per pc. number ACD EM LED INDICATOR HOLDER 28002189 White 10 pc(s). 0.010 kg Data sheet 03/20-EM042-21 www.tridonic.com Subject to change without notice. Information provided without guarantee.

  • Page 10: Thermal Data

    > 100,000 h > 100,000 h 69 °C 79 °C 40 W life-time > 100,000 h 90,000 h 76 °C 50 W life-time 95,000 h x = not permitted Data sheet 03/20-EM042-21 www.tridonic.com Subject to change without notice. Information provided without guarantee.

  • Page 11: Installation & Wiring

    Wiring diagram EM powerLED BASIC FX with sensor 220–240 V 220–240 V 50/60 Hz 50/60 Hz L´ L link L link EM powerLED EM powerLED Tridonic Sensor BASIC FX BASIC FX Duration link Duration link Orange Orange Indication LED Indication LED –...

  • Page 12: Mechanical Data

    8.0 mm stripped insulation Two-piece batteries are supplied with a 200 mm lead with 4.8 mm receptacle at each end and insulting covers to connect the separate sticks together. Data sheet 03/20-EM042-21 www.tridonic.com Subject to change without notice. Information provided without guarantee.

  • Page 13: Electrical Data

    2.5 mm 1.5 mm 1.5 mm 2.5 mm 2.5 mm time EM powerLED BASIC FX 103 SR 50W 50V 6.6 A 30 μs EM powerLED BASIC FX 104 SR 50W 50V 6.6 A 30 μs 5.2 Harmonic distortion in the mains supply (at 230 V / 50 Hz and full load) in %...
  • Page 14 Resistor power has to be ≥ 0. 1 W. Resistor detection at each start. Change of the resistor value during the operation will be not considered. Resistors for the main output current values can be ordered from Tridonic (see accessories). Data sheet 03/20-EM042-21 www.tridonic.com...

  • Page 15: Overload Protection

    Note: LED Driver supplied with duration link in 3 hours position. Remove duration link for 1 hour duration. Duration link and I-SELECT PLUG must be set before battery and mains connection. Data sheet 03/20-EM042-21 www.tridonic.com Subject to change without notice. Information provided without guarantee.

  • Page 16: Battery Data

    1 x 3 Pack-NiMH 4Ah 3 CON 28001896 • NiMH 4 Ah LAL cells remote box 1 x 4 Pack-NiMH 4Ah 4 CON 28001897 • Data sheet 03/20-EM042-21 www.tridonic.com Subject to change without notice. Information provided without guarantee.
  • Page 17 4.5 Ah Battery voltage/cell 1.2 V 8.2 Additional information Cell type Additional technical information at www.tridonic.com → Technical Data Ambient temperature range to ensure 4 years design life +5 °C to +40 °C Guarantee conditions at www.tridonic.com → Services tc point +45 °C...
