Tridonic Excite Series Manual

Led driver
Hide thumbs Also See for Excite Series:

Advertisement

Quick Links

Download this manual

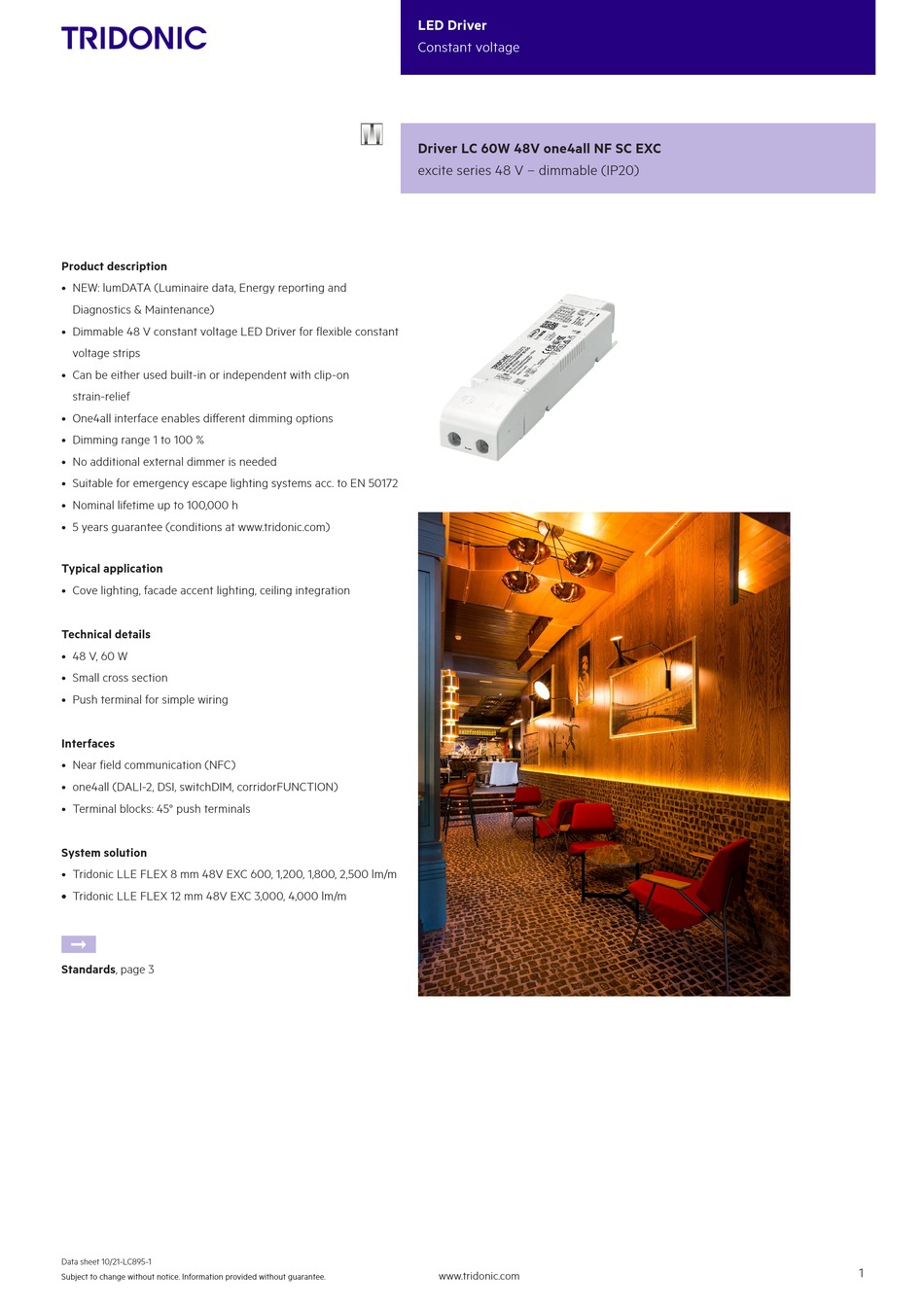

Product description
• NEW: lumDATA (Luminaire data, Energy reporting and
Diagnostics & Maintenance)
• Dimmable 48 V constant voltage LED Driver for flexible constant
voltage strips
• Can be either used built-in or independent with clip-on
strain-relief
• One4all interface enables different dimming options
• Dimming range 1 to 100 %
• No additional external dimmer is needed
• Suitable for emergency escape lighting systems acc. to EN 50172
• Nominal lifetime up to 100,000 h
• 5 years guarantee (conditions at www.tridonic.com)
Typical application
• Cove lighting, facade accent lighting, ceiling integration
Technical details
• 48 V, 60 W
• Small cross section
• Push terminal for simple wiring
Interfaces
• Near field communication (NFC)
• one4all (DALI-2, DSI, switchDIM, corridorFUNCTION)
• Terminal blocks: 45° push terminals
System solution
• Tridonic LLE FLEX 8 mm 48V EXC 600, 1,200, 1,800, 2,500 lm/m
•
• Tridonic LLE FLEX 12 mm 48V EXC 3,000, 4,000 lm/m
È
Standards, page 3
Data sheet 10/21-LC895-1
Subject to change without notice. Information provided without guarantee.
LED Driver
Constant voltage
Driver LC 60W 48V one4all NF SC EXC
excite series 48 V – dimmable (IP20)
www.tridonic.com
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Excite Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tridonic Excite Series

Summary of Contents for Tridonic Excite Series

  • Page 1 • one4all (DALI-2, DSI, switchDIM, corridorFUNCTION) • Terminal blocks: 45° push terminals System solution • Tridonic LLE FLEX 8 mm 48V EXC 600, 1,200, 1,800, 2,500 lm/m • Tridonic LLE FLEX 12 mm 48V EXC 3,000, 4,000 lm/m • È...
  • Page 2 LED Driver Constant voltage Driver LC 60W 48V one4all NF SC EXC excite series 48 V – dimmable (IP20) Technical data Rated supply voltage 220 – 240 V AC voltage range 198 – 264 V DC voltage range 176 – 280 V...

  • Page 3: Installation & Wiring

    8.5 – 9.5 mm. wire preparation: 0.2 – 1.5 mm² LC 60W 48V SC EXC + LED 8.5 – 9.5 mm – LED DA/N DA/L switchDIM 220–240 V 50/60 Hz Data sheet 10/21-LC895-1 www.tridonic.com Subject to change without notice. Information provided without guarantee.
  • Page 4 In general it is recommended to earth the LED Driver if the LED module is mounted on earthed luminaire parts respectively heat sinks and thereby representing a high capacity against earth. Data sheet 10/21-LC895-1 www.tridonic.com Subject to change without notice. Information provided without guarantee.

  • Page 5: Electrical Values

    4.5 THD vs. Load THD without harmonic < 5 mA (0.6 %) of the input current: Load [%] 4.3 Input power vs. Load Load [%] Load [%] Data sheet 10/21-LC895-1 www.tridonic.com Subject to change without notice. Information provided without guarantee.
  • Page 6 After programming the device via NFC power up the device one time for one second till the deviceANALYSER can read out the parameters. We recommend the use of following NFC antenna: www.tridonic.com/nfc-readers NFC is complied with ISO/IEC 15963 standard. Relative lighting level % 5.3 Control input DALI...
  • Page 7 LED Driver Constant voltage 6. Functions  companionSUITE: DALI-USB, NFC The companionSUITE with deviceGENERATOR, deviceCONFIGURATOR and deviceANALYSER is available via our WEB page: https://www.tridonic.com/com/en/products/companionsuite.asp  masterCONFIGURATOR: DALI-USB The masterCONFIGURATOR is available via our WEB page: https://www.tridonic.com/com/en/software-masterconfigurator.asp Icon Function OEM Identification ...
  • Page 8 6.4 Device operating mode A Tridonic Driver supports several control signals. These control signals are automatically detected and the mode is adapted. If only one special device mode is required, this mode can be selected.
  • Page 9 This value applies not only in DALI device operating mode, but also in the 6.15 deviceKEY device operating mode switchDIM. This function enables a password protection for device settings to prevent unauthorized access or changes. Data sheet 10/21-LC895-1 www.tridonic.com Subject to change without notice. Information provided without guarantee.

  • Page 10: Protective Features

    (DALI, DSI, switchDIM, 7.4 Additional information ready2mains) Additional technical information at www.tridonic.com → Technical Data 7.4 No-load operation Lifetime declarations are informative and represent no warranty claim. No warranty if device was opened.
