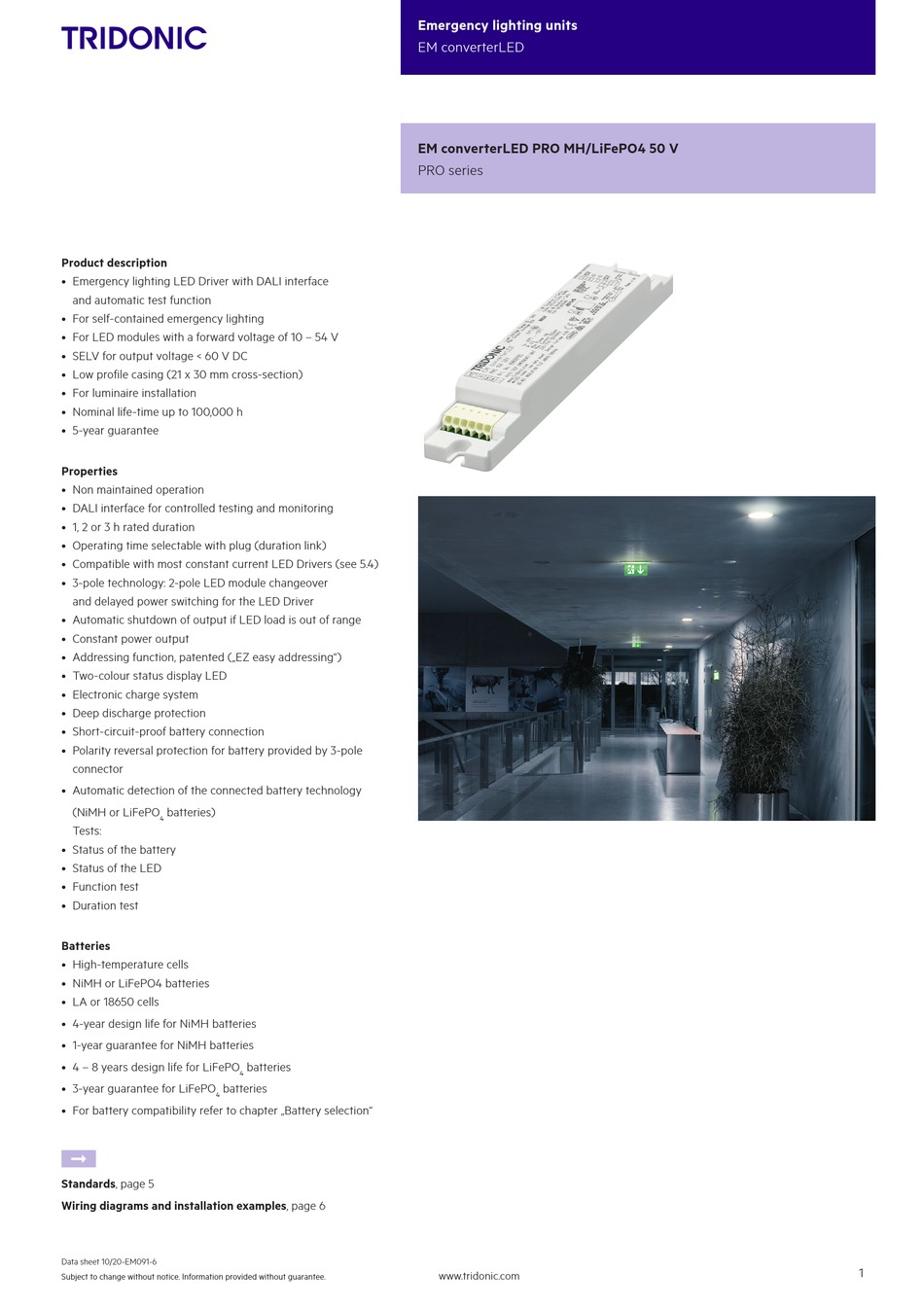

Product description
• Emergency lighting LED Driver with DALI interface
and automatic test function
• For self-contained emergency lighting
• For LED modules with a forward voltage of 10 – 54 V
• SELV for output voltage < 60 V DC
• Low profile casing (21 x 30 mm cross-section)
• For luminaire installation
• Nominal life-time up to 100,000 h
• 5-year guarantee
Properties
• Non maintained operation
• DALI interface for controlled testing and monitoring
• 1, 2 or 3 h rated duration
• Operating time selectable with plug (duration link)
• Compatible with most constant current LED Drivers (see 5.4)
• 3-pole technology: 2-pole LED module changeover
and delayed power switching for the LED Driver
• Automatic shutdown of output if LED load is out of range
• Constant power output
• Addressing function, patented („EZ easy addressing")
• Two-colour status display LED
• Electronic charge system
• Deep discharge protection
• Short-circuit-proof battery connection
• Polarity reversal protection for battery provided by 3-pole
connector
• Automatic detection of the connected battery technology
(NiMH or LiFePO
batteries)
4
Tests:
• Status of the battery
• Status of the LED
• Function test
• Duration test
Batteries
• High-temperature cells
• NiMH or LiFePO4 batteries
• LA or 18650 cells
• 4-year design life for NiMH batteries
• 1-year guarantee for NiMH batteries
• 4 – 8 years design life for LiFePO
• 3-year guarantee for LiFePO
batteries
4
• For battery compatibility refer to chapter „Battery selection"
È
Standards, page 5
Wiring diagrams and installation examples, page 6
Data sheet 10/20-EM091-6
Subject to change without notice. Information provided without guarantee.
batteries
4
Emergency lighting units
EM converterLED
EM converterLED PRO MH/LiFePO4 50 V
PRO series
www.tridonic.com
1
Advertisement
Table of Contents
Related Manuals for Tridonic PRO Series
Summary of Contents for Tridonic PRO Series
- Page 1 Emergency lighting units EM converterLED EM converterLED PRO MH/LiFePO4 50 V PRO series Product description • Emergency lighting LED Driver with DALI interface and automatic test function • For self-contained emergency lighting • For LED modules with a forward voltage of 10 – 54 V •...
-
Page 2: Pro Series
Emergency lighting units EM converterLED EM converterLED PRO MH/LiFePO4 50 V PRO series Technical data Rated supply voltage 220 – 240 V AC voltage range 198 – 264 V Mains frequency 50 / 60 Hz LED module forward voltage range 10 –... -
Page 3: Product Description
LED EM bi-colour, 0.3 m CON 89800274 25 pc(s). 200 pc(s). 0.005 kg LED EM bi-colour, high brightness HO 0.3 m CON 89800276 25 pc(s). 200 pc(s). 0.005 kg Data sheet 10/20-EM091-6 www.tridonic.com Subject to change without notice. Information provided without guarantee. - Page 4 • 2-pole plug connection for batteries and 3-pole plug connection for LED Driver Ordering data Packaging, Packaging, Weight Type Article number carton per pc. CONNECTION CABLE NiMH 500mm 28002462 10 pc(s). 200 pc(s). 0.015 kg Data sheet 10/20-EM091-6 www.tridonic.com Subject to change without notice. Information provided without guarantee.
-
Page 5: Installation & Wiring
70,000 h EM converterLED PRO 204 65 °C 70 °C 75 °C 80 °C MH/LiFePO4 50V life-time > 100,000 h > 100,000 h 96,000 h 68,000 h Data sheet 10/20-EM091-6 www.tridonic.com Subject to change without notice. Information provided without guarantee. - Page 6 Neutral max. 150 W in operation – – One LED module is operated in emergency mode. LED Module All LED modules are operated in mains mode. – Data sheet 10/20-EM091-6 www.tridonic.com Subject to change without notice. Information provided without guarantee.
- Page 7 When using an EM converterLED in combination with a NiMH battery, order the CONNECTION CABLE NiMH 500mm seperately. LiFePO : Direct connection LiFePO : Connection with extension EM converterLED EM converterLED Battery Battery Data sheet 10/20-EM091-6 www.tridonic.com Subject to change without notice. Information provided without guarantee.
-
Page 8: Mechanical Values
EM converterLED leads is added to the length of the leads from the LED Driver to the EM converterLED module when considering max. permitted lead length of the LED Driver. Leads should always be kept as short as possible. Data sheet 10/20-EM091-6 www.tridonic.com Subject to change without notice. Information provided without guarantee. -
Page 9: Electrical Values
When using a non-SELV LED Driver insulate the battery, LED, test switch and indicator LED in the luminaire according to the U-OUT rating of the LED Driver. Data sheet 10/20-EM091-6 www.tridonic.com Subject to change without notice. Information provided without guarantee. - Page 10 1,255 – 1,350 mA battery discharge current (tolerance) LED current at nominal battery voltage and min. battery discharge current LED current at nominal battery voltage and max. battery discharge current Data sheet 10/20-EM091-6 www.tridonic.com Subject to change without notice. Information provided without guarantee.
-
Page 11: Dali Control
LEDs will be switched off and the indication LED will flash the 6 bit binary address preceded by a 3 second start indication period. Data sheet 10/20-EM091-6 www.tridonic.com Subject to change without notice. Information provided without guarantee. - Page 12 DALI controller. The default setting is a 5 seconds test on a weekly basis. DALI controllers and hardware/software solutions are available from Tridonic. Please refer to the Lighting controls section. Duration test The time of day and frequency of the duration test can be set by the DALI controller.
-
Page 13: Battery Data
The battery will be charged below 0. 9 V. The EM converterLED will indicate a battery fault. The emergency lighting LED Driver will recharge the battery normally after running the test of 61347-2-7 CL 22.3 (abnormal operating conditions). Data sheet 10/20-EM091-6 www.tridonic.com Subject to change without notice. Information provided without guarantee. - Page 14 +60 °C. The discharging of the battery is still possible to guarantee emergency at +5 °C to +25 °C operation. Only use Tridonic batteries. 7.6 Storage, installation and commissioning Comply with UN 38.3 and IEC 62133 (safety testing) protected against over...
- Page 15 Battery fault is safely recorded by the EM converterLED Connection of new battery is recorded by the EM converterLED 8.4 Additional information Additional technical information at www.tridonic.com → Technical Data Guarantee conditions at www.tridonic.com → Services Life-time declarations are informative and represent no warranty claim.
