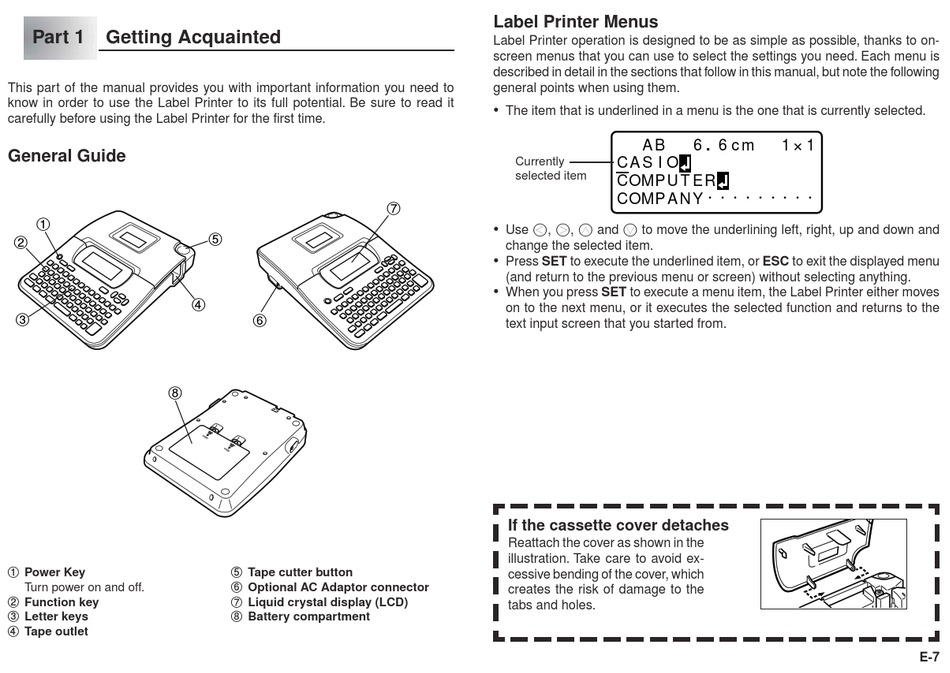

Part 1
Getting Acquainted
This part of the manual provides you with important information you need to
know in order to use the Label Printer to its full potential. Be sure to read it
carefully before using the Label Printer for the first time.

General Guide

1
2
3
8
1 Power Key
Turn power on and off.
2 Function key
3 Letter keys
4 Tape outlet
5
4
6
5 Tape cutter button
6 Optional AC Adaptor connector
7 Liquid crystal display (LCD)
8 Battery compartment

Label Printer Menus

Label Printer operation is designed to be as simple as possible, thanks to on-
screen menus that you can use to select the settings you need. Each menu is
described in detail in the sections that follow in this manual, but note the following
general points when using them.
• The item that is underlined in a menu is the one that is currently selected.
Currently
selected item
7
• Use c, v, x and z to move the underlining left, right, up and down and
change the selected item.
• Press SET to execute the underlined item, or ESC to exit the displayed menu
(and return to the previous menu or screen) without selecting anything.
• When you press SET to execute a menu item, the Label Printer either moves
on to the next menu, or it executes the selected function and returns to the
text input screen that you started from.
If the cassette cover detaches
Reattach the cover as shown in the
illustration. Take care to avoid ex-
cessive bending of the cover, which
creates the risk of damage to the
tabs and holes.
.
A B
6
6 c m
1 1
C A S I O
COMP U T E
R
COMP A N Y
·
·
·
·
·
·
·
·
·
E-7
