5. Connection Diagram

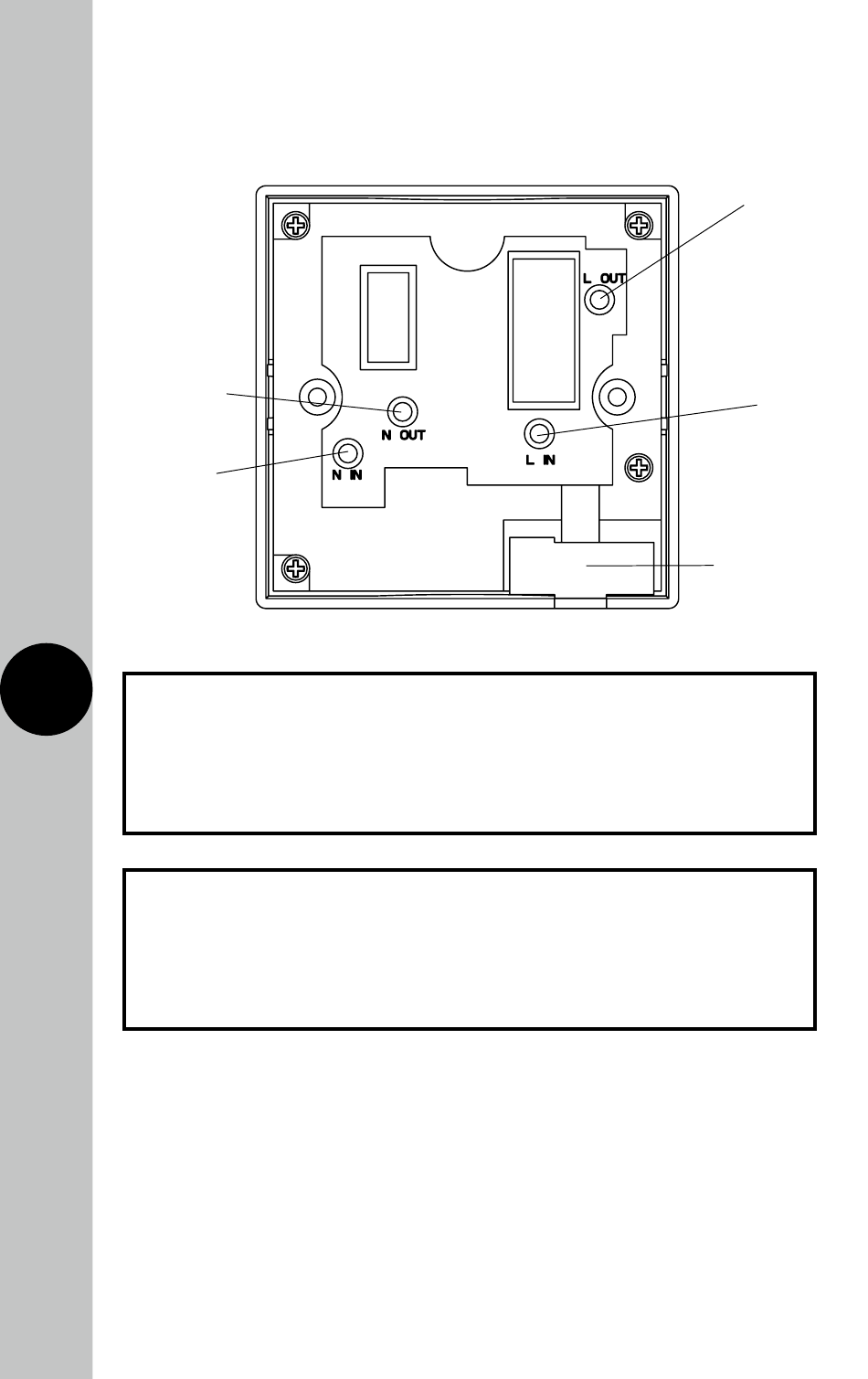

The terminals are marked as follows on the rear of the boost timer;
Example
Neutral out
Neutral in
4
Mains Supply
Live (Brown or Red) to
Neutral (Blue or Black) to
Load
Switch Live (Brown or Red) to
Neutral (Blue or Black) to
L IN
N IN
L OUT
N OUT
Live out
Live in
Cord grip/
blanking plate
fixing screw
holes
