Timeguard TS830 Setting Instructions

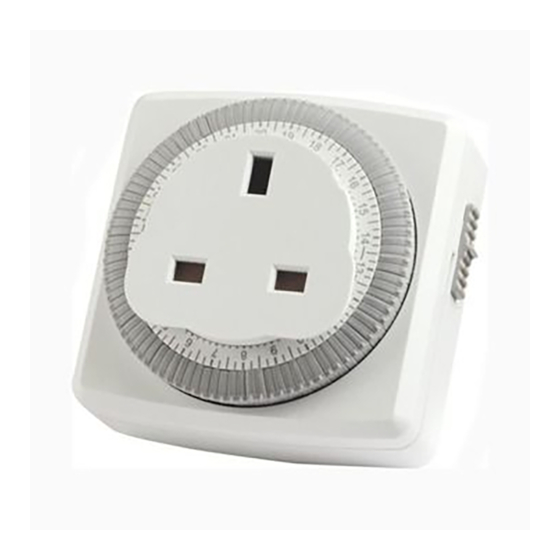

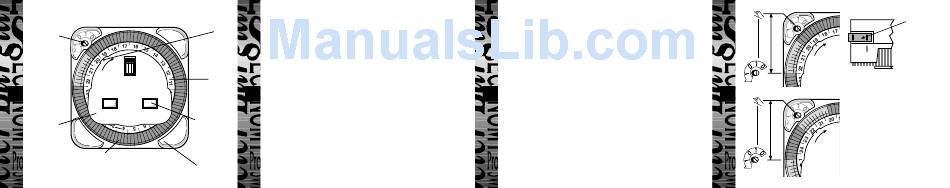

TS830 24 Hour Segment Timeswitch
Switching
indicator &
self-cancelling
override
1=ON
0=OFF
1
Protective
lobes
Time control segments 1 tappet = 15 minutes
Push towards programme ring = ON
Push away from programme ring = OFF retardant casing
Setting Instructions
Turn the segment dial clockwise until the correct time of day is
Time
showing directly above the time indicator (the illustration shows
indicator
19.30 hours).
Decide what time you would like the time controller to switch
your appliance ON and OFF. Simply push the segment tappets
24 hour
towards the time ring to set your ON times and away from the
programme
2
time ring for your OFF times. (The illustration above shows the
ring
time controller set to switch ON at 20.00 hours and OFF at 22.30
hours). These settings automatically operate the switching
Front socket
indicator when the time controller is in its operating condition.
face
The switching indicator will show the switching condition
1=ON. 0= OFF. Minimum setting intervals = 15 minutes (one
tappet segment).Minimum time between settings = 15 minutes.
Tough flame
Check your programme by manually turning the segment dial
through a 24 hour cycle. Remember to re-set the dial back to the
correct time of day. Simply plug the time controller into a socket
and plug the appliance into the time controller. Switch on the
socket and the appliance. The time controller is now in its
operating condition.
Manual Override
3
You can switch your appliance ON and OFF at any time by
using the self-cancelling switching rider on the top left of the
unit. Simply turn anti-clockwise so the switching indicator on
the front of the unit is positioned to either the 1=ON or 0=OFF
position as illustrated. The override automatically cancels when
the next ON/OFF programme operates.
ON
Switching ON before selected time
4
OFF
Switching OFF before selected time
Switching
rider
