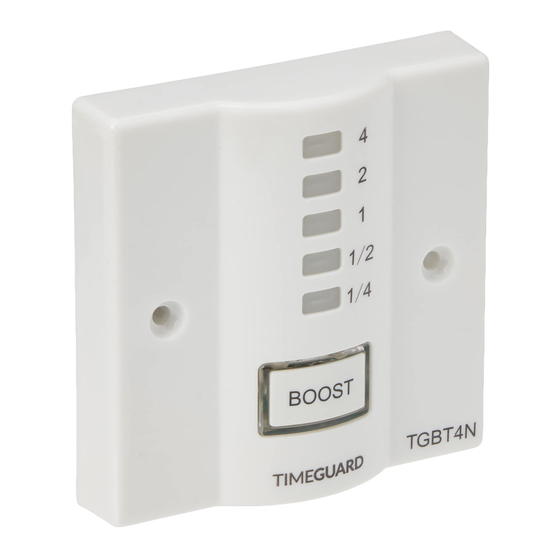

- Page 1 4 Hour Electronic Boost Timer Model No. TGBT4N...
-
Page 2: General Information
1. General Information These instructions should be read carefully and retained for further reference and maintenance. 2. Safety • Before installation or maintenance, ensure the mains supply to the boost timer is switched off and the circuit supply fuses are removed or the circuit breaker turned off. - Page 3 Also available in the Boost timer range: • TGBT6 2 hour plug-in boost timer. • FBT4N 4 hour fused spur boost timer. Example Boost time LED’s BOOST Boost Button...
-
Page 4: Installation
4. Installation Note : The installation of this electronic time delay switch should be protected by a suitable fuse or breaker of up to 13A rating. • Ensure the mains supply is switched off and the circuit supply fuses are removed or the circuit breaker turned off. •... -
Page 5: Connection Diagram
5. Connection Diagram The terminals are marked as follows on the rear of the boost timer; Example Live out Neutral out Live in Neutral in Cord grip/ blanking plate fixing screw holes Mains Supply L IN Live (Brown or Red) to N IN Neutral (Blue or Black) to Load... -
Page 6: Operation
6. Operation • The required boost time is selected by pressing the button marked boost, repeatedly. The LEDs adjacent to the time markers will light up in sequence, showing the selected boost period. • The LED’s adjacent to the time markers (above the Boost button) will light up in the sequence;... -
Page 7: Year Guarantee
first year telephone the helpline on 020 8450 0515. Note: A proof of purchase is required in all cases. For all eligible replacements (where agreed by Timeguard) the customer is responsible for all shipping/postage charges outside of the UK. All shipping costs... - Page 8 Note: If you have any concerns that the intended application of this product does not meet your requirements, please contact Timeguard directly prior to installation. If you experience problems, do not immediately return the unit to the store. Telephone the Timeguard Customer Helpline;...
