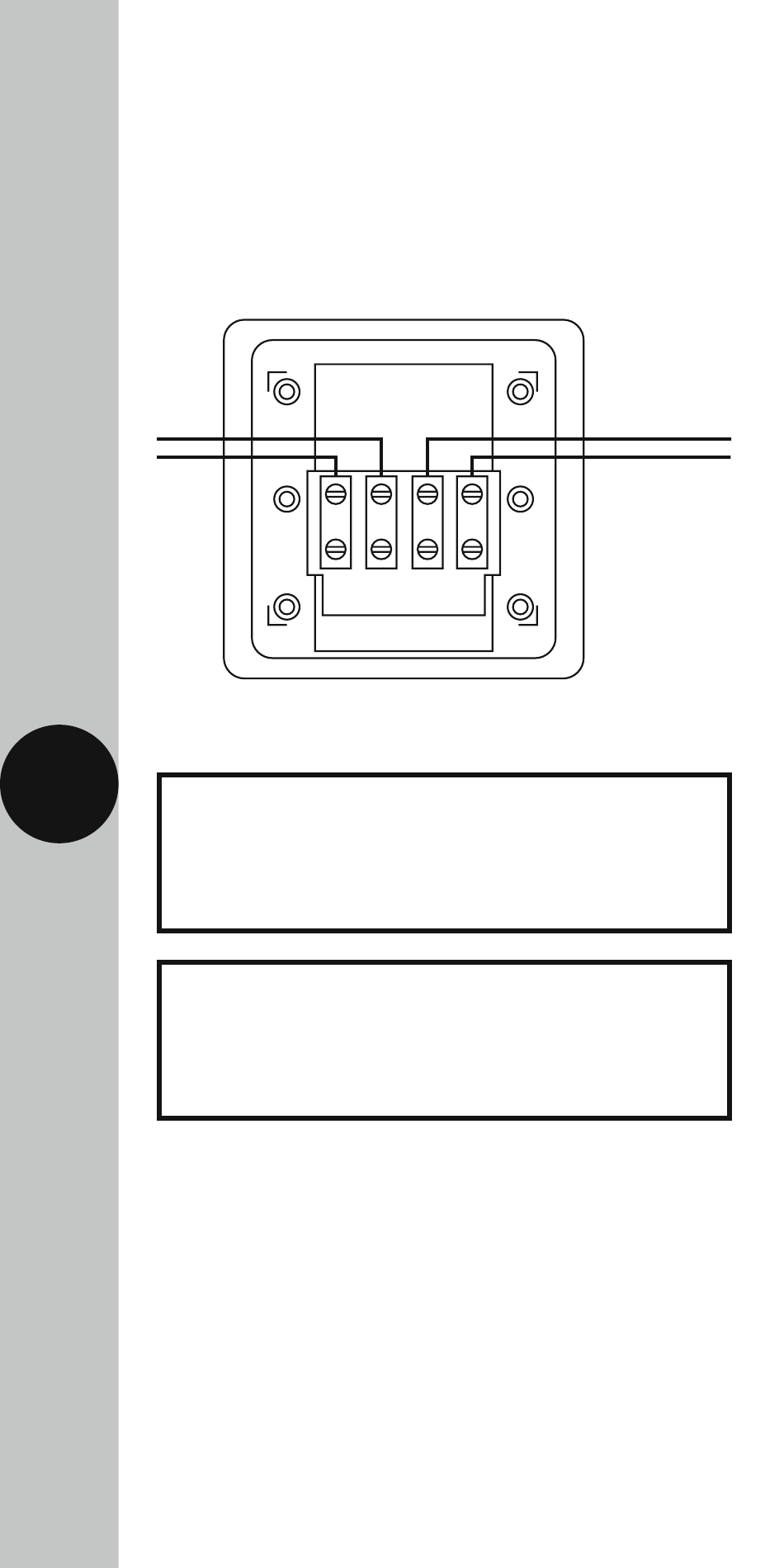

5. Connection Diagram

• The terminals are marked as follows
NTT03 – 230V Mains Voltage Switching
Load
4
230V 50Hz Mains Supply
Live (Brown or Red) to
Neutral (Blue or Black) to
Load
Switch Live (Brown or Red) to
Neutral (Blue or Black) to
Note: this device needs to be left to charge for
a minimum of 15 minutes once powered up,
before it will operate.
on the rear of the wall plate;
SL
Load
N N L
OUT
Load
SL N N L
230V 50Hz
OUT
Mains Supply
L
N
SL
N OUT
