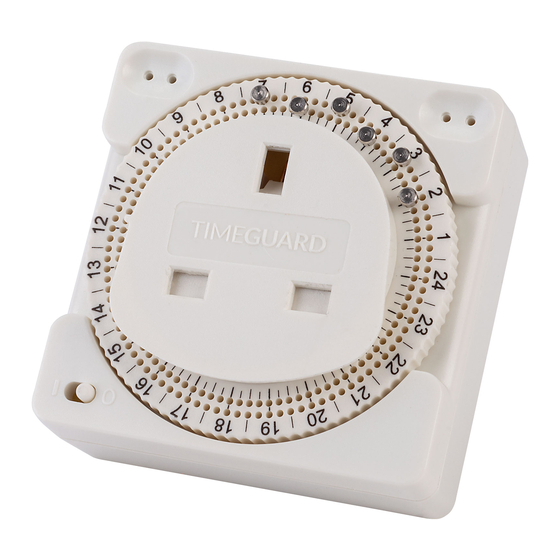

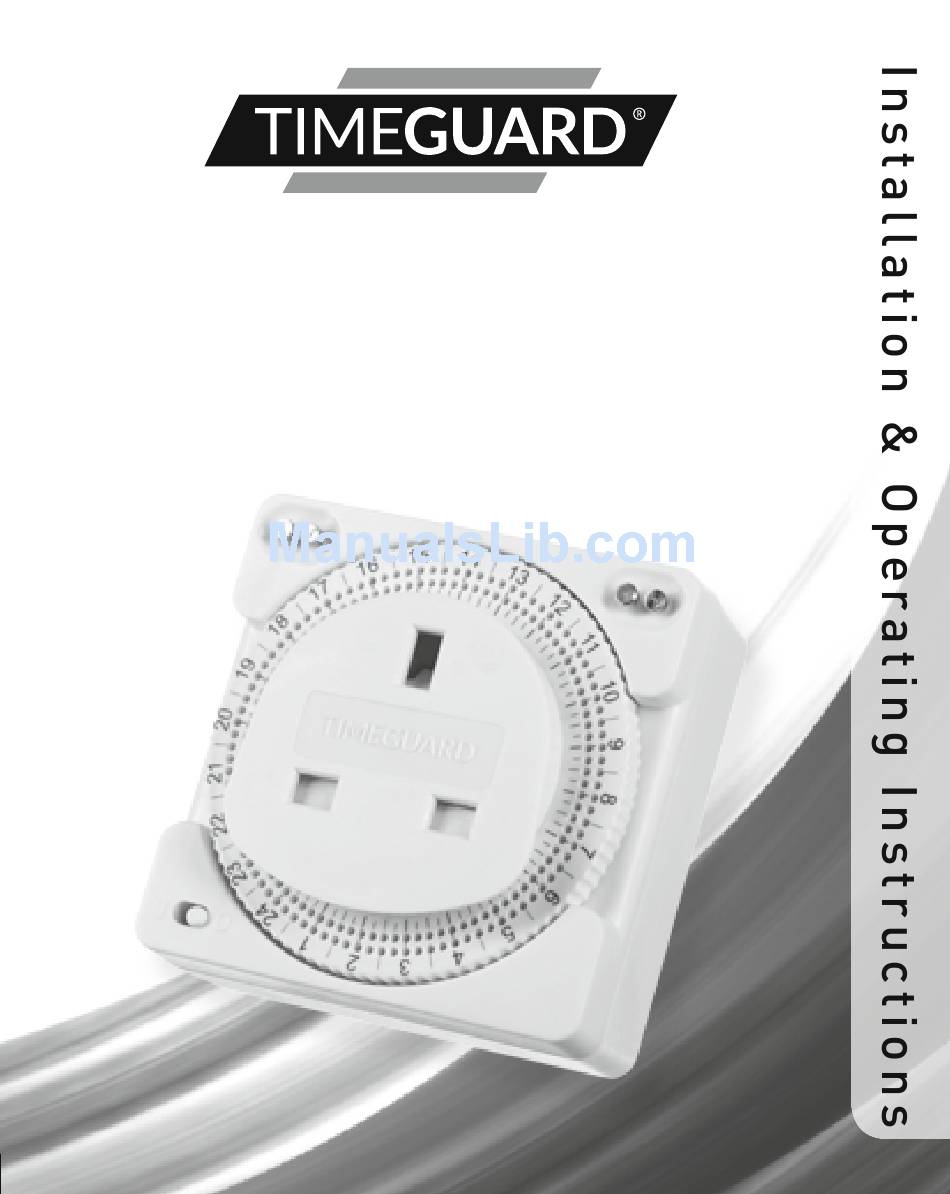

- Page 1 24 Hour Plug-In Time Controller Model: TS800N...
-
Page 2: General Information
1. General Information These instructions should be read carefully and retained for further reference and maintenance. 2. Safety • Do not plug in any appliance that exceeds the capacity of the Timer. • Always ensure the plug of any appliance is fully inserted into the timer outlet. -
Page 3: Technical Specifications
3. Technical Specifications • 230V AC 50 Hz • Switch Rating: 13A resistive (3kW) 400W Filament Lighting 60W Fluorescent/ CFL and LED Lighting • Programme: 24 hour • Minimum setting interval: 15 minutes • Minimum ON/OFF time between setting: 30 minutes •... - Page 4 Note: Not suitable for use with Discharge lighting. • Certain washing machines require the power to be permanently connected so they cannot be controlled by the TS800N. This is also true of tumble dryers with push button start. Diagram A Setting...
-
Page 5: Operation
4. Operation • Decide what times you would like the time switch to switch ON and OFF. • Insert a pin in the Inner Circle for an ON period. • Insert a pin in the Outer Circle for an OFF period. Important: The pins should be pushed fully home or they will catch on the underside of the protective lobes on the bottom of the... -
Page 6: Manual Override
Manual Override • It is possible to manually override the programmed time by operating the override switch located in the bottom left hand corner of the plug-in timer. • 1 = ON. O = OFF. • If you use the manual override it will self-cancel at the next programmed time. -
Page 7: Year Guarantee
020 8450 0515. Note: A proof of purchase is required in all cases. For all eligible replacements (where agreed by Timeguard) the customer is responsible for all shipping/postage charges outside of the UK. All shipping costs are to be paid in... - Page 8 If you experience problems, do not immediately return the unit to the store. Telephone the Timeguard Customer Helpline; HELPLINE 020 8450 0515 or email helpline @ timeguard.com Qualified Customer Support Co-ordinators will be on-line to assist in resolving your query.
