2&4 hour boost timer

Advertisement

Electronic Boost Timer
& Fused Spur

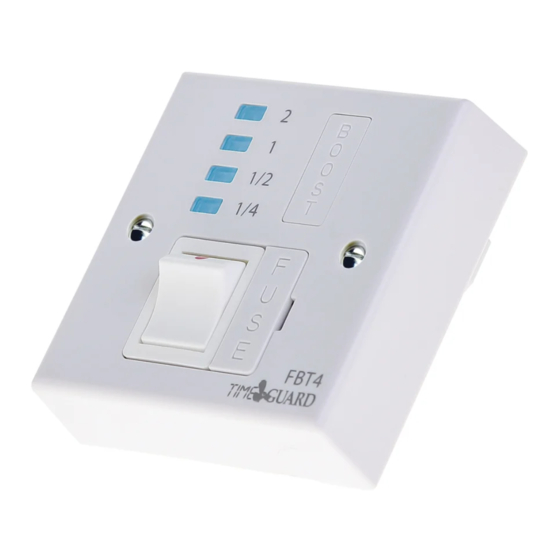

Model: FBT4 – 2 Hour Boost Timer
Model: FBT5 – 4 Hour Boost Timer

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FBT4 and is the answer not in the manual?

Questions and answers

Summary of Contents for Timeguard FBT4

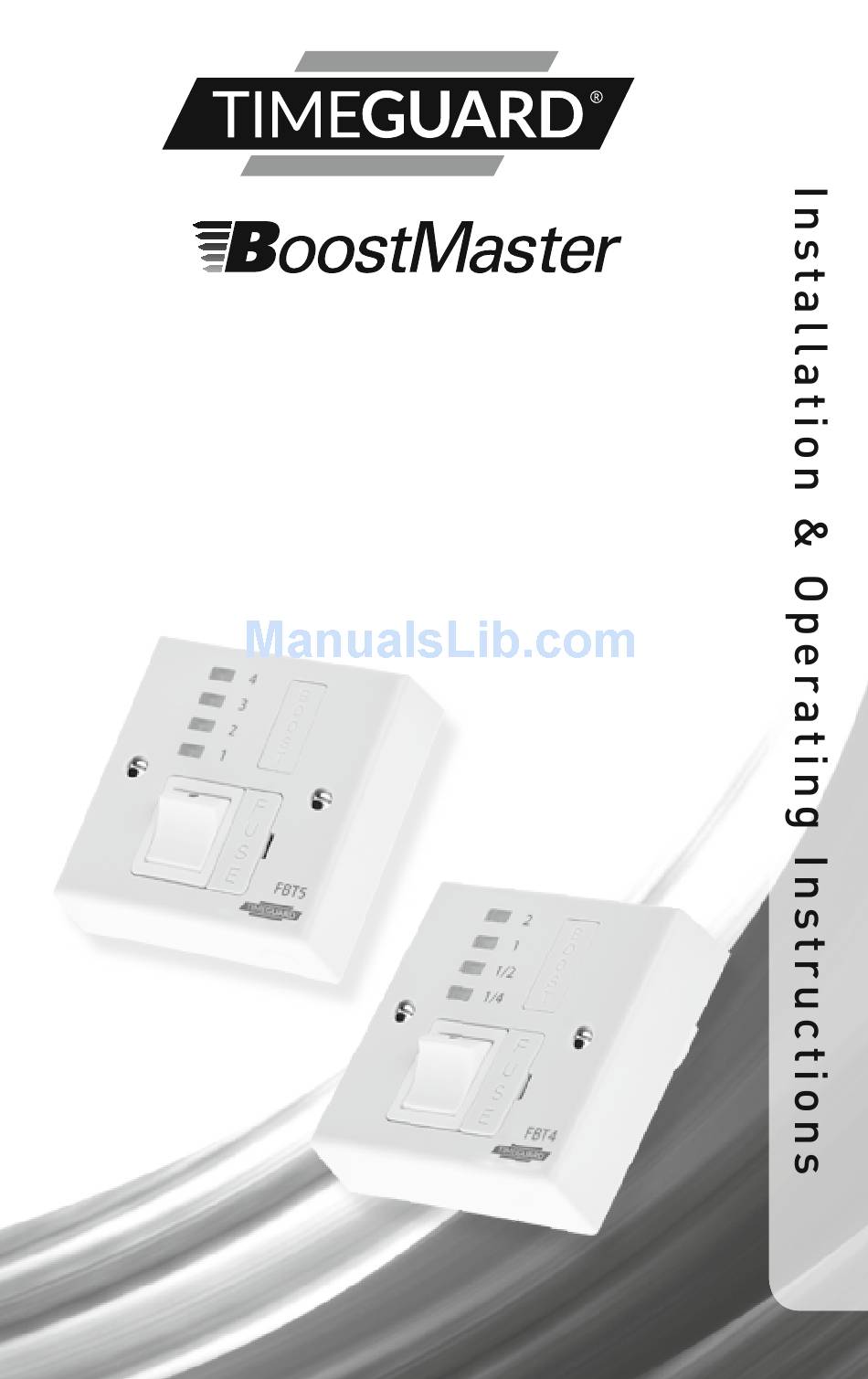

  • Page 1 Electronic Boost Timer & Fused Spur Model: FBT4 – 2 Hour Boost Timer Model: FBT5 – 4 Hour Boost Timer...
  • Page 2: General Information

    100W Compact Fluorescent lighting • Contact Type: Normally Open • Minimum Depth of Wall Box: 25mm • Boost Times: FBT4 ¼, ½, 1, 2 hours FBT5 1, 2, 3, 4 hours • Operating Temperature: 0°C to +40°C • CE Approved •...
  • Page 3: Installation

    Boost time Boost button indicator LEDs BS 1362 Double (1"x ") pole switch fuse 4. Installation • Ensure the mains supply is switched off and the circuit supply fuses are removed or the circuit breaker turned off. • Connect the incoming 230V 50Hz supply and outgoing load cables to the relevant terminals ensuring correct polarity is observed and that all bare conductors are sleeved (see section 5.
  • Page 4: Connection Diagram

    5. Connection Diagram The terminals are marked as follows on the rear of the boost timer; Supply neutral terminal Supply live terminal Switched neutral terminal (load neutral Switched live connection) terminal (load live connection) Loop terminal for earth continuity Supply L IN Live (Brown or Red) to N IN...
  • Page 5: Operation

    The LEDs adjacent to the time markers will light up in sequence, showing the selected boost period. • Sequence below is for the FBT4 (For the FBT5 substitute the stated times for 1 hour, 2 hour, 3 hour and 4 hour);...
  • Page 6 7. Stopping or Increasing Boost • During the first 15 seconds of activating the boost timer, it can be stopped by pressing the boost button repeatedly until all the LEDs are off. • It can also be stopped during this time period, by holding down the boost button until all the LEDs are off.
  • Page 7: Year Guarantee

    020 8450 0515. Note: A proof of purchase is required in all cases. For all eligible replacements (where agreed by Timeguard) the customer is responsible for all shipping/postage charges outside of the UK. All shipping costs...
  • Page 8 If you experience problems, do not immediately return the unit to the store. Telephone the Timeguard Customer Helpline; HELPLINE 020 8450 0515 or email helpline @ timeguard.com Qualified Customer Support Co-ordinators will be on-line to assist in resolving your query.
