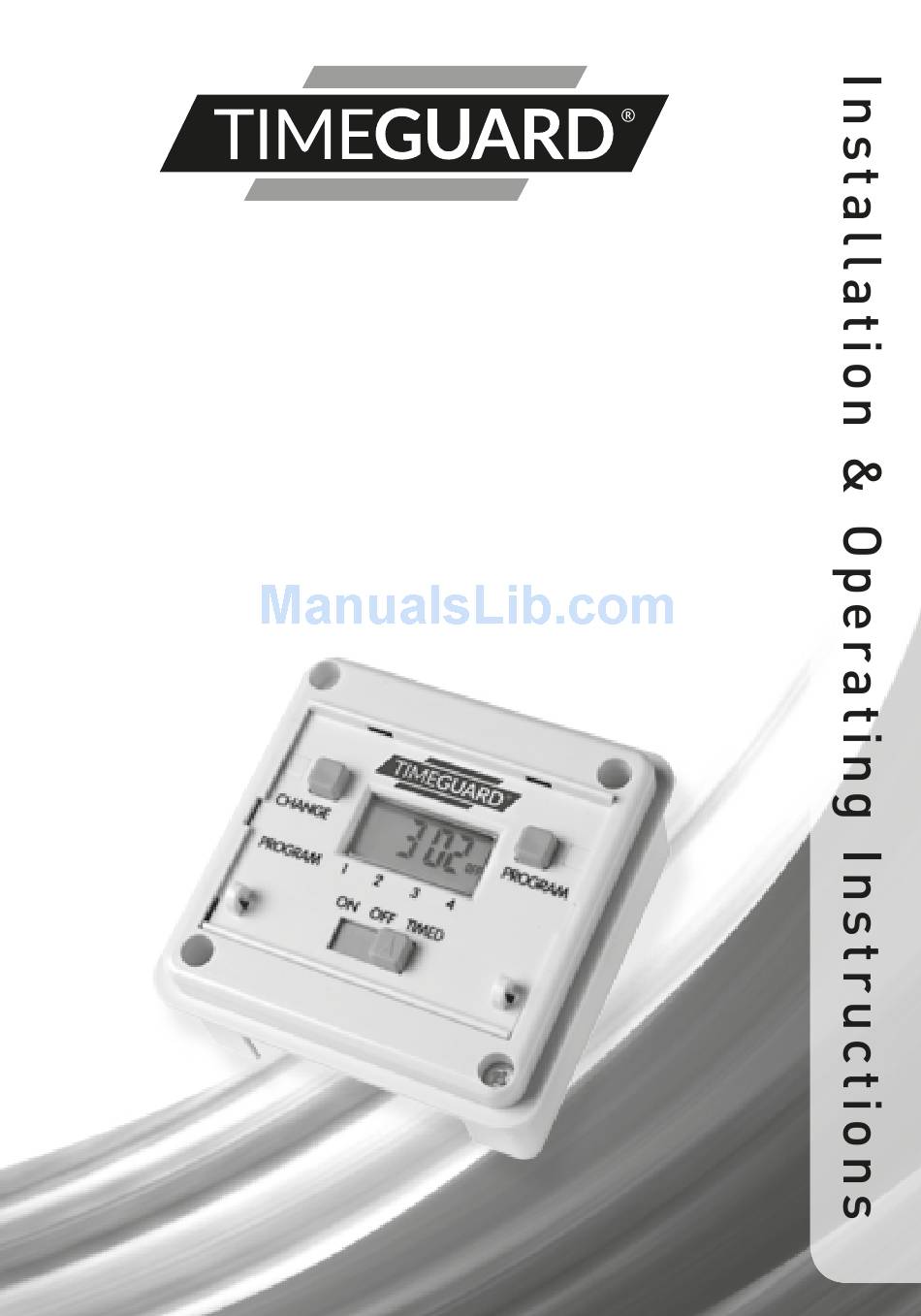

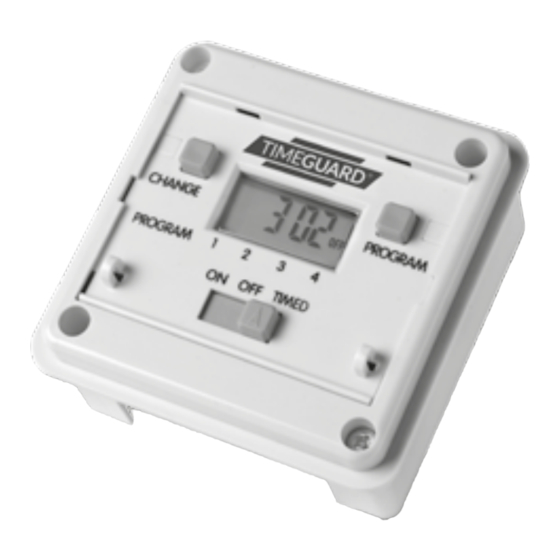

- Page 1 Timer Modules MEU11 – 24 Hour Module, MEU17 – 7 Day Module (Without Housing) EMU11 – 24 Hour Module, EMU17 – 7 Day Module (With Housing – Giving panel mounting facility)
-
Page 2: General Information
1. General Information These instructions should be read carefully and retained for further reference and maintenance. 2. Safety • Before installation or maintenance, ensure the 3V DC supply to the timer module is switched off. • It is recommended that a qualified electrician is consulted or used for the installation of this timer module and install in accordance with the current IEE wiring and Building Regulations. -
Page 3: Installation
MEU11 & EMU11 24 Hour Modules • 24 Hour Time Period – 4 ON/OFF programmes. MEU17 & MEU17 7 Day Modules • 7 Day Time Period – 6 ON/OFF programmes, daily, weekly, weekend or weekday options. 4. Contents • 1x Timer module. -
Page 4: Panel Mounting
Panel Mounting • For panel mounting (in panels up to 7.0mm thick with the cut-out as shown in figure 2) the EMU11/17 should be snapped into the bezel supplied and secured in place by the use of the 2x No. 6 x 3/8 in self-tapping screws provided (as shown in figure 3). -
Page 5: Surface Mounting
5.1 Insert the 2 bolts provided in the locations as shown in figure 4. 5.2 Then insert the 2x No.4 x 5/8 in self-tapping screws into the bolts and engage thread. 5.3 Make connections to the unit by wires terminated in a Molex 4 way 7720 or similar connector from behind the panel. - Page 6 6. Connection (All models) Single Resistor PSU (MEU11 & MEU17 only) Two Resistor PSU – gives Optimum EMC Performance (MEU11 & MEU17 only)
- Page 7 Max 10 mA, 47 V A Molex 7720 4 way connector or similar is recommended. MEU11 and MEU17 – Typical Usage The examples in figs 6, 7 and 8 show the module driving a Shrack 48V relay with power derived from the mains.
- Page 8 220nf capacitor shown and a 1.3W zener must be connected between pins 1 and 2 of the module. In all cases the zener is 47V and its cathode is connected to module pin 2. Capacitor PSU (MEU11 & MEU17 only)
-
Page 9: Programming Instructions
7. Programming Instructions 24 Hour Model Change Programme Button Button used sets Hours to select the and Minute clock time and times and the 4 ON/OFF self cancelling programme override times and to review them once set Output Status Easy view 24 hour digital clock/timer showing unit either display... -
Page 10: Normal Operating Mode
7.1 Programming Overview To enter the programming mode, press and hold the ‘Program’ button for 2 to 3 seconds and then release the button. Only two setting buttons are required during the programming process. The ‘Change’ button is used to set the hours and minutes, the ‘Program’ button is used to move to the next stage of the programming process. - Page 11 7.3 Setting Clock & Programming After Reset • To clear the memory and reset the unit press hold down the ‘Change’ and ‘Program’ button until the display goes blank. • Release both of the buttons. After a few seconds the display will show the clock with the hour digit blinking.
- Page 12 Monday to Friday. 7.4 Programme 1 ON time (7 Day Models Only EMU17 & MEU17) (For EMU11 & MEU11 follow from the next bullet point, programmes will run on a daily Basis) Press the ‘Change’ button to select the appropriate group you require your programme to run for;...
-
Page 13: Program Review
• Press the ‘Change’ button to select the minutes you require for the programme. • Press the ‘Program’ button to confirm the minutes for the ON time and move on to setting programme 2 ON. • Repeat the steps from section 7.4 ‘Programme 1 ON time’... - Page 14 review mode. If any changes are required to the current set programmes press the ‘Change’ button to start programming mode and then follow steps from ‘Programme 1 ON time’. 7.6 Cancelling Programmes To clear all programmes, press and hold down the ‘Change’...
-
Page 15: Year Guarantee
Note: a proof of purchase is required in all cases. For all eligible replacements (where agreed by Timeguard) the customer is responsible for all shipping/postage charges outside of the UK. All shipping costs are to be paid in advance... - Page 16 If you experience problems, do not immediately return the unit to the store. Telephone the Timeguard Customer Helpline; HELPLINE 020 8450 0515 or email helpline @ timeguard.com Qualified Customer Support Co-ordinators will be on-line to assist in resolving your query.
