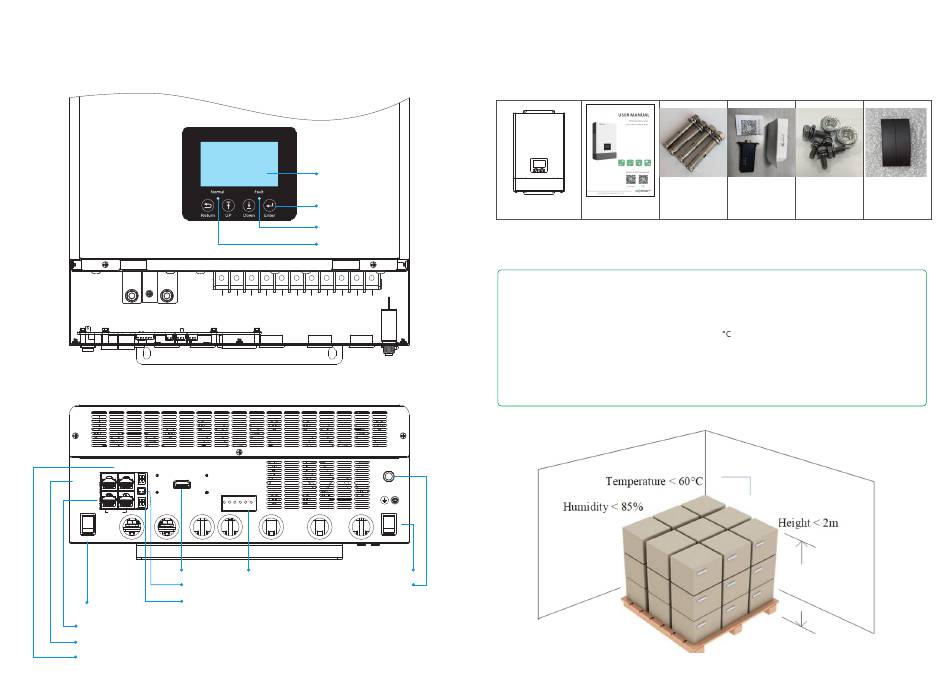

1.2 Interface of the inverter

BAT+ BAT-
P1-485B
P2-485A
WIFI
MPPT485/CT
P4-CANH
P5-CANL
Li-ion
CAN/RS485
NTC
Parallel
BAT+ BAT-
OFF
ON
EPS Output
WiFi/GPRS
Acid NTC port
Parallel communication Resistor switch
EPS on/off switch
Parallel communication ports
Battery CAN /RS485
CT communication ports
03
LCD display
Function buttons
Fault/Warning Status indicator
Normal Status indicator
PVA+ PVA- PVB+ PVB- L N PE L N L N
AC INPUT AC OUTPUT GEN
Dry Por t GEN
No2 COM2 Nc2 No1 COM1 Nc1
PVA PVB AC INPUT AC OUTPUT GEN
Dry contacts Power on/off switch
Circuit breaker

1.3 Packing List

Before installation, please inspect the unit. Be sure that nothing inside the package is damaged.
You should have received the following items in the package:
ECO Hybrid inverter X1
Storing the Inverter
The inverter must be stored appropriately if not installed immediately, refer to below figure.
CAUTION !
a) The inverter and its components must be stored in its original packaging.
b) The storage temperature should be within -25~60
c) The packing should be upright and maximum stacked layers is 6 .
d) Do not directly exposed the inverter and its packaging to sunshine, raindrops and keep away
from corrosion.
OFF
ON
Power
Expansion Screw Wi-Fi Module X1
and Tube X4
User Manual X1
and humidity within 0~85%.
Cross Head Soft Magnetic
ScrewX5 / NutX2 StripX1
