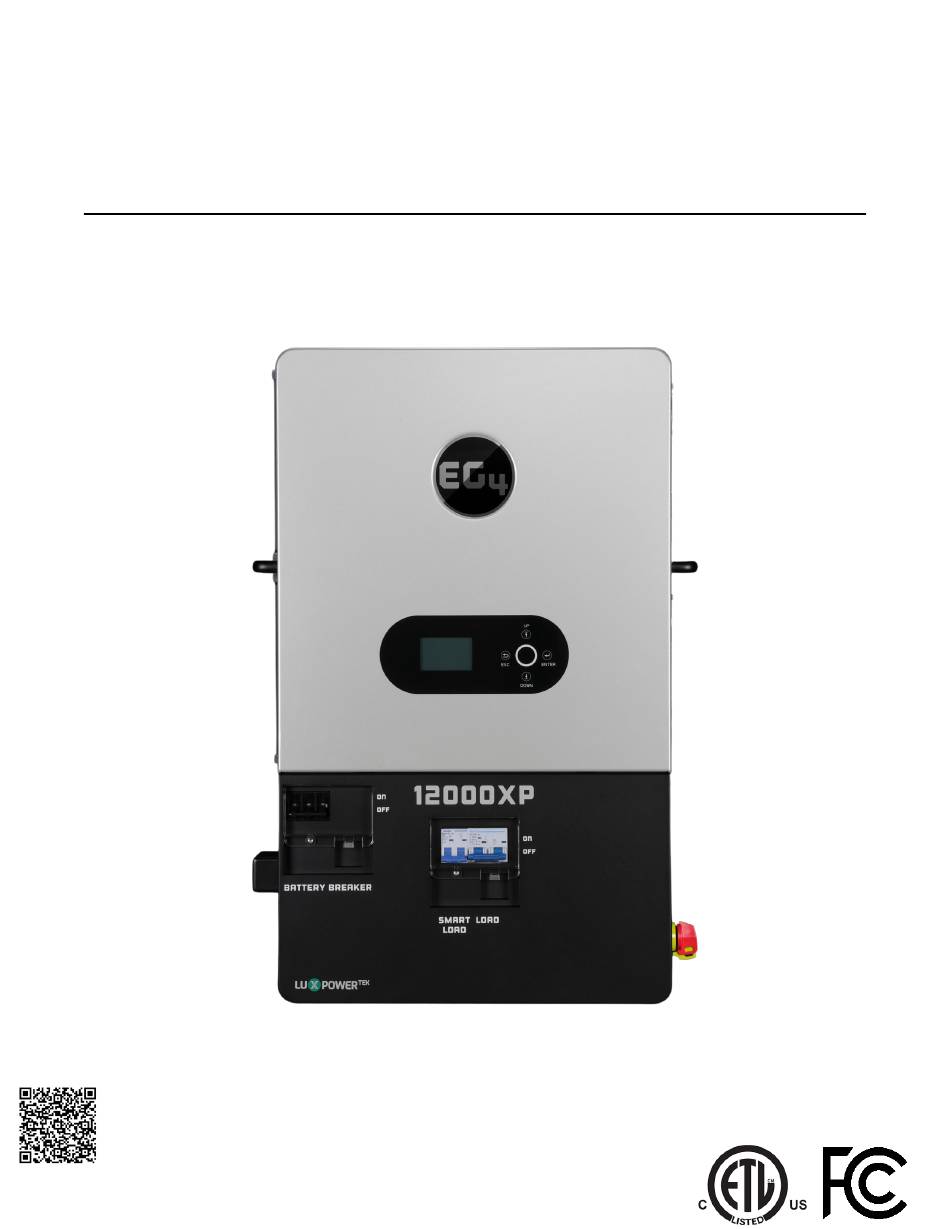

E G 4 ® 1 2 0 0 0 X P

O F F - G R I D I N V E R T E R

U S E R M A N U A L

VERSION 1.0 | INFORMATION SUBJECT TO CHANGE WITHOUT NOTICE.

MODEL #: IV-12000-XP-IN-00

Table of Contents

Troubleshooting

Need help?

Do you have a question about the EG4 12000XP and is the answer not in the manual?

Questions and answers

Summary of Contents for Lux Power Technology EG4 12000XP

Page 3: Table Of Contents
TABLE OF CONTENTS TECHNICAL SPECIFICATIONS ..................................1 ABBREVIATIONS......................................3 INVERTER SAFETY ...................................... 4 SAFETY INSTRUCTIONS................................. 4 IMPORTANT SAFETY NOTIFICATIONS ............................4 BRIEF INTRODUCTION ....................................6 FEATURES ......................................6 INVERTER INTERFACE ................................... 7 CABLE BOX KNOCKOUTS ................................8 OPERATION OVERVIEW ................................. 8 PHYSICAL INSTALLATION ..................................
Page 4 INVERTER TROUBLESHOOTING ................................65 13.1 ERROR DEFINITIONS AND TROUBLESHOOTING ........................65 13.2 WARNING DEFINITIONS AND TROUBLESHOOTING ......................66 INVERTER MAINTENANCE ..................................68 14.1 INVERTER START-UP AND SHUT DOWN PROCEDURE ......................68 WARRANTY INFORMATION ..................................70 CHANGELOG ....................................... 72...
Page 5: Technical Specifications
1. TECHNICAL SPECIFICATIONS AC INPUT DATA 120/240VAC (L1/L2/N required) NOMINAL AC VOLTAGE (GRID | GENERATOR) 50/60 Hz FREQUENCY (GRID | GENERATOR) 100A @ 240VAC GRID MAX. CONTINUOUS AC CURRENT 24000W MAX. AC INPUT POWER 62.5A @ 240VAC GENERATOR MAX. CONTINUOUS CURRENT >15000W RATED GENERATOR SIZE 100A | 90A...
Page 6: Battery Data
EFFICIENCY MAXIMUM EFFICIENCY (MPPT) 92.8% MAXIMUM EFFICIENCY (PV TO BATTERY) 92.5% MAXIMUM EFFICIENCY (AC TO BATTERY) 93.5% MAXIMUM EFFICIENCY (PV TO LOADS) 90.2% MAXIMUM EFFICIENCY (BATTERY TO LOADS) <60W IDLE CONSUMPTION (STANDBY MODE)* BATTERY DATA Lead-Acid/Lithium COMPATIBLE TYPES 250A MAX. CHARGE/DISCHARGE CURRENT (A) 12000W MAX.
Page 7: Abbreviations
2. ABBREVIATIONS • In-lbs. – Inch Pounds • AWG – American Wire Gauge • kW – Kilowatt • A – Amps • kWh – Kilowatt-hour • Ah – Amp hour(s) • LCD – Liquid Crystal Display • AC – Alternating Current LFP –...
Page 8: Inverter Safety
3. INVERTER SAFETY SAFETY INSTRUCTIONS International safety regulations have been strictly observed in the design and testing of the inverter. Before beginning any work, carefully read all safety instructions, and always observe them when working on or with the inverter. The installation must follow all applicable national or local standards and regulations.
Page 9 WARNING: TO REDUCE THE RISK OF INJURY, READ ALL INSTRUCTIONS! All work on this product (system design, installation, operation, setting, configuration, and maintenance) must be carried out by qualified personnel. To reduce the risk of electric shock, do not perform any servicing other than those specified in the operating instructions unless qualified to do so.
Page 10: Brief Introduction
4. BRIEF INTRODUCTION The EG4 12000XP is a 12kW 120/240VAC split-phase, all-in-one, off-grid, sine wave inverter with grid ® charge capability designed for the residential and small commercial markets. The 12000XP can receive 28kWs of DC (STC) solar PV on two 35A MPPTs and generate 12000 watts of power and can feed through 24000 watts (100A) of utility or 90A of generator split phase 120/240VAC power.
Page 11: Inverter Interface
4.2 INVERTER INTERFACE LCD Panel Navigation Controls Air Filters LCD Panel Battery Load Comm Breaker Breaker Board PV Interface PV Disconnect Ground Battery Busbar Interface Grid Smart Load Interface Wi-Fi Dongle Breaker Generator Power Switch Neutral EPS Switch Interface Busbar...
Page 12: Cable Box Knockouts
4.3 CABLE BOX KNOCKOUTS The image below represents the bottom view of the cable box area with hole sizing. 1/2 in. 1 in. 1/2 in. 1 in. 1 in. 1 in. 1 in. 1/2 in. 1/2 in. U.S. NOM. TRADE SIZE ACTUAL KO SIZE ACTUAL KO SIZE 1/2 in.
Page 13: Physical Installation
5. PHYSICAL INSTALLATION 5.1 PACKING LIST When the product is unpackaged, the contents should match those listed below. Note: Pictures are for reference only, subject to our available products. 12000XP Off-Grid User Manual Expansion Bolts (x6) Cardboard Template Inverter Wi-Fi Dongle Parallel Communication Battery Communication Cross Head Screw...
Page 14: Storing The Inverter
5.2 STORING THE INVERTER If placing the inverter into storage before installation, keep the following factors in mind while selecting a storage location. CAUTION: • The inverter and its components must be stored in its original packaging. • The storage temperature should be within -13 – 140°F (-25 – 60°C) and humidity within 0 –...
Page 15: Location Selection And Installation
5.3 LOCATION SELECTION AND INSTALLATION • The mounting wall should be strong enough to bear the weight of the inverter. • Maintain the minimum clearances presented below for adequate heat dissipation. • Install the inverter upright on a vertical surface. 5.4 MOUNTING THE INVERTER The inverter is designed to be vertically wall-mounted on a solid, non-combustible material such as brick or concrete.
Page 16 NOTE: • Ensure the surface the inverter is being mounted to can support the weight of the unit and has proper spacing as per the diagram above. • The screws needed for attaching the bracket to studs are NOT included in the packing contents and must be provided by the installer.
Page 17 6. Temporarily mount the right-angle bracket to the side of the inverter (located at the bottom, one on each side). Mark a hole on the wall based on the hole location inside the right-angle bracket. (Repeat this step for both sides) 7.
Page 18: Cable Connections
6. CABLE CONNECTIONS To expose the cable box area, remove the bottom cover by removing the 4 screws identified in the image below. Once the cover is removed, follow the sections below for connecting the wiring for PV, AC, Battery, Generator, RSD, and Parallel cables. Before connecting any wiring to the inverter, verify each wire is not carrying voltage using a multimeter.
Page 19 CAUTION The array may have a higher Imp than the 35A specified, but the MPPTs will not make full use of the extra current and may lead to internal component deterioration over time. String Sizing When solar modules are put in a series string, the voltage multiplies by the number of modules and the amperage stays the same as the rating of each module.
Page 20: Battery
6.2 BATTERY The EG4 12000XP supports connecting to lithium or lead-acid batteries. There is a combination of ® settings that need to be configured depending on the battery type installed. When using lithium batteries, it is recommended to configure the battery to communicate with the inverter using the included battery communications cable.
Page 21: Ac Connections
NOTE When installing multiple inverters in parallel, the battery or battery bank must be connected to each inverter so the current can be evenly shared to each inverter. The positive cable from the battery or battery bank to each inverter should be of equal length.
Page 22 CAUTION • Do not misconnect the grid input and loads output connections, which could cause damage to the inverter and attached devices. • Be sure to connect AC wires with correct phasing. If L and N wires are connected in reverse, it may cause a utility short circuit when the inverters are working in parallel operation.
Page 23: Neutral-Ground Bonding
Cable Installation 1. Before making any connections, ensure all breakers are open (off). Use a multimeter to confirm the AC input lines (L1, L2 and neutral) are not carrying current from the main panel. Verify the DC input lines are not carrying current. Verify the PV input lines are not carrying current.
Page 24 Cable Installation: 1. Before making any wiring connections, be sure to have the inverter(s) powered off, the generator powered off, and all circuit breakers open (off) to prevent damage to the unit. 2. Properly identify the generator’s output lines. By US wiring standards, L1 wire will be black, L2 will be red, neutral will be white, and ground will be green or bare.
Page 25: Off-Grid
6.6 OFF-GRID The EG4 12000XP inverter can fully function in off-grid mode. It does not need the utility or generator to function. Purely off-grid systems that do not have access to the utility should strongly consider having a 2-wire start backup generator for extended cloudy periods (>15kW per 12000XP).
Page 26: Ac Coupling Connections
6.7 AC COUPLING CONNECTIONS AC coupling allows the user to add onto an existing grid tied solar system. PV comes from the existing system while the AC coupled inverter controls battery charging and any extra PV coming into the system. This setting allows the user to still have power off-grid. The inverter can accept PV inputs to both MPPT channels and AC coupled solar input simultaneously.
Page 27: Single Inverter
7.1 SINGLE INVERTER 1. Ensure each inverter circuit breaker is in the open (OFF) position. No voltage should be coming in or out of the inverter at this point. 2. Using a multimeter, check the following: a. Check the battery bank voltage is within operating range at the inverter DC breaker, or the external DC disconnect.
Page 28: Multiple Inverters
Common Tab (Pages 1 and 2) • PV Input Mode: select one of the following: DC source input • • PV1 and PV2 independent • PV1 and PV2 parallel Battery Type: select Lead Acid or Lithium Lithium Type: select a supported brand of battery. ®...
Page 29 In order to support proper ventilation and cooling, the inverters are installed with required • clearances as shown in section 5. CAUTION: Only use the provided parallel cable when connecting the inverters together. Using the wrong cable could cause hardware damage. If a longer cable is required, see below for more information on creating a cable or contact the distributor.
Page 30 10. Move the external PV isolator switch to the closed (ON) position (if equipped). Set the PV switch on the side of the inverter to the closed (ON) position. 11. If using AC input, set the external breaker between input panel and inverter to the closed (ON) position.
Page 31 Set System Type: Change from Not Parallel to Parallel. Battery Shared: Place a check mark in the battery shared box. Note: Repeat the “Set System Type” and “Battery Shared” settings on each inverter connected in a parallel configuration. The rest of the settings will be copied to each inverter as they are set on the master inverter.
Page 32: Rapid Shutdown / Ess Disconnect
8. RAPID SHUTDOWN / ESS DISCONNECT The inverter includes a rapid shutdown system that complies with 2017 and 2020 NEC 690.12 requirements. A rapid shutdown switch should be connected to the RSD terminals on the master inverter and mounted in a readily accessible location outdoors (check with the local AHJ for specific requirements).
Page 33: Front Panel Display
9. FRONT PANEL DISPLAY Navigation The user can wake up the LCD screen by simply Buttons pressing the Enter button. System status, real- time power, and daily and accumulated energy information can all be conveniently viewed on the inverter’s LCD screen. Additionally, users can check the alarm and fault record on the display for troubleshooting.
Page 34: Inverter Status
9.2 INVERTER STATUS The information in the table below demonstrates the various status codes that can be displayed on the LCD panel. Normal/Running Status: Warning Status: Fault Status: Flash Status: Utility Grid Status: Generator Grid Status:...
Page 35: Working Modes
9.3 WORKING MODES The table below describes how the inverter's LCD will display different modes of operation at a given scenario. The inverter logic will automatically operate in one of the modes listed in the table below without any required configuration. However, there are working mode settings that can be configured within Monitor Center to control when a particular working mode is used.
Page 36 PV charges the battery and PV Charge+Off-Grid powers the load 1. AC powers the battery from AC Input (Grid) or Generator Input (GEN) AC Charge 2. When batteries reach low threshold, charge bank with Grid/GEN PV & AC charge the battery. PV+AC Charge AC is from AC Input (Grid) or Generator Input (GEN)
Page 37: Lcd Menu Navigation
9.4 LCD MENU NAVIGATION There are four buttons on the front panel LCD screen used for navigation and setting changes. BUTTON FUNCTION Return Exit Enter Confirm, Enter Menu Previous Level, Increase Down Next Level, Decrease Pressing Enter on the home screen provides access to the main menu: Home •...
Page 38: Data Menu
9.5 DATA MENU Solar Tab ________________________________________________________________ Vpv1: MPPT1 voltage Vpv2: MPPT2 voltage Ppv1: MPPT1 power Ppv2: MPPT2 power Epv1_day: MPPT1 power generation in one day Epv2_day: MPPT2 power generation in one day Epv1_all: MPPT1 total power generation Epv2_all: MPPT2 total power generation Battery Tab ________________________________________________________________ (Page 1 / 2)
Page 39 Grid Tab ________________________________________________________________ (Page 1 / 2) Vgrid: Grid voltage Fgrid: Grid frequency VgridL1N: Split phase L1-N voltage VgridL2N: Split phase L2-N voltage Vgen: Generator voltage Fgen: Generator frequency Pimport: Power input from the grid to the inverter Pexport: Power output from the inverter to the grid. The output should be 0kWh since this is an off-grid inverter.
Page 40 (Page 2 / 2) Eeps_day: Daily load (L1-L2) power output Eeps_all: Total load (L1-L2) power output EepsL1N_day: Load (L1-N) output power in a day EepsL1N_all: Total power output of load (L1-N) EepsL2N_day: Load (L2-N) output power in a day EepsL2N_all: The total power output of load (L1-N) Parallel Tab ________________________________________________________________ Parallel Role: Role of the inverter in the parallel state...
Page 41: Notice Menu
9.6 NOTICE MENU Fault Status Tab ________________________________________________________________ When the inverter has an internal fault, this page displays the corresponding fault code. If there is no fault, no fault is displayed. Alarm Status Tab ________________________________________________________________ When the inverter goes into alarm status, this page will display the corresponding alarm code.
Page 42: Settings Menu
9.7 SETTINGS MENU The information below describes each setting that can be configured by the end user. The default value for each setting will be underlined in the examples below. Common Tab ________________________________________________________________ (Page 1 / 2) Normal/Standby: Standby | Normal When the inverter is set to Standby mode, PV input and battery charging/discharging are inoperable.
Page 43 Application Tab ________________________________________________________________ (Page 1 / 3) EPS Voltage Set: 120/240 | 127/220 three phase | 100/200 split phase | 120/208 | 110/220 | 115/230 Set the inverter output voltage. EPS Frequency Set: 60Hz | 50Hz Set the inverter output frequency. AC Input Range: UPS: 170-280 | APL: 90-280 Set the voltage range for AC Input.
Page 44 Application Tab (Cont.) ________________________________________________________________ (Page 3 / 3) Set System Type: Not Parallel | Single Phase Parallel | Three Phase Parallel Set to “Not Parallel” when using a single inverter. Set to “Single Phase Parallel” when connecting two or more inverters using split-phase 120/240VAC.
Page 45 Charge Tab (Cont.) ________________________________________________________________ (Page 2 / 3) AC Chg Based On: According to time AC charging is configured according to time using up to three time periods. If one of the three time periods is met, AC will charge the battery. If only one time period is needed, it is recommended to set all time periods to the same value.
Page 46 Charge Tab (Cont.) ________________________________________________________________ (Page 2 / 3) AC Chg Based On: Battery Volt and Time AC charging is configured according to battery voltage and time. When one of the three time periods and the battery voltage is met, AC charging will begin. Once the time period and voltage are outside the configured range, AC charging will end.
Page 47 Discharge Tab ________________________________________________________________ (Page 1 / 3) Discharge Control: Use Vol | Use SOC Battery discharge can be based on voltage or SOC. Set to “According to Voltage” when using a lead-acid battery or a lithium battery in lead-acid mode. Set to “According to SOC”...
Page 48 Discharge Tab ________________________________________________________________ (Page 3 / 3) - AC Coupling AC Couple Enable: Disable | Enable Enables the AC coupling function. AC Couple Start SOC: 50% Sets the start state of charge (SOC) for AC coupling. AC Couple End SOC: 90% Configure the SOC for AC coupling.
Page 49: Remote Monitoring And Configuration
10. REMOTE MONITORING AND CONFIGURATION The inverter can be remotely monitored and configured using the EG4 mobile app or ® by using EG4 Monitor Center with a web browser. This section describes configuring the inverter’s hardware (dongle) for access to the internet to support remote connectivity with the EG4 app or Monitor Center.
Page 50 2. Complete the online form. Contact the distributor for the customer code. The dongle serial number (SN) and dongle PIN can be found on the sticker attached to the side of the dongle. 3. Once the registration is complete, return to the EG4 Monitor Center web page and login ®...
Page 51: Existing User Accounts
Using the Phone App 1. Download the “EG4 Monitor” app for iOS or Android. After installation is complete, open the app. 2. Select “Register”, then complete the required information and press “Register”. Contact the distributor for the installer code. 3. Once the registration is complete, return to the login page and login using the username and password created during the registration process.
Page 52 2. Navigate to the “Configuration” tab, then select “Dongles”. 3. Select “Add Dongle”. 4. Enter the new dongle serial number and pin, select the station to assign the dongle to, then click” Add”. 5. The EG4 12000XP Off-Grid inverter should now be available in Monitor Center. ®...
Page 53: Monitor Center Settings
11. MONITOR CENTER SETTINGS This section describes using Monitor Center to configure basic settings as well as settings that may be specific to the 12000XP. For assistance using additional settings and features within Monitor Center, see the EG4 Monitor Center Overview available on the EG4 website or by scanning the code below. ®...
Page 54: Application Setting
11.2 APPLICATION SETTING EPS Voltage Set(V): Set the voltage to accommodate the rated grid voltage. • EPS Frequency Set(Hz): Set the inverter output frequency. • AC Input Range: Set the voltage range for AC Input. Switch over time will typically, be •...
Page 55: Charge Settings
11.3 CHARGE SETTINGS Charge Current Limit(Adc): Set the charge current limit in amps according to battery • requirements. Range is 0 – 250. Lead Acid Charge Voltage(V): Sets the lead acid charge voltage. See the battery manufacturer’s • recommendation for setting this value. Range is 50 – 59V. Floating Voltage(V): Set the lead acid floating voltage according to the battery •...
Page 56 AC Charge End Battery Voltage(V): Limit of voltage at which system will stop charging • batteries from AC. Range is 48 – 59V for end. AC Charge Start Battery SOC(%): Limit of SOC at which the system will start charging •...
Page 57: Discharge Settings
11.4 DISCHARGE SETTINGS • Discharge Control: Battery discharge can be based on voltage or SOC. Set to “According to Voltage” when using a lead-acid battery or a lithium battery in lead-acid mode. Set to “According to SOC” when using a compatible Lithium battery. Discharge Current Limit(Adc): Set the discharge current for lead-acid batteries.
Page 58: Other Setting
Smart Load Smart Load: Turns the smart load feature on or off. • Start PV Power(kW): When the actual PV input power is greater than the value, the smart • load function takes effect. Grid Always On: Enable for continuous AC power on the GEN port when connected to the •...
Page 59: Firmware Update
AC Charge: Used to charge battery bank with the grid while loads are supported by PV. • Batteries can then be used when electricity prices are high. AC First Mode: Used to have AC power loads before using battery or PV. PV will charge •...
Page 60: Dongle Troubleshooting
12. DONGLE TROUBLESHOOTING 12.1 LEDS & BUTTON FUNCTIONALITY LEDs: Each of the three LEDs on the dongle will illuminate green when the boot/configuration process is complete. 1. Wi-Fi LED: Dongle has power, and the Wi-Fi hotspot is on. 2. Cloud LED: Dongle is communicating with the monitoring server.
Page 61: Connectivity Requirements
2. Once the dongle is properly configured, it should successfully connect to the home Wi-Fi network and then to the internet. The Cloud LED will illuminate once the dongle connects to the monitoring server via the internet. 3. Once the dongle has a connection to the monitoring server, it will then set up an internal connection to the inverter.
Page 62 3. Open the EG4 app and select “Dongle Connect”. Then select “Dongle Connect Params”. ® NOTE: If the home screen is bypassed after opening the EG4 app, press the user icon in the upper right of the screen and then select logout. NOTE: After selecting Dongle Connect, give the dongle time to respond to the EG4 monitor mobile app.
Page 63: Troubleshooting Dongle Network Configuration
12.5 TROUBLESHOOTING DONGLE NETWORK CONFIGURATION Error: “Set failed” and/or “Set parameter failed” Description: This error message may appear after selecting any button in the app that performs an action. For example, selecting the “HomeWiFi Connect” button as shown below. Fix: Confirm the phone is connected to the dongle’s Wi-Fi network and the dongle’s wireless LED is illuminated.
Page 64: Network Security
12.6 NETWORK SECURITY Enabling The following steps describe the process of configuring and enabling WPA2 security for the dongle’s wireless network: 1. Verify the Wi-Fi LED is solid on. If the LED is not on, see section 12.2. 2. Using a supported device, connect the Wi-Fi network created by the dongle, generally it's named as dongle serial number (i.e., BEXXXXXXXX, BJXXXXXXXX, BGXXXXXXXX).
Page 65 5. Select the “eye” icon and enter the verification code 123123. The “OK” button may need to be selected twice, depending on communication and/or software lag. 6. The default WPA2 password set at the factory is “12345678”. To change the default password, select inside the password area and over-write the existing password using the desired password.
Page 66 8. Go to the phone’s Wi-Fi settings and re-select the dongle’s Wi-Fi network. The lock icon should appear next to the dongle’s wireless network which means security is enabled. Enter the password created in the previous step. 9. The EG4 mobile app can now be used as it was previously when security was not enabled.
Page 67: Update Dongle Firmware Using App
4. Press the “eye” icon and enter the verification code 123123. 5. Select the “SET” button. There may be a short pause after selecting SET. If this step is not completed, security will NOT be disabled. Press “OK”, when prompted. The dongle will reboot, and security will be disabled after the reboot is complete.
Page 68 REMINDER Before starting a dongle firmware update, verify all 3 LEDs are ON, the dongle is online, and the mobile device is connected to the dongle’s Wi-Fi. 1. Connect the mobile device to the dongle’s wireless network. 2. Open the EG4 ®...
Page 69: Inverter Troubleshooting
13. INVERTER TROUBLESHOOTING 13.1 ERROR DEFINITIONS AND TROUBLESHOOTING CODE DESCRIPTION TROUBLESHOOTING Restart the inverter. If the error persists, contact the E000 Internal Communication Fault distributor. Restart the inverter. If the error persists, contact the E001 Model Fault distributor. Restart the inverter. If the error persists, contact the E003 CT Fail distributor.
Page 70: Warning Definitions And Troubleshooting
Sync trigger signal lost in parallel Ensure the CAN cable connection is connected to the E029 system correct COM port. Restart the inverter. If the error persists, contact the E031 Internal communication fault 4 distributor. 13.2 WARNING DEFINITIONS AND TROUBLESHOOTING CODE DESCRIPTION TROUBLESHOOTING...
Page 71 Check the battery for voltage using a multimeter. W027 Battery open Ensure all wires are correctly installed to inverter and battery. W028 Inverter overload Inverter is running beyond maximum output. Restart the inverter. If the error persists, contact the W029 Inverter voltage high distributor.
Page 72: Inverter Maintenance
Grid power is cut, and the inverter supplies the load with a combination 0×C0 PV & Battery Off-grid of solar and battery power. Grid power is cut, and solar power is used to supply the load and 0×88 PV Charge Off-grid charge batteries simultaneously.
Page 73 DANGER Never disconnect battery, PV, or AC input power under loads. If there is an emergency where the inverter must be shut down, follow the steps outlined below. Shut Down 1. Turn off EPS output on side of inverter. 2. Open (turn OFF) the GRID and GENERATOR breaker on front of unit. 3.
Page 74: Warranty Information
® Congratulations on your purchase. EG4 Electronics offers a 5-year Full Parts Replacement or Full Product Replacement Warranty from the date of original inverter (EG4 12000XP* ) purchase. Your warranty must be registered within the first year of purchase or provide proof of purchase from an EG4 authorized distributor to remain valid.
Page 75 NOTES...
Page 76: Changelog
16. CHANGELOG 10-15-24 User manual created •...
