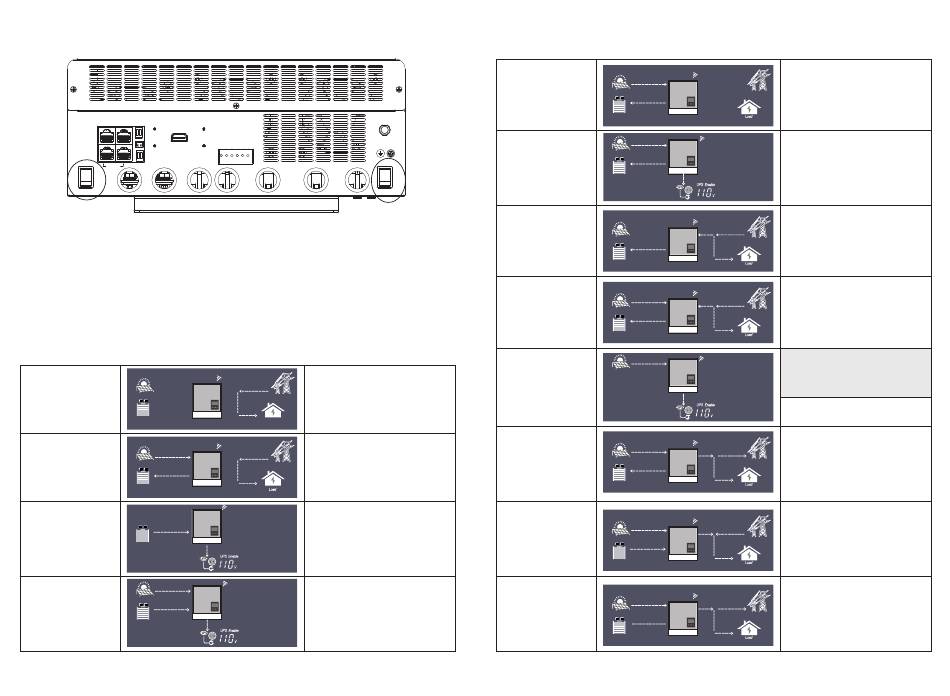

2.10 Power and EPS ON/OFF
P1-485B
P2-485A
MPPT485/CT WIFI
P4-CANH
P5-CANL
Li-ion
CAN/RS485
NTC
Parallel BAT+ BAT-
OFF
ON
EPS Output
1.Power Switch: Control power supply for the unit
2.EPS Output Switch: Use to control the AC output
After connection, please turn on both switch. Users can turn off the EPS output switch to turn off power
supply in some emergency case

3. Working modes

3.1 ECO Hybrid inverter modes introduction:
Bypass Mode
PV Charge Bypass
BAT Grid off
PV+BAT Grid off
17
Dry Port GEN
No2COM2Nc2No1 COM1 N c1
PVA PVB AC INPUT AC OUTPUT GEN
AC is used to take the load
PV charge the battery while the
AC power the load
Battery is used to take the load
PV+Battery power
the load together
PV Charge
PV Charge+Grid off
OFF
ON
Power
AC Charge
PV+AC charge
PV Grid off
PV charge Gridon
PV+BAT Gridon
PV Gridon
1.When the EPS key off, the
inverter charge the battery only
2.When the battery is power off,
the PV can wake up the battery
automatically
PV charge the battery and
power the load
1. AC charge the battery from
AC Input or GEN Input
2. When the battery is power off,
the AC can wake up the battery
automatically
PV+AC charge the battery
AC is from AC Input or GEN Input
NOTE: The output power depends
on the PV energy input, if the PV
energy is unstable, witch will
influence the output power
When setting without battery,
the PV can power the load .
PV charge battery and
power the load
*The rest power from PV
can feed in Grid
PV+Battery power the load ,
and the AC can power the load
if PV+Battery power not enough
PV power the load, the rest
power feed in Grid
