ODKL 96B
18 - 30 V
DC
Measurement range up to 25000mm onto
high-gain foil
Highly insensitive to extraneous light
Analog current or voltage output
PC/OLED display and membrane keyboard
for configuration
Measurement value is indicated in mm on
OLED display
Measurement range and mode adjustable
IEC 60947...
IEC 60947...
Accessories:
(available separately)
Mounting systems
Cable with M12 connector
(K-D ...)
Configuration software
High-gain foil REF 7-A-100x100
(Part No. 50111527)
Leuze electronic GmbH + Co. KG

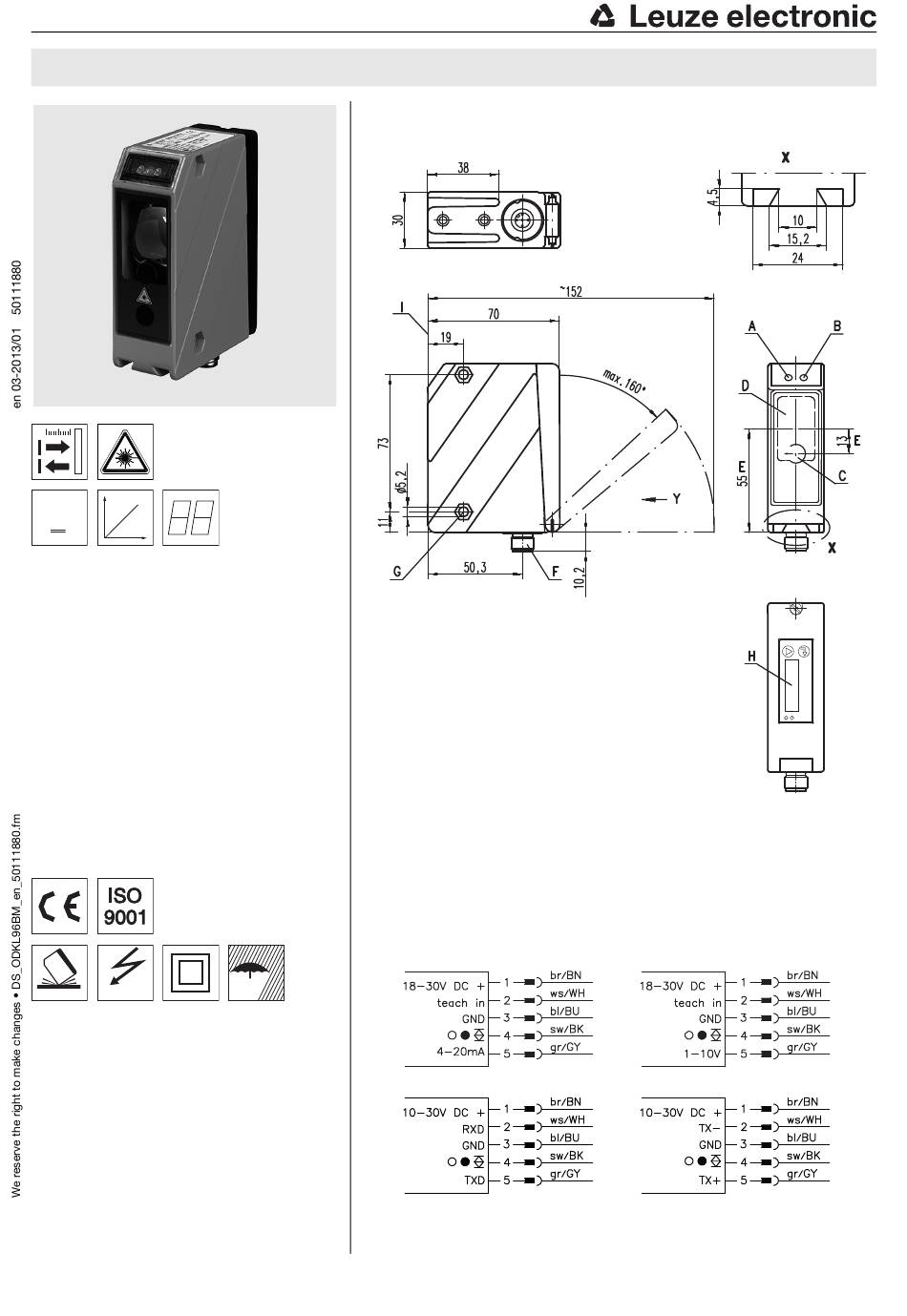

Dimensioned drawing
0.3 ... 25m
A
B
C
D
E
F
G
H
I
Electrical connection
IP IP 69K
69K
IP IP 67
67
In der Braike 1 D-73277 Owen
Optical laser distance sensors
Green indicator diode
Indicator diode yellow
Transmitter
Receiver
Optical axis
Device plug M12x1
Countersinking for SK nut M5, 4.2mm deep
OLED display and membrane keyboard
Reference edge for the measurement (cover glass)
ODKL 96B/C6...
ODKL 96B/D26...
ODKL 96B/V6...
ODKL 96B/D36...
ODKL 96B M/... - 03
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Leuze electronic ODKL 96B
Summary of Contents for Leuze electronic ODKL 96B
- Page 1 Mounting systems ODKL 96B/D26… ODKL 96B/D36… Cable with M12 connector (K-D …) Configuration software High-gain foil REF 7-A-100x100 (Part No. 50111527) Leuze electronic GmbH + Co. KG In der Braike 1 D-73277 Owen ODKL 96B M/… - 03...
- Page 2 Environmental data Ambient temp. (operation/storage) -20°C … +50°C / -30°C … +70°C Approved purpose: Protective circuit 1, 2, 3 The ODKL 96B laser dis- VDE safety class II, all-insulated tance sensors are opto- Protection class IP 67, IP 69K Laser class 2 (acc.
- Page 3 Measurement mode Precision. Reset to factory settings Press the button while switching on the device to reset the configuration of the ODKL 96B to the state upon delivery from the factory. Press the button again to reset all parameters to the factory settings. All settings made pre- FactorySettings viously are permanently lost.
- Page 4 Attention Laser Radiation! The optical distance sensors ODKL 96B operate with a red light laser of class 2 acc. to EN 60825-1. If you look into the beam path over a longer time period, the retina of your eye may be damaged!
