Leuze electronic OPSL 775 Manual

Leuze electronic OPSL 775 Manual

Laser edge detector
Hide thumbs Also See for OPSL 775:
Table of Contents

Advertisement

Quick Links

Download this manual

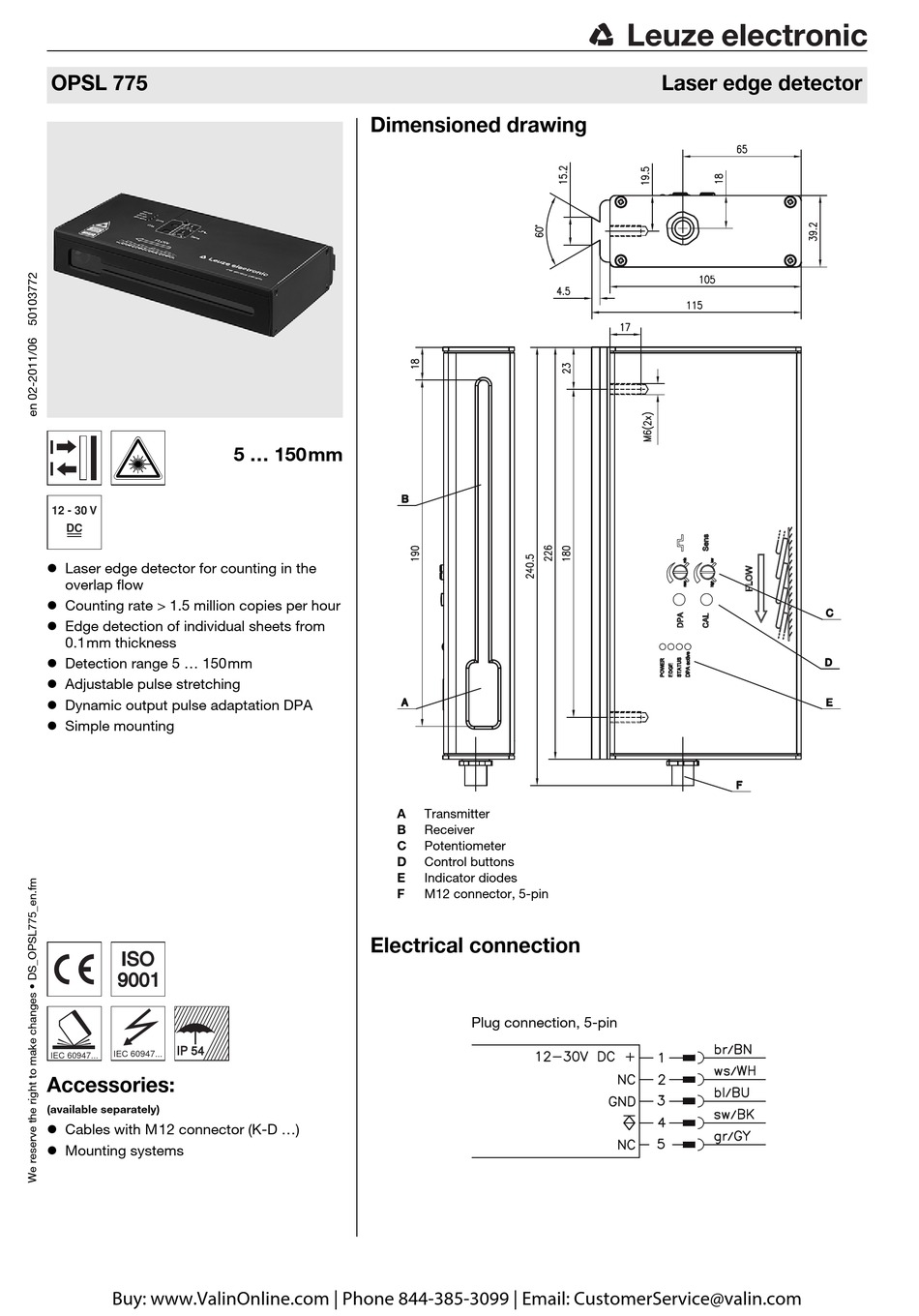

Specifications and description
OPSL 775
12 - 30 V
DC
 Laser edge detector for counting in the
overlap flow
 Counting rate > 1.5 million copies per hour
 Edge detection of individual sheets from
0.1mm thickness
 Detection range 5 ... 150mm
 Adjustable pulse stretching
 Dynamic output pulse adaptation DPA
 Simple mounting
IP 54
IEC 60947...
IEC 60947...
Accessories:
(available separately)
 Cables with M12 connector (K-D ...)
 Mounting systems
Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com
Dimensioned drawing
5 ... 150mm
A
B
C
D
E
F
Electrical connection
Transmitter
Receiver
Potentiometer
Control buttons
Indicator diodes
M12 connector, 5-pin
Plug connection, 5-pin
Laser edge detector

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OPSL 775 and is the answer not in the manual?

Questions and answers

Related Manuals for Leuze electronic OPSL 775

Summary of Contents for Leuze electronic OPSL 775

  • Page 1 Specifications and description OPSL 775 Laser edge detector Dimensioned drawing 5 … 150mm 12 - 30 V  Laser edge detector for counting in the overlap flow  Counting rate > 1.5 million copies per hour  Edge detection of individual sheets from 0.1mm thickness...

  • Page 2: Specifications

    5) 1=transient protection, 2=polarity reversal protection, 3= short-circuit protection for transistor output Remarks  Function Attention! characteristics: The OPSL 775 edge detector It is imperative that the safety notices in section 8 are observed is an optoelectronic sensor for the contactless detection of object edges.
  • Page 3 It is imperative that the safety notices in section 8 are observed It is possible with the OPSL 775 to detect edges being conveyed within a range of 5 to 150 mm, as measured from the underside of the device. The sensitivity range is dependent on the working distance. By focussing the laser beam to a distance of 100mm, detection of the smallest possible edge height of 0.1mm is only possible within the focus range of 100mm ±...

  • Page 4: Operation Indicators

    Calibration of working distance (CAL) Sensitivity (Sens) Fig. 2: OPSL 775 - operational controls Potentiometer for output pulse width( This potentiometer allows the output pulse width to be modified in stages, whereby turning to the left / right effects an increase / decrease of the output pulse width (left limit stop: Maximum pulse width = 1023ms or right limit stop: Minimum pulse width = 1ms).

  • Page 5: Installation / Alignment

    In order that optimum functioning of the device can be guaranteed, the following points must be observed during installation: 1. The OPSL 775 must be installed in such a manner that vibrations are completely eliminated, otherwise there is a risk of counting errors occurring.
  • Page 6 The correct direction of overlap is stamped onto the front side of the device. The OPSL 775 only counts those edges which are pointing in the conveying direction. Thus, in the case of an uninterrupted overlap flow, the last copy is counted only once as the "falling edge" is not detected.
  • Page 7 Calibration is concluded and it should now be possible to count the edges in the overlap flow with a constant working distance. Under certain circumstances, the calibration procedure may have to be repeated. In the event that no edges can be detected, please refer to the procedure for setting the OPSL 775 in section 5. General There are three possibilities for optimum adaptation of the device for the specified counting tasks: 1.
  • Page 8 It must be ensured that the output pulse width is not greater than the period following the edge! We recommend using the dynamic pulse adaptation DPA wherever possible. Fig. 8: OPSL 775 - Output pulse with fixed pulse time Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com...
  • Page 9 CAL button button until the desired mode is indicated (0 -> 1 -> 2 -> 3 -> 0 -> …) Fig. 9: OPSL 775 - Procedure for switching over the range mode Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com...
  • Page 10 OPSL 775 Recommended procedure for setting the OPSL 775 Start Sens potentiometer in intermediate position Perform calibration Repeat calibration with Sens Edge detection potentiometer displaced from possible? intermediate position Adjust Sens potentiometer to the left: +; right: – Run through setting...

  • Page 11: Cleaning And Storage

    OPSL 775 Laser edge detector Diagnosis in the event of an error Error Possible cause Remedial measures POWER LED does not light up green No input voltage Check voltage supply Check working distance and adapt as necessary Working distance too great (section 3.2)

  • Page 12: Safety Notices

    The retina may sustain damage if the laser beam is observed for lengthy periods! Never look directly into the laser beam! Never point the laser beam of the OPSL 775 at other people! Beware of reflections of the laser beam from reflective surfaces during mounting and alignment of the...
