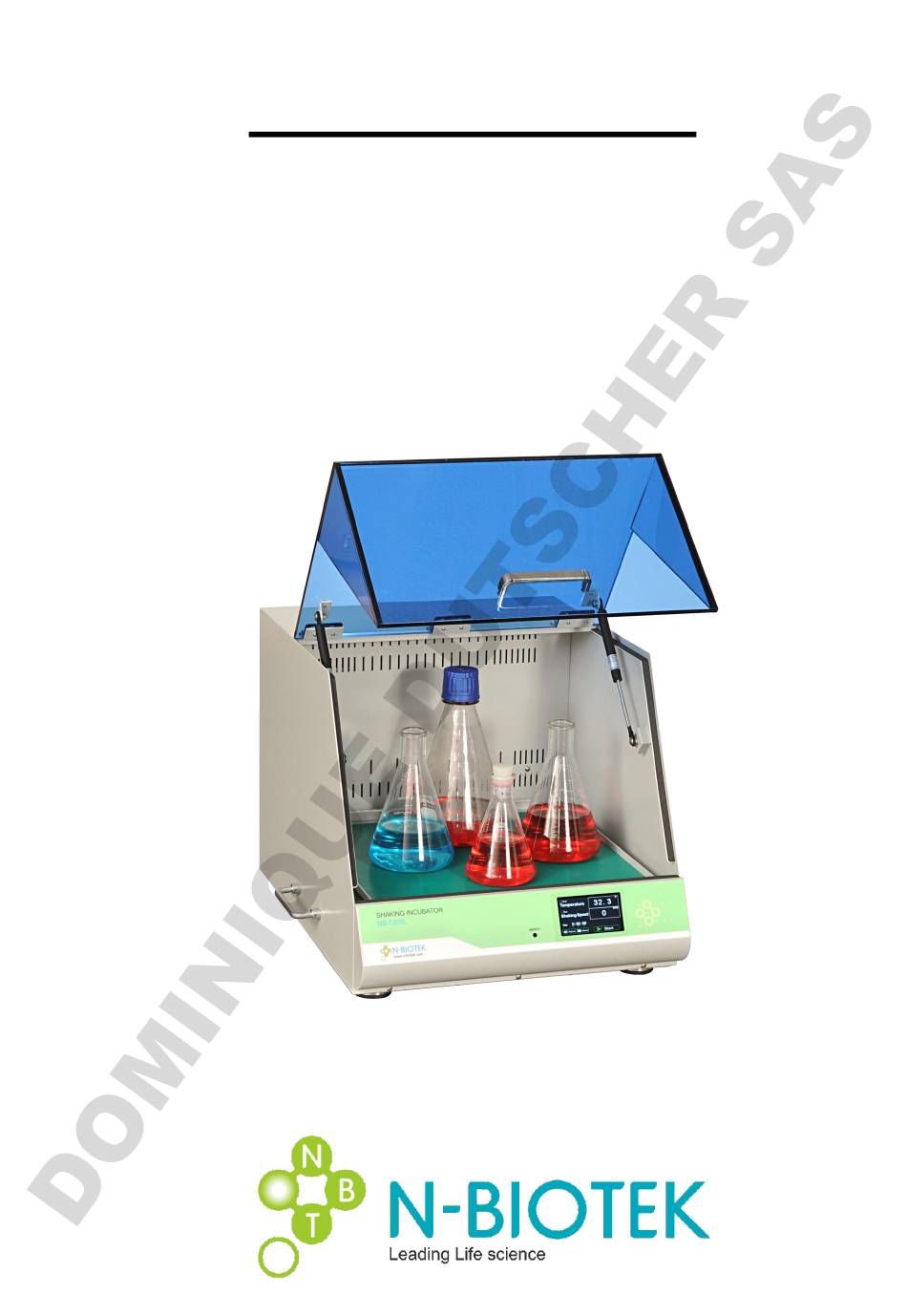

- Page 1 Operation Manual Model: NB-T205L & T205LF...
-
Page 2: Table Of Contents
Table of Contents Page Precaution for safety 1. General information and and precautions 1.1 Precaution related to the power cable 1.2 Precaution for use 2 Feautures and specification 2.1 Feature 2.2 Specification 3. Operation 6-15 ▶Booting ▶Basic view screen ▷Temperature setting change ▷RPM setting change ▷Time setting change ▷The end of setting time... -
Page 3: Precaution For Safety
1. General Information and Precautions Safety Symbols: 1.1. Precautions related to the power cable Always allow at least 3cm between the power cable and the back wall to prevent the back wall from causing pressure on the power cable. Always use the electrical plug that was supplied with this instrument. Never touch the power cord with wet hands. - Page 4 ALWAYS ensure that the instrument is connected to an outlet with specifciations that match those of the serial number label. (Over-voltage or under-voltage can damage the product and result in poor performance.) When installing the instrument, always allow a distance of at least 30cm from the back wall. Install the unit in the way that the power plug is easily accessible and can be easily pulled in case of danger.
-
Page 5: Feautures And Specification
Very simple way to place holder or spring rack platform on the shaker. And Optional accessories available for most common laboratory vessels 2.2 Specification Items NB-T205L NB-T205LF Ambient +5℃ to 60℃ Ambient -12℃ to 60℃ Temp. Range ±0.2℃ between temperature reading and a temperature at center of platform Temp. -
Page 6: Operation
3. Operation ▶ Booting Press the power switch into the ON position, the display illuminates and the booting screen is displayed for 2 seconds before showing the “Basic View” screen. NOTE: If the shaker has been powered off before the completion of a run, the unit will automatically power on to the previous settings. -
Page 7: Temperature Setting Change
▷ Temperature setting change ⓐ TOUCH the temperature value, The numbers become red ⓐ ⓑ “SET MODE” is displayed (flashes) ⓒ Input the desired value by pressing UP(▲)/DOWN(▼) buttons NOTE: Press and hold the buttons to increase or decrease the value quickly. ⓓ... -
Page 8: The End Of Setting Time
▷The end of setting time ⓒ ⓐ After the set time is over, time is displayed as 0:00:00 ⓑ Shaker is stopped and the message “Shaker end” is displayed ⓒ Heating LED continuously runs until the STOP button is pressed ⓐ... -
Page 9: Temperature Calibration
ⓕ. Apply: You must press to apply new setting NOTE: The temperature setting range of NB-T205L is 4~60℃ and that of NB-T205LF is ambient-12℃ to 60℃. When putting a value out of this range and pressing , the message “Incorrect... -
Page 10: Adjusting The Time Of The Temperature
▷Adjusting Timer of Temperature ⓐ TOUCH the temperature value, the screen turns ⓐ ⓑ to the temperature settings screen. ⓑ TOUCH the “Time Set” value to adjust the set time of the heater. ⓒ Input the desired value by using the key pads in the setup screen ⓓ... -
Page 11: Alarm Mute And Off
▷ Alarm Mute The alarm can be deactivating in both the BASIC View and the ADVANCED View by TOUCHING the key to toggle on/off. When the alarm is muted, is displayed on the screen and the alarm stops activating until 10 minutes after the actual value is out of the setting range and it is automatically reactivated 10 minutes after it is muted... -
Page 12: Adjusting The Shaking Time
▷Adjusting the Shaking Time ⓑ ⓐ TOUCH the RPM Shaker value, the screen turns ⓐ to the Shaker setting screen ⓑ TOUCH the “Time Set” Value to adjust the set shaking time. ⓒ Input the desired value by using the key pads in the setup screen ⓓ... -
Page 13: Alarm Mute And Off
▷ Alarm Mute The alarm can be deactivating in both the BASIC View and the ADVANCED View by TOUCHING the key to toggle on/off. When the alarm is muted, is displayed on the screen and the alarm stops activating until 10 minutes after the actual value is out of the setting range and it is automatically reactivated 10 minutes after it is muted... -
Page 14: Temperature Step Setting
▶Temperature step setting ▷Temp, time setting ⓐ ⓐ TOUCH the temperature value to enter the temperature setup screen. ⓑ Select , the screen moves to the temperature step & setup screen ⓒ You can select link up to 4 desired temperatures. Choose each of the 4 desired temperatures by pressing on the value. -
Page 15: Shaker Step Setting
▶Shaker step setting ⓐ ▷RPM, time setting ⓐ TOUCH the RPM Shaker value to enter the shaker setup screen. ⓑ When selecting , the screen moves to the shaker step & setup screen ⓒ You can select/link up to 4 desired shaking speeds. Choose each of the 4 desired speeds by pressing on the speed value. -
Page 16: Step Cycle Ending Screen
▶Step Cycle Ending Screen ⓐ When the time for each step has expired, ⓐ ⓐ the “End” message is displayed ⓑ “Set” displays the setting value of 1 step (Default value is displayed when Step Off) Time is displayed as 0 ⓑ... -
Page 17: Event View
Basic screen Advanced screen ▶Event view ▷Door open message When the door is opened, the “Door” message is shown on the display When the door has been left open for a minute, the alarm starts ringing. NOTE: The heater and shaker are automatically stopped when the door is open. -
Page 18: Maintenance
DO NOT attempt to operate the unit until the spillage had been properly dried. ▶Service and Contact Service on the LARGE BENCHTOP SHAKING INCUBATOR WITH TOUCH PANEL<CE> should only be performed by qualified service personnel. To request service or technical support, please contact your local N-BIOTEK representative.
