Summary of Contents for N-BIOTEK NB-T101M

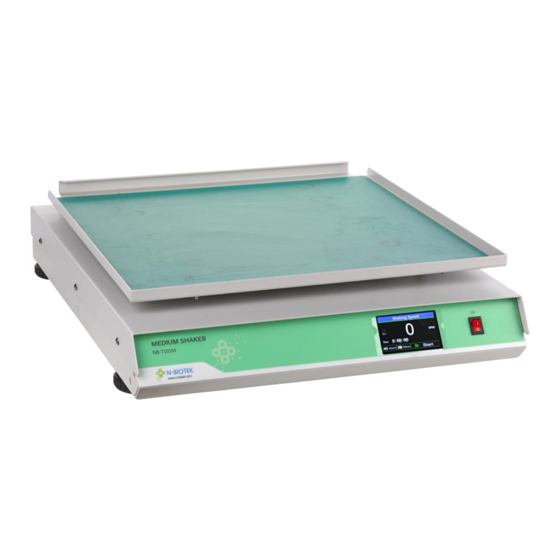

- Page 1 Operations Manual Touch Panel Medium Shaker Medium Remote Shaker Multi Shaker Combination Shaker (NB-T101M, MRC, MT, MC)
-
Page 2: Table Of Contents
Configuration of Multi Shaker Configuration of Combination Shaker Installation of Remote Shaker Installation Strap Installation Operation 9-14 Basic View Screen Advanced View Screen Shaker Step Setting HOW TO CHANGE THE FUNCTION Accessory Description Warranty NB-T101M / MRC / MT / MC (Ver.2018.12) 2/17... -
Page 3: General Information And Precautions
LP gas. (Failure to do so can result in a fire hazard.) Prevent foreign substances from contacting the door seal. (The inflow of outside air can negatively impact the temperature in chamber.) NB-T101M / MRC / MT / MC (Ver.2018.12) 3/17... - Page 4 Install the instrument on a flat and stable surface, free from vibration and in a well-ventilated location. (If the surface is not level, it can cause an excessive vibration of the product.) NB-T101M / MRC / MT / MC (Ver.2018.12) 4/17...
-
Page 5: Feature And Specification
4 x 2L flasks or 20kg Depend on spring rack 460(W)x540(D)x240(H) Dimensions 460(W)x540(D)x125(H) 460(W)x540(D)x145(H) including spring rack Power 100-120V or 210-230V / 50 or 60Hz Weight 29kg 35kg 34.5kg 38.5kg Cable Flat type NB-T101M / MRC / MT / MC (Ver.2018.12) 5/17... -
Page 6: Configuration Of Medium Shaker
N-BIOTEK www.n-biotek.com 2.3 Configuration of Medium Shaker 2.4 Configuration of Multi Shaker 2.5 Configuration of Combination Shaker NB-T101M / MRC / MT / MC (Ver.2018.12) 6/17... -
Page 7: Installation Of Remote Shaker
- In case of cable connection on remote control box, please find hollow from both cables as below. Both hollows should be connected otherwise both connectors are not well fit to each other. - Do not connect or disconnect when remote box power is on. NB-T101M / MRC / MT / MC (Ver.2018.12) 7/17... -
Page 8: Strap Installation
3.2 Strap installation * Insert the both edge of plastic strap into vent hole of remote control box. <Hanging with Hook> <Attachment with magnetics> *Hook is not a standard component. NB-T101M / MRC / MT / MC (Ver.2018.12) 8/17... -
Page 9: Operation
(Or wait 5 seconds for the value to store automatically) ⓔ Exit: If you press after changing any values, the values are not saved and the screen returns to the previous screen NB-T101M / MRC / MT / MC (Ver.2018.12) 9/17... -
Page 10: Advanced View Screen
“MENU” and choose the BASIC View. Shaker View Shaking Speed The ADVANCED View provides the user with access to the STEP mode for linking consecutive mixing cycles. Time 00 : 00 : 00 NB-T101M / MRC / MT / MC (Ver.2018.12) 10/17... - Page 11 ⓓ ⓔ ⓔ Exit: If you press button, the changed setting values are not saved and the screen turns to the previous screen. NB-T101M / MRC / MT / MC (Ver.2018.12) 11/17...
- Page 12 ▷ Alarm Disabled The alarm can be disabled by TOUCHING and holding the key for 3~5 seconds. To reactivate the alarm setting, Time 00 : 00 : 00 TOUCH the once. NB-T101M / MRC / MT / MC (Ver.2018.12) 12/17...
-
Page 13: Shaker Step Setting
ⓗ There are 3 modes available for Step Operation : “One cycle”, “Repeat Cycle”, “Step off” ⓔ ⓕ NOTE: Repeat cycle will result in continue repeating of all programmed steps until the stop button is pressed. ⓗ NB-T101M / MRC / MT / MC (Ver.2018.12) 13/17... - Page 14 ▶Service and Contact Service on the ALL MEDIUM SHAKERS WITH TOUCH PANEL<CE> should only be performed by qualified service personnel. To request service or technical support, please contact your local N-BIOTEK representative. NB-T101M / MRC / MT / MC (Ver.2018.12) 14/17...
-
Page 15: How To Change The Function
<NB-T101MC> Reciprocating Combination Orbital Motion Orbital Motion MULTI SHAKER (NB-T101MT) COMBINATION SHAKER (NB-T101MC) ● In case of NB-T101MC, Reciprocating and Orbital Motion are working individually at same time and two plate. NB-T101M / MRC / MT / MC (Ver.2018.12) 15/17... -
Page 16: Accessory Description
100ml Flask Holder x 36ea 250ml Flask Holder x 23ea 500ml Flask Holder x 16ea 101M-MP 1000ml Flask Holder x 9ea 2000ml Flask Holder x 5ea Microplate Rack<6ea> *ACCESSORIES FOR SHAKER SERIES* NB-T101M / MRC / MT / MC (Ver.2018.12) 16/17... -
Page 17: Warranty
N-BIOTEK, whichever is sooner as indicated in above table. This period is proved by serial no. 3. N-BIOTEK will not be responsible of free warranty service for the faulty caused by user’s improper operation, excessive use, use of incorrect voltage & frequency, storage in wrong environment mentioned in Manual.
