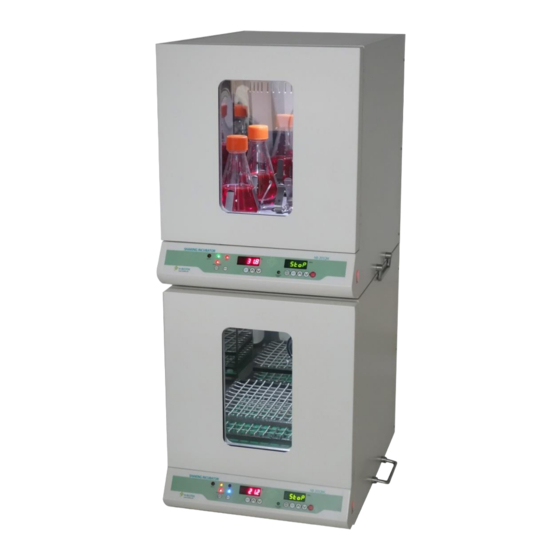

- Page 1 N-BIOTEK www.n-biotek.com OPERATING MANUAL Stackable Incubator Shaker <NB-205QM, QMC> (Version 1.) NB-205QM.QMC (Ver. 205QMQMC001) 1/17...
-
Page 2: Table Of Contents
3.3. Reversible Shaking Motion Platform (Optional) ---------------------------- 9 3.4. Shaker Connector ------------------------------------------------------------ 9 3.5. Control Panel ---------------------------------------------------------------- 10 4. INSTALLATION & OPERATION 4.1. Installation ------------------------------------------------------------------- 12 5. OPEARATION ----------------------------------------------------------------------- 14 6. ALARM AND ERROR MESSAGE -------------------------------------------------- 15 7. MAINTENANCE --------------------------------------------------------------------- 17 NB-205QM/205QMC(Ver. 1) 2/17... -
Page 3: Warranty
N-BIOTEK, whichever is sooner as indicated in above table. This period is proved by serial number. 3. N-BIOTEK will not be responsible of free warranty service for the faulty caused by user’s improper operation, excessive use, use of incorrect voltage & frequency, storage in wrong environment mentioned in manual. -
Page 4: Safety And Precaution
Keep this product out of the direct ray of sun and do not install at a hot place or a environment that is near an electric heat from other instrument. (The proper indoor temperature is 20℃ ~ 30℃.) Do not put inflammable substances and spray near and into the product except alcohol for cleaning. NB-205QM/205QMC(Ver. 1) 4/17... -
Page 5: Precaution For Use
Be sure to prevent foreign substances from getting into the sealing silicon of the door. (The inflow of open air can cause high fluctation in temperature of chamber and discoloration of the packing part by a foreign substance.) NB-205QM/205QMC(Ver. 1) 5/17... -
Page 6: Feature & Specification
Standard Plate Base Plate with non-slip rubber mat on shaker Base Plate with non-slip rubber mat on shaker *1 → This specification is based on the condition : 37℃ at 25℃(surrounding temperature) with no load on shaker NB-205QM/205QMC(Ver. 1) 6/17... -
Page 7: Configuration
Connector of Shaker Control Panel Fuse Holder <Photo 3. Thermal Cut Off & Power Cord Receptacle with Fuse Holder> Vent Holes: To cool down the heat from Peltier elements and some other electric parts <Photo 2. Back of Incubator> NB-205QM/205QMC(Ver. 1) 7/17... -
Page 8: Stacking
Then, mount an incubator above on this part. Stacking kit are fixed on the floor of this part. Once you open the above cover, you can find two kits with its screw tighten. Install the stacking kit like Photo 4. NB-205QM/205QMC(Ver. 1) 8/17... -
Page 9: Reversible Shaking Motion Platform (Optional)
3.3 Reversible Shaking Motion Platform (Optional) <Photo 6. Reciprocating Motion Type> <Photo 7. Orbital Motion Type> 3.4. Shaker Connector <Photo 9. Female Connector> <Photo 8. Connector Socket of Shaker> (At Right and Back of Internal Chamber) <Photo 10. Male Connector> NB-205QM/205QMC(Ver. 1) 9/17... -
Page 10: Control Panel
3.5. Control Panel 1) NB-205QM (Heating Only) ⓐ ⓑ ⓒ ⓓ ⓔ ⓕ ⓖ ⓗ ⓘ ⓙ ⓚ ⓛ ⓜ ⓝ ⓞ Name Function ⓐ SAFETY Indication when Thermal Cut Off Safety is Activated ⓑ Indication LAMP for the Operation ⓒ... - Page 11 ⓝ SET(SHAKER) RPM Setting and Timer Setting Button ⓞ ∧ Button for Increasing Value in RPM or TIME Setting Mode ∨ Button for Decreasing Value in RPM or TIME Setting Mode ⓟ START/STOP START or STOP Button NB-205QM/205QMC(Ver. 1) 11/17...
-
Page 12: Installation
Visually check that shaker connector is properly connected into its outlet at right back and bottom of chamber. Refer to photos of shaker connector show in the section 3.4 in page. 9. Ensure the platform is horizontally level. NB-205QM/205QMC(Ver. 1) 12/17... - Page 13 For NB-205QMC, find the drain hose at back of incubator. Place it in proper place avoiding area of electric part. Place the tray at end of tube to collect water from chamber. Regularly check the collecting tray not to overflow. NB-205QM/205QMC(Ver. 1) 13/17...
-
Page 14: Opearation
“SET” key and confirm the value flashing in display. Controllable temperature range is as followings: NB-205QM : Ambient +5℃ ~ 60℃ NB-205QMC : 15℃ ~ 60℃ 3) To set the desired time to stop shaker, press and hold the "RPM/TIME" key for approximately 2 seconds until LED displays "t 00.00". -
Page 15: Alarm And Error Message
Adjust the range like previous first mode setting and press SET button at desired value to save and to go to Third Mode. Third Mode is Tolerance Time Delay for higher or lower RPM than tolerance deviation. 60 is recommendable. NB-205QM/205QMC(Ver. 1) 15/17... - Page 16 3) This message “Error” represents an electrical error. - Machine has lost the power during the run. Solution: Check that the power cord is properly installed and restart. Check that the circuit has not been interrupted and restart. NB-205QM/205QMC(Ver. 1) 16/17...
-
Page 17: Maintenance
Disconnect the plug from electrical outlet before attempting any maintenance or repair of the unit. Do not attempt to service or repair this product under warranty before consulting your N-BIOTEK dealer. After warranty period, such consultation is still recommendable, especially when the repair may be technically sophisticated or difficult.
