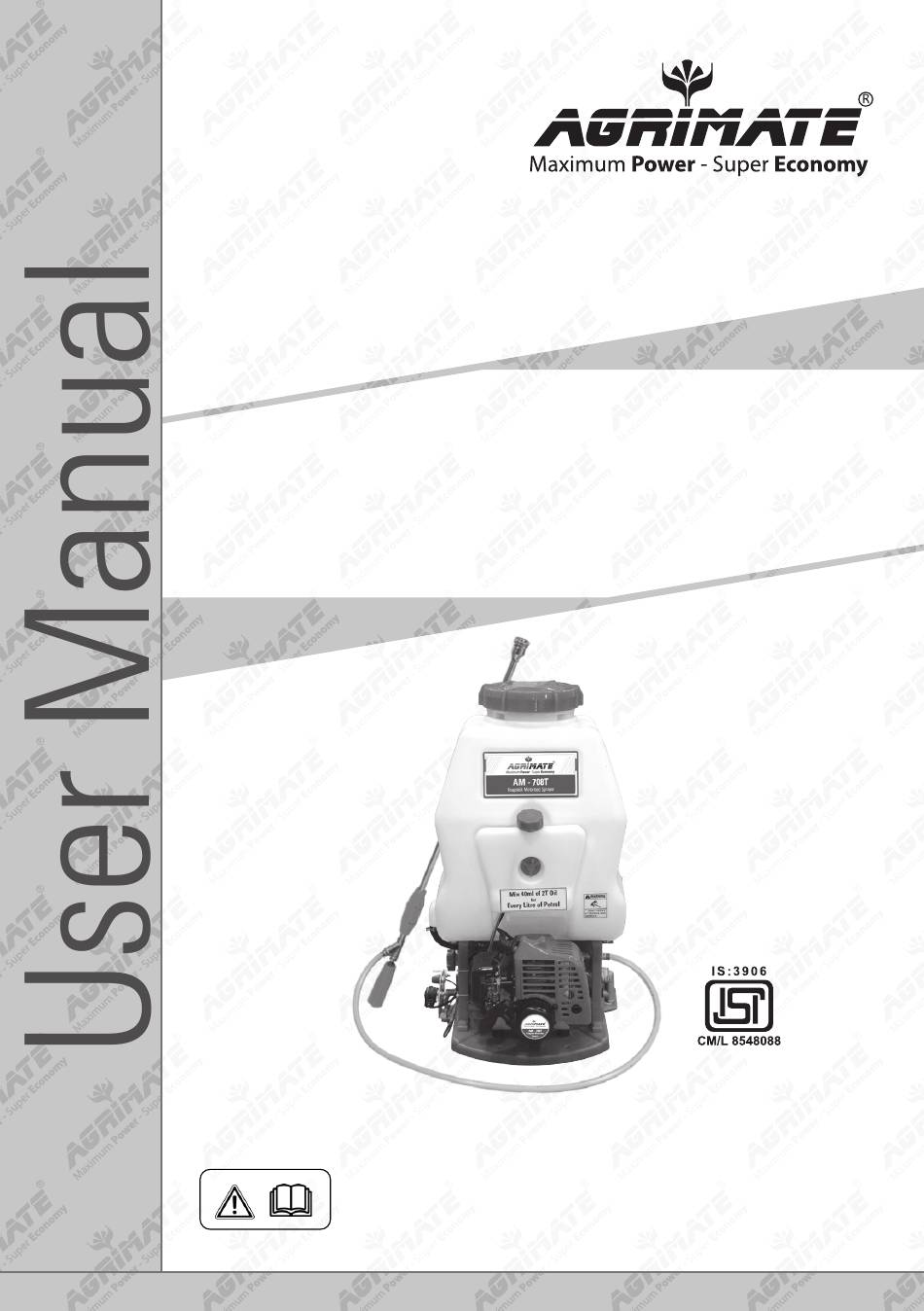

- Page 1 AM-708T Knapsack Motorised Sprayer DISCLAIMER: DUE TO CONSTANT UPGRADATION, FEATURES AND SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE BEFORE OPERATING THIS MACHINE, PLEASE READ THESE INSTRUCTIONS CAREFULLY...
-
Page 2: Safety Precautions
SAFETY PRECAUTIONS Warning labels bearing the mark on the product and in this Manual refer to important safety matters. Please familiarize your self with them and observe them well. If a warning label on the product becomes soiled or detached, please order a replacement label from your dealer and attach it in the requisite place PRECAUTIONS In this Operator's Manual, precautions that are considered to be particularly important are... -
Page 3: Specification
SPECIFICATION Model name & number AM-708T Knapsack Motorised Sprayer Spraying agricultural chemicals and cold Purpose water for pest control, weeding, and growth control Dry weight * (kg) External dimensions of main unit (length x 335x390x640 width x height)** (mm) Capacity of chemical fluid tank (litres) -
Page 4: Symbols In The Manual
SYMBOLS IN THE MANUAL (1) Read owner’s manual before operating this machine. (2) Wear head, eye and ear protection. (3) Wear foot protection. (4) Wear gloves. (5) Warning / Attention Never modify your machine. We won’t warrant the machine, if you use the remodeled power sprayer or if you don’t observe the proper usage written in the manual WARNINGS IN THE MANUAL ... -
Page 5: For Safe Operation
FOR SAFE OPERATION Before using this product, please read this Operator's Manual thoroughly to ensure correct operation. The fol-lowing are precautions that should be observed in order to use the product smoothly. Elsewhere in the Manual, the warning mark is used to bring your attention to ... - Page 6 • When using for the first time, before commencing actual spraying please receive guidance in operating the product from a person with adequate experience. • Fatigue reduces powers of concentration and in creases the risk of accidents. When planning work, please allow ample time, setting a limit of 30-40 minutes for single spraying sessions and breaks of 10-20 minutes in between.
- Page 7 WARNING 1. If you don’t observe the working time, or working manner, Repetitive Stress Injury (RSI) could occur. If you feel discomfort, redness and swelling of your fingers or any other part of your body, see a doctor before getting worse. 2.
- Page 8 • Before spraying, please prepare fully by inspecting sprayer nozzles and checking for abnormalities such as loose screws or spray hose connections, fuel leaks, defective or broken fluid gaskets, or damage to the carrying band. PRECAUTIONS WHEN TRANSPORTING CHEMICALS • When transporting chemicals, please handle with care to ensure that there is no spillage of chemicals from torn bags, broken bottles, or loose stoppers.
- Page 9 PRECAUTIONS WHEN REFILLING CHEMICALS • Before filling the tank with chemicals, please make sure that the spray lever is completely at rest. • After chemical refilling, firmly tighten the tank cap. If not fully tightened the cap may become loose during spraying, with the risk of physical exposure to the chemicals. PRECAUTION WHEN STARTING THE ENGINE •...
- Page 10 PRECAUTIONS AFTER SPRAYING • Please seal unused chemicals and store them out of the reach of children. • Do not simply discard empty chemical containers, but dispose of them safely by incinerating, burying, or another similar method. In addition, please take every care that the water used to clean spraying tools does not create any hazard.
-
Page 11: Maintenance Precautions
MAINTENANCE PRECAUTIONS • In order to maintain the functions of the product, regularly carry out the maintenance inspections listed in this Manual. When maintenance or parts replacement not indicated in this Manual are required, please consult your product supplier or nearest our product dealer. •... - Page 12 1. Connect the spray hose to the pump spray outlet and firmly tighten the connecting nut. 2. Tightly screw the joint onto the hose. 3. Tightly screw the grip onto the joint. 4. Tightly screw the cock onto the grip. 5.
-
Page 13: How To Mix Fuel
FUEL WARNING • Gasoline is very flammable. Avoid smoking or bringing any flame or sparks near fuel. Make sure to stop the engine and allow it cool before refueling the unit. Select outdoor bare ground for fueling and move at least 3 m (10 ft) away from the fueling point before starting the engine. •... -
Page 14: Fueling The Unit
4. Pour in the rest of gasoline and agitate again for at least one minute. As some oils may be difficult to agitate depending on oil ingredients, sufficient agitation is necessary for the engine to last long. Be careful that, if the agitation is insufficient, there is an increased danger of early piston seizing due to abnormally lean mixture. -
Page 15: Chemical Filling
CHEMICAL FILLING WARNING • Chemical substances should be handled correctly, observing the precautions marked on the container. Some chemicals are extremely hazardous to humans and animals, and handling errors can cause serious poisoning or even fatal accidents. • When not in use, chemical substance containers should be stored separately from other containers out of the reach of children. - Page 16 CHEMICAL FILLING WARNING • Before starting the engine, make sure that the spray lever (spray valve) is completely returned. Starting with the spray lever still pulled out is dangerous, as chemical fluid may spray out of the nozzle as soon as the engine is started. •...
- Page 17 g. throttle lever h. fast i. slow NOTE • When restarting immediately after stopping the engine, set the choke lever to "open" and the throttle lever to "slow". 3. Place the sprayer in a stable location, and pull the starter knob with the right hand while holding the chemical tank down with the left hand.
- Page 18 a. Stop switch IMPORTANT • Except for an emergency, avoid stopping the engine while pulling the throttle trigger. • Spraying WARNING • Please use correctly, observing the precautions in this Manual ("For Safe Operation", p5 to 7). • Before lifting the sprayer onto your back, check that the chemical tank and fuel tank caps are tightly closed.
-
Page 19: Maintenance
a. Fluid drain cap • Disposal When disposing your machine, fuel or oil for the machine, be sure to allow your local regulations. MAINTENANCE Every Every Every System/ Before Procedure Note components hours hours hours after after after fuel leaks, fuel wipe out ... - Page 20 WARNING • Make sure that the engine has stopped and is cool before performing any service to the machine. Contact with hot muffler may result in a personal injury. • Do not modify the sprayer or dismantle the engine. •...
- Page 21 • After every 50 hours of operation, detach the spark plug and remove dirt from the electrodes with a wire brush or similar. • The correct electrode gap is 0.6 to 0.7mm. • When replacing plugs, please use designated items. IMPORTANT •...
- Page 22 • Turn the idling adjustment screw: - counter-clockwise to reduce engine speed - clockwise to increase engine speed NOTE • Warm up the engine before adjusting the idling speed. • Throttle wire play Throttle wire play should be 1 to 2 mm. After completely returning the throttle lever, take the throttle wire at the carburetor end in your fingers and give a light tug.
-
Page 23: Intake Air Cooling Vent
INTAKE AIR COOLING VENT WARNING • Never touch the cylinder, muffler, or spark plugs with your bare hands immediately after stopping the engine. The engine can become very hot when in operation, and doing so could result in severe burns. •... - Page 24 STORAGE WARNING • When draining fuel, please be careful not to spill it. If fuel is spilt, wipe off thoroughly. In addition, please be sure to close the storage container cap tightly. IMPORTANT • If fuel is left in the engine for protracted periods, the inside of the carburetor may become clogged and cause engine malfunction (faulty starting and insufficient output).
-
Page 25: Troubleshooting Guide
TROUBLESHOOTING GUIDE Case 1. Starting failure CHECK PROBABLE CAUSES ACTION ∅ incorrect fuel ∅ drain it and use correct fuel fuel tank ∅ fuel filter is clogged ∅ clean fuel filter ∅ out of normal range ∅ adjust to normal range carburetor adjustment screw ∅... - Page 26 KNAPSACK MOTORISED SPRAYER AM262 ENGINE DIAGRAM...
- Page 27 Knapsack Sprayer Engine Part List Part No. Part Name Part No. Part Name AM262-1 Cylinder Cover AM262-29 Sarter Plate AM262-2 Screw AM262-30 Drive Plate Rachet AM262-3 Screw AM262-31 Drive Plate Spring AM262-4 Muffler AM262-32 Drive Plate AM262-5 Screw AM262-33 Open Washer AM262-6 Muffler Gasket AM262-34...
- Page 28 KNAPSACK MOTORISED SPRAYER PLUNGER PUMP ASSEMBLY...
- Page 29 KNAPSACK SPRAYER PUMP PART LIST Part No. Part Name AM708TP-31 AM708TP-32 Elbow AM708TP-1 Connector for inlet AM708TP-33 pipe clip D18 AM708TP-2 Plug AM708TP-34 Right body of pump AM708TP-3 Screw AM708TP-35 Input pipe AM708TP-4 One-way valve AM708TP-36 Needle cage AM708TP-5 Left body valve AM708TP-37 Gear shaft 11T AM708TP-6...
- Page 30 KNAPSACK MOTORISED SPRAYER TANK DIAGRAM...
- Page 31 KNAPSACK MOTORISED SPRAYER TANK PART LIST AM 708TT-30 Bolt Part No. Part Name AM 708TT-31 Connetor AM 708TT-1 Tamk AM 708TT-32 Eugine AM 708TT-2 Label AM 708TT-33 Hose AM 708TT-3 Cushior AM 708TT-34 Belt AM 708TT-4 Returhose AM 708TT-35 Sprayer gun AM 708TT-5 Clip AM 708TT-36...
-
Page 32: Inspection And Maintenance
INSPECTION & MAINTENANCE For safety use, make sure the machine is cleaned every three-months. Before working, make sure to inspect the filter and the nozzle,and ensure there is no impurity. After working, make sure there is no water in the pump and the hose. If the machine needs to be repaired in the guarantee period, please return the machine to the shop. - Page 33 CUSTOMER COPY Date Date of Delivery Purchaser’s Name & Address Dealer’s Office Seal Product Name AM-708T Knapsack Motorised Sprayer Dealer Sign Product Serial No. Customer Sign. Invoice / DN No. I/We accept the terms and conditions of Warranty as in the Warranty Card.
- Page 34 1. LIMITED WARRANTY PERIOD : For a period of six months from the date of Sale / delivery of the product which ever is earlier. 2. LIMITED WARRANTY OBLIGATION : Replacement of defective part(s) by authorized dealer are free of charges. If found defective by reasons of defective material / poor workmanship, parts will be replaced and there will be no value re-imbursement.
- Page 35 1st Free Service Coupon ISO 9001-2008 CERTIFIED COMPANY FREE SERVICE COUPON (30 Days / 20 hrs (Which ever is earlier) Model Serial Number AM-708T Knapsack Motorised Sprayer PDI Date Service No. Purchase bill no. Date Dealer’s Office Seal Operations: • Check and Test the Fuel Mixture.
- Page 36 Small Maintenance. Big Savings. Small Maintenance. Big Savings. Small Maintenance. Big Savings.
- Page 37 Do’s Don’ts • Always read the instruction manual supplied along with the equipments and understand the correct installation and operating procedures before attempting to use the equipments. • It is important to use the personal protection equipments such as head helmet with visor, ear defenders, goggles, safety gloves, cut resistant shoes, trousers and jackets while operating potentially dangerous machines.
- Page 38 Agrimate Army For Pest Control ANY WHERE - ANY TIME - ANY CROP RATNAGIRI IMPEX PVT LTD Annapurna House, #1/1G, 7th Cross, New Guddadahalli Mysore Road, Bangalore-560 026 Customer Care: 1800-425-7475 email: customercare@ratnagiriimpex.com www.ratnagiriimpex.com AN ISO 9001:2008 CERTIFIED COMPANY...
