Summary of Contents for ZEROXCLUB ERY01

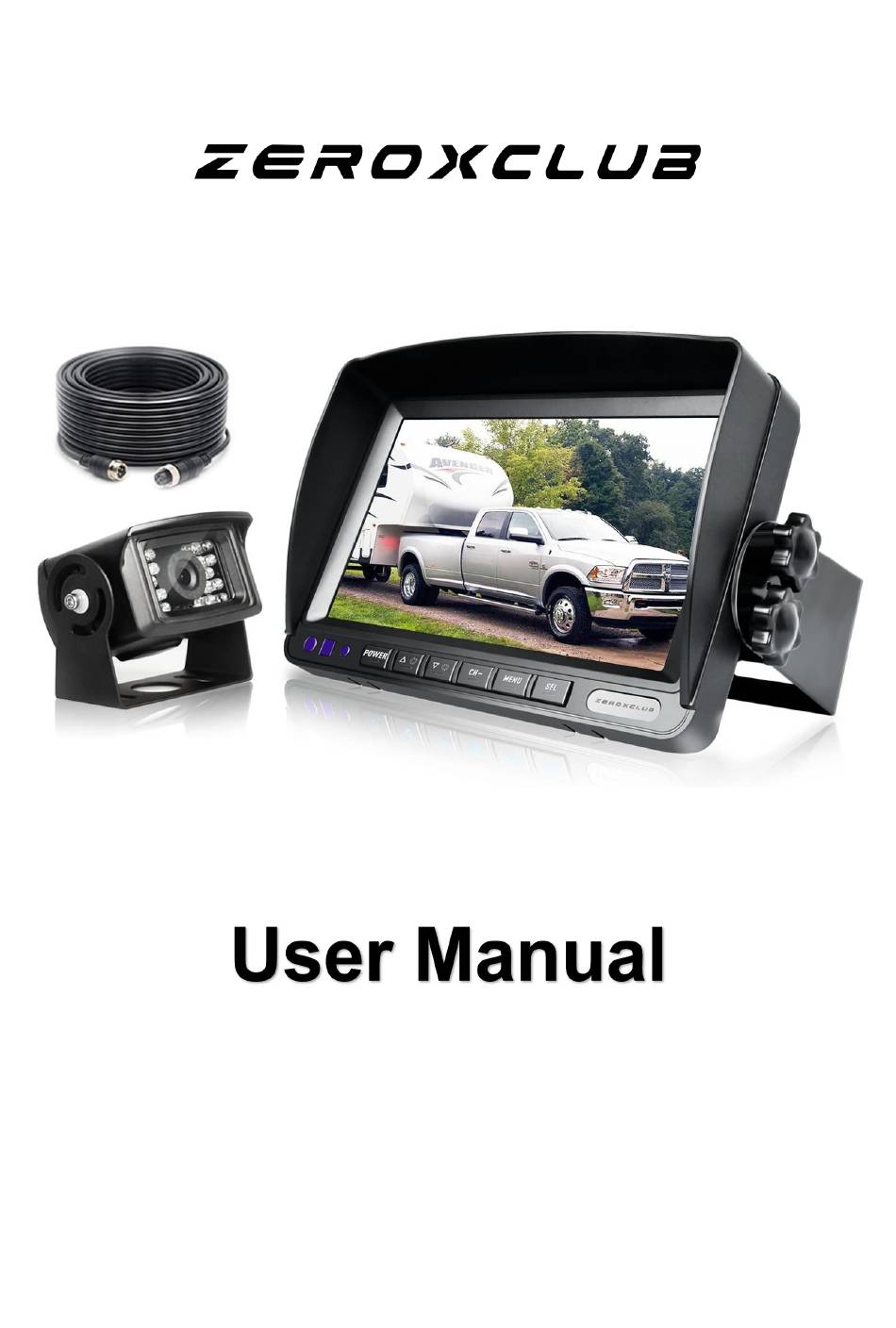

- Page 1 ZEROXCLUB Instructions Manual Wired Backup Camera System Model # ERY01 Any questions or suggestions please send an email to customer service via sales@uszeroxclub.com...
-
Page 2: Before Using
ZEROXCLUB Instructions Manual Before Using Make sure you have the following listed items included in the packaging. If any item is damaged or missing, contact us at sales@uszeroxclub.com. It would be better if you wrote the order number from Amazon include photos of the damaged or missing part in your email, so that we can handle the problem much more quickly. - Page 3 ZEROXCLUB Instructions Manual Test the System To ensure that all components are working properly, please test the system before installation. 1. When the monitor is powered, the indicator light and buttons will light to indicate that the monitor is on and ready to work.
-
Page 4: Table Of Contents
ZEROXCLUB Instructions Manual Table of contents Before Using ................II 1. Safety Information .............2 2. Installation ................. 3 3. Operation ................7 4. Display Settings ..............9 5. FAQ ..................9 6. Troubleshooting ..............11 7. Warranty ................15... -
Page 5: Safety Information
● Do not disassemble or attempt to repair any part of the camera system. ● There are no user-serviceable parts inside the ZEROXCLUB camera system. Contact ZEROXCLUB customer service at sales@uszeroxclub.com if the part is ever compromised ●... -
Page 6: Installation
ZEROXCLUB Instructions Manual Installation 2.1 Installation Safety Precautions • Ensure the power supply circuit has circuit protection • Connect the rear camera to a 12-32V DC circuit only • Use insulated tools when working with power supply • Use correct safety equipment when working at elevated levels •... - Page 7 ZEROXCLUB Instructions Manual The wiring method when product use, as follows: (1) Connect the wire to ACC / DC 12V Battery / Reversing light / Driving light. wire is connected to the car ignition wire ACC switch (which is the gear switch before starting up the car's motor), when the car key is turned on, the device will start automatically, and if the vehicle key is turned off, it will automatically turn off.
- Page 8 ZEROXCLUB Instructions Manual sales@uszeroxclub.com if you have any question anytime. NOTE: 1) The system will remember your settings and no need to set it again next time you use. But the settings of each camera are not universal. (when you connect two cameras) 2) Before connecting, you need to confirm that the voltage of the battery is between 12-32V.
- Page 9 ZEROXCLUB Instructions Manual 1. Put the little iron sheet upon screw and fasten two turn to fix a bit 2. Adjust it into a square and slide into the groove 3. Tighten the knob to the right U-Shaped Mount Installation: 1.Put on the sunshade as the...
-
Page 10: Operation
ZEROXCLUB Instructions Manual 2.5 Install the camera 2.5.1 Adjust Camera Angle Adjust the camera to the correct angle as needed. ●The camera should be adjusted to a horizontal position relative to the ground in order to provide the best view of the objects behind the vehicle. - Page 11 ZEROXCLUB Instructions Manual ①POWER A power button turns the display device on or off. A Increase/Brightness Adjustment button. Select ②△☼ forward in display operation. A Decrease/Brightness Adjustment button. Select ③▽☼ backward in display operation. A Channel Switch button. ④CH- A Menu button. Settings for Brightness / Contrast / ⑤MENU...
-
Page 12: Display Settings
ZEROXCLUB Instructions Manual 3.2 Operate the Mini Remote Control The system comes with a mini remote control, only need to unplug the transparent plastic sheet at the bottom, you can use it. 4.Display Settings Display settings allow you to adjust various aspects of your display to ensure that the display works well with your camera. - Page 13 ZEROXCLUB Instructions Manual Touch Menu button 3 times: enter COLOR adjust mode, touch △ ☼ / ▽ ☼ to increase/decrease the value, wait a few seconds to confirm and exit setup mode automatically. Touch Menu button 4 times: enter adjust mode, touch △☼/▽☼...
-
Page 14: Faq
ZEROXCLUB Instructions Manual Touch Menu button 8 times: enter GUIDE LINES mode, touch △☼/▽☼ to turn on/off the guidelines, wait a few seconds to confirm and exit setup mode automatically. Touch Menu button 9 times: enter LANGUAGE adjust mode, touch △... - Page 15 ZEROXCLUB Instructions Manual Monitor No Power -Car Engine Has Not Been Started. Start the Car Engine. -Incorrect Wiring Connection. Check the Wiring. -Monitor Power is 0ff in Default, Press Power Button on Monitor to Turn on. Press the monitor's power button waiting 2-4 seconds then to see if there is any image.
- Page 16 ZEROXCLUB Instructions Manual If it still can't work well after try, please contact us in time at sales@uszeroxclub.com with your Amazon order ID and the issue picture, we will help you solve it. Blurry camera -Check the external lenses. Fix this by simply wiping off the dirt.
- Page 17 ZEROXCLUB Instructions Manual If there is still no improvement, maybe the screen has been subjected to some collision during transportation or use, please contact us in time at sales@uszeroxclub.com with the video/picture of the issue and your Amazon Order ID.
-
Page 18: Warranty
ZEROXCLUB Instructions Manual 7.Warranty ZEROXCLUB offers a full 12 months warranty and replacement policy. We also provide lifetime technical support to ensure that you enjoy your modern backup camera for many years to come. To obtain warranty support, or if you are not satisfied in any way, or have any issues with your purchase, please contact us first for help, we will try our best to make you satisfied.
