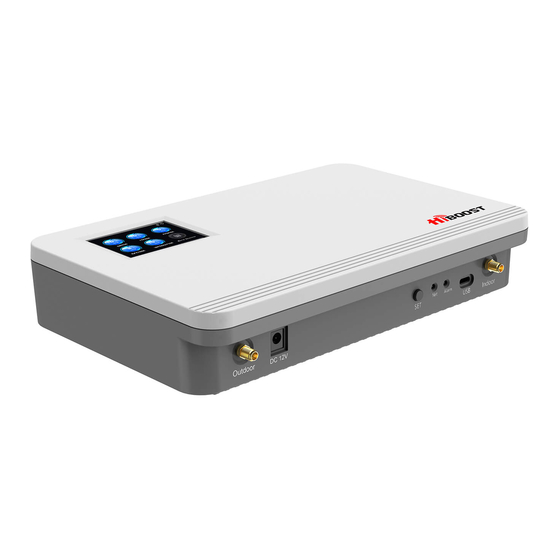

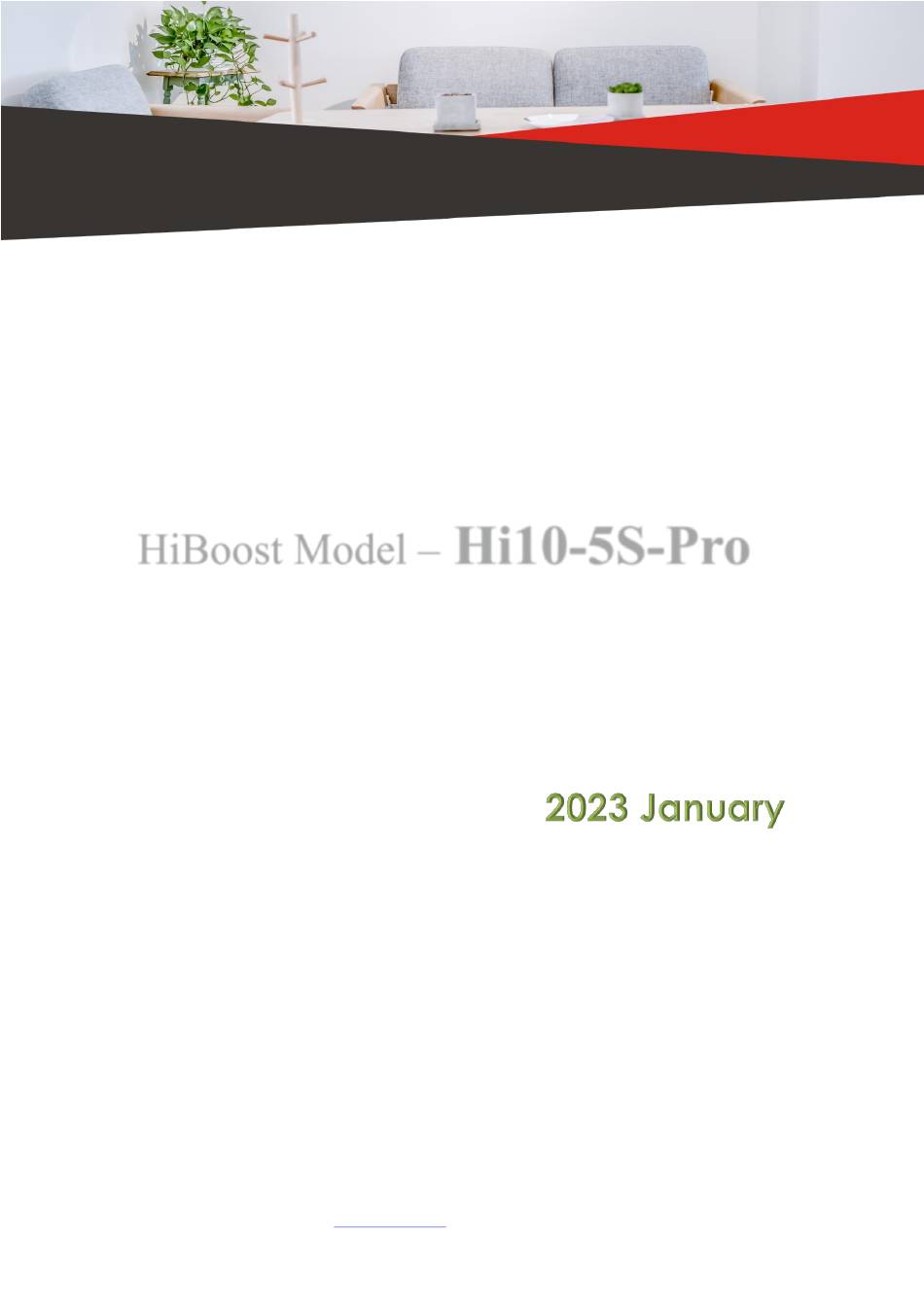

- Page 1 User Manual HiBoost Model – Hi10-5S-Pro E-mail: sales2@huaptec.eu website: www.hiboost.com/eu...
-
Page 2: Table Of Contents
Product Warranty ............................18 Huaptec Contact Way ............................ 19 Preface This user manual describes design, installation, commissioning and maintenance of HiBoost professional signal boosters. Please read user manual carefully before installing and maintaining the boosters. The information in this manual is subject to change without prior notice. Suggestions are... -
Page 3: Glossary Of Terms
Booster Model The user manual can be used for the models as below: Hi10-5S-Pro Note: The users of repeaters should get permission from the mobile providers for the use and installation of the repeater Glossary of Terms... - Page 4 Any operation should be carried out only after cutting off power in advance. Only the professional user is authorized for the operation. Do not dismantle the machine, maintain or displace accessories by yourself. In this way, the equipment can be damaged and you can even get an electric shock. Do not open the booster, touch the module of booster, or open the cover of module to touch the electronic component.
-
Page 5: Overview
Overview Hiboost professional boosters are designed to help mobile users to amlify weak cell phone signal. The devices are bi-directional. The outdoor antenna receives the signal from the cell tower and transmits it to the signal booster, the booster amplifies the signal and the indoor antenna sends it to your mobile device. Visa versa, the signal produced by your phone is also received by the indoor antenna, amplified by the booster, and then sent back to the cell tower through the outdoor antenna. -
Page 6: Package Contents
European Standard Plug Plastic expansion bolt M6*50 Tapping screw Hanging folder Booster mount hardware User Manual Hi10-5S-Pro HiBoost Professional Signal Booster optional panel pro kit/omni pro kit includes the following accessories: Name Description Quantity Outdoor directional Antenna N-Female Hiboost 5D low-loss cable... -
Page 7: Booster Operation Guide
ALC: Intelligent automatic level control, quite wide adjusting range to stabilize the output power and improve the signal quality for clearer voice and higher data throughput. LCD Display: Displays each of Sub-Band status, actual gain, uplink and downlink output power which makes booster installation and troubleshooting much easier. -
Page 8: Warning Message Interface
Warning Message Interface Repeater system will strictly check Self-oscillation degree for all of sub-band and firstly will show abnormal status (Orange) in Menu page, ISO and ALC function would auto generate and if user enter into the soft Self-oscillation sub-band, user could check more details about Self-oscillation with recommend info. - Page 9 Coverage Antenna Mode We design one coverage antenna change switch for “SET” button. he default working mode is Built-in service antenna mode, if customer hope to using external indoor antenna mode, it can press "SET" button 5 seconds, then it will change to external indoor antenna mode;...
-
Page 10: Install Hiboost Booster System
Make sure the place where you install the booster is near to one existing electrical outlet. It should also be well ventilated, away from excessive heat, moisture, and direct sunlight. Hi10-5S-Pro installation tools and accessories Num. Name Specification... -
Page 11: Booster System Installation Examples In The Next Page Corresponding To The Picture
the local cellular towers. It should also be as far away as possible from where you plan to place the indoor antenna (vertical separation is more important than horizontal separation). 3) Install the indoor antennas where you want to improve the signal level. 4) Mount the booster, connect the cables from the outdoor antenna and indoor antenna at the designated ports, and connect the booster to the AC supply (make sure all the cables are connected before applying power). - Page 12 Step 1. Installation of Outdoor Antenna 1.1 How to find the location with the strongest received signal The booster's main function is to improve a weak RF signal inside a house, office or any other indoor area. The received outdoor downlink signal strength directly affects the efficiency of the indoor coverage.
- Page 13 an outdoor wide- band panel antenna as an option. Pole mounting is recommended for your convenience: Outdoor Wide Band Directional Antenna Installation: Note: Wrap waterproof tape around the connectors between outdoor antenna and feeder line to avoid water or other kinds of damage. Step 2.
- Page 14 Mount the booster with the screws included into the kit as shown on the graph below. Connect the outdoor antenna cable to booster connector marked as "outdoor". Tighten the connection by hand or with a wrench. Connect the indoor antenna cables to booster connector marked as "indoor". Tighten the connection by hand or with a wrench.
-
Page 15: More About "Alarm" Legend Indication
More about "Alarm" legend indication Alarm Status: indicates if the booster has enough isolation between outdoor and indoor antennas in order to avoid loop back or so-called self-oscillation. Hiboost is an ideal mechanism. Smart AGC, to avoid interference with operator mobile networks. "Alarm"... -
Page 16: Troubleshooting
Mobile is connected to booster Green Working properly. through Bluetooth/Wi-Fi status Mobile is not connect to Not working properly, please booster through contact with Huaptec EU for Bluetooth/Wi-Fi assistance. Troubleshooting Problem Solution The signal booster has no power. Check that the AC outlet is working. Try to fasten the connections between the different parts of the The booster's power is on but the phone is not connected to the system. -
Page 17: Main Specification
• The weak downlink signal leads to the low output signal level. Change the direction or position of the outdoor antenna. You may also try replacing the outdoor antenna with a higher gain antenna to increase the incoming signal. • Check to see if it is necessary to add more indoor antennas. -
Page 18: Product Warranty
All Hiboost products that are packaged with Hi boost accessory products are intended for use and resale as a single unit, and such product kits are required to be sold to the end users or subsequent reseller as packaged. -
Page 19: Huaptec Contact Way
3rd FL, E BLDG, Sogood Science Address: Address: ， Park, Hangkong Road, Xixiang, Herderstr. 94, 40721 Hilden, 6210 N. Belt Line Rd. Ste. 110, Irving, Bao'an, Germany TX, 75063 Shenzhen, China 518102 E-mail :tech@huaptec.com E-mail:sales2@huaptec.eu E-mail:info@hiboostusa.com Website:www.huaptec.com Website:www.hiboost.com/eu Website:www. hiboost.com 19 / 19...
