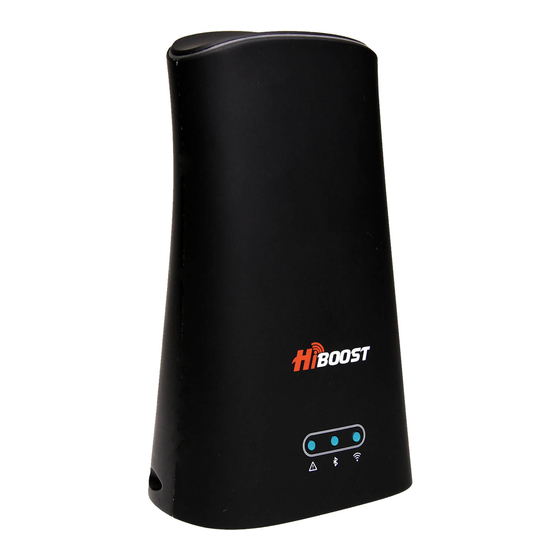

- Page 1 Boost Your Bars User Manual Mini Zoom F08GI-5S-BTW F08GI-5S-Pro...
-
Page 2: Table Of Contents
Table of Contents Package Content ................2 Introduction ..................3 How Signal Boosters Work ............... 4 Pre-Installation Instructions ............. 5 Installation – Signal Supervisor App ..........6 Installation – Manual Method ............7 FCC and IC Statements ..............16 Technical Specifications ..............17 Return and Warranty Policies ............ -
Page 3: Package Content
Zoom Model Number F08GI-5S- BTW F08GI-5S-PRO Coverage Size 500-2,000 Sq. Ft. 800-3000 Sq. Ft. Indoor Cable 30 Ft. Low-Loss HiBoost 200 30 Ft. Low-Loss HiBoost Cable 200 Cable 30 Ft. Low-Loss HiBoost 200 50 Ft. Low-Loss HiBoost Outdoor Cable Cable... -
Page 4: Introduction
Introduction Thanks again for purchasing a HiBoost cell phone signal booster. Our cell phone boosters are precision-engineered products that improve cellular reception inside of homes and office by amplifying incoming and outgoing cellular signal. HiBoost’s exclusive cloud-based Signal Supervisor mobile application allow users to monitor the live status of HiBoost cell phone signal boosters remotely from a mobile device anywhere at any time. -
Page 5: How Signal Boosters Work
How Signal Boosters Work... -
Page 6: Pre-Installation Instructions
The cell phone booster and the antennas must be strategically placed in order to perform and provide maximum coverage. The HiBoost Signal Supervisor app will allow users to communicate to the signal booster via Bluetooth or WiFi. Once registered, the user can remotely monitor the signal booster’s performance. -
Page 7: Installation - Signal Supervisor App
Step 2: Create a New Account and Log-in Launch the app on your mobile device • • Select the HiBoost Server • Log-in with an existing account create a new one Step 3: Register the Booster by adding a device on the home menu Go to My Devices >... -
Page 8: Installation - Manual Method
(972) 870-5666. Below are installation instructions on how to install the mounting bracket. If you buy HiBoost Mini, please follow the steps below to install the outdoor antenna with the mounting hardware included in the kit. - Page 9 If you buy HiBoost Zoom, please follow the steps below to install the outdoor antenna with the mounting hardware included in the kit. Part B) Indoor Antenna Installation While determining where to install the indoor panel antenna, please ensure that there is at least 20 ft of vertical separation between the outdoor and indoor antenna.
- Page 10 Follow the steps below to install the indoor antenna. 1. Connect the indoor antenna to the booster using the coaxial cable. 2. Push the cable firmly into the jack on both the antenna and the booster, then turn the connector sleeve clockwise until the connectors are tight.
- Page 11 The outdoor signal strength will affect performance. It is important that users install the outdoor antenna in the right position on a mast that is mounted outside from the roof, balcony or ground. It may help to visit an online resource such as www.cellmapper.net, www.cellrecption.com www.antennasearch.com 1.
- Page 12 Part C) Finalize the Booster Installation Finalize the booster installation by following the steps below: 1. Users can mount or place the signal booster in a dry and cool area that is easily accessible for maintenance as below (it should be located near a power outlet).
- Page 13 Professional tips • Be careful while routing and bending cable – protect the connector by wrapping and securing a towel around the end of the cable • Keep horizontal cables straight and secure with zip-ties every 3-5 feet • Keep vertical cables straight and secure with zip-ties every 6-8 feet •...
- Page 14 Troubleshooting Guide Eliminate ISO LED Indicator Quick Flashing Blue, Quick Flashing Red problems: Adjust the outdoor antenna direction, keep it away from the indoor antenna – restart the booster Increase the vertical or horizontal distance between the outdoor antenna and the indoor antenna – restart booster Use metal or wall barriers to increase the isolation between the indoor and outdoor antennas –...
- Page 15 Wi-Fi LED SLOW FLASHING BLUE WIFI CONNECTED If you have any issues installing your HiBoost Booster, please contact our technical support team. 24/7 Online Support: Create a ticket or chat via Signal Supervisor App Phone: (972) 870-5666 (M-F from 9 am – 5 pm) Email: support@hiboostusa.com...
-
Page 17: Fcc And Ic Statements
Consult the dealer or an experienced radio/TV technician for help Changes or modifications not expressly approved by HiBoost could void the user’s authority to operate the equipment. For a complete list of antennas and cables approved for use with these boosters see Authorized Kitting Options FCC 27.50(d)(4) Statement: Fixed, mobile, and portable (handheld) stations operating in the 1710-... - Page 18 https://www.uscellular.com/uscellular/support/fcc-booster-registration.jsp https://www.sprint.com/legal/fcc_boosters.html https://www.verizonwireless.com/solutions-and-services/accessories/register-signal-booster/ https://support.t-mobile.com/docs/DOC-9827 https://securec45.securewebsession.com/attsignalbooster.com/ IC Statement: This device complies with Innovation, Science and Economic Development Canada ICES-003 Compliance Label: CAN ICES-3 (B)/ NMB-3(B). Le présent appareil est conforme Innovation, science et développement économique Canada ICES-003 Étiquette de conformité: CAN ICES-3 (B) / NMB-3 (B).
-
Page 19: Technical Specifications
30-days with proof of purchase. Please contact the HiBoost customer support. 3-Year Warranty: HiBoost signal boosters and kits are warranted for 3 years. HiBoost will repair or replace the unit and will cover the cost of delivery for consumers located within the continental U.S and Canada. - Page 20 This warranty does not apply to any signal boosters or kits determined by HiBoost to have been subjected to tampering, misuse, abuse, neglect, or mishandling that alters or damages physical or electronic properties. HiBoost is not liable for any Signal Supervisor application network connectivity issues.
- Page 22 HiBoost 6210 N Beltline Rd. #110 Irving, TX 75063 www.hiboost. (972) 870-5666 support@hiboostusa.com www.hiboost.com...
