User Manual 02P
HiBoost Boos ter –
Hi10-EGSM,
i13-ENR700, Hi13-EW, Hi13-ED, Hi13-3S-IOT (Hi13-EDW-IOT), Hi13-3SL-IOT, Hi13-5S-IOT, Hi17-EW,
Hi17-3S-IOT(Hi17-EDW-IOT), Hi17-3SL-IOT, Hi17-5S-IOT, Hi13-EL800, Hi17-EL800, Hi23-ENR700.
HiBoost Professional Signal Boosters
Manuel de l'Utilisateur 16P
HiBoost Booster –
Hi10-EGSM, Hi10-3S-IOT (Hi10-EDW-IOT), Hi13-LTE800, Hi13-EGSM, Hi13-DCS, H
i13-ENR700, Hi13-EW, Hi13-ED, Hi13-3S-IOT (Hi13-EDW-IOT), Hi13-3SL-IOT, Hi13-5S-IOT, Hi17-EW,
Hi17-3S-IOT(Hi17-EDW-IOT), Hi17-3SL-IOT, Hi17-5S-IOT, Hi13-EL800, Hi17-EL800, Hi23-ENR700.
Amplificateurs de Puissance Professionnels HiBoost
Betriebsanleitung 32P
HiBoost Booster –
Hi10-EGSM, Hi10-3S-IOT (Hi10-EDW-IOT), Hi13-LTE800, Hi13-EGSM, Hi13-DCS,
Hi13-ENR700, Hi13-EW, Hi13-ED, Hi13-3S-IOT (Hi13-EDW-IOT), Hi13-3SL-IOT, Hi13-5S-IOT, Hi17-EW,
Hi17-3S-IOT(Hi17-EDW-IOT), Hi17-3SL-IOT, Hi17-5S-IOT, Hi13-EL800, Hi17-EL800, Hi23-ENR700.
Professionelle HiBoost Signalverstarker
Manuale d'uso 46P
HiBoost Booster –
Hi10-EGSM, Hi10-3S-IOT (Hi10-EDW-IOT), Hi13-LTE800, Hi13-EGSM, Hi13-DCS,
Hi13-ENR700, Hi13-EW, Hi13-ED, Hi13-3S-IOT (Hi13-EDW-IOT), Hi13-3SL-IOT, Hi13-5S-IOT, Hi17-EW,
Hi17-3S-IOT(Hi17-EDW-IOT), Hi17-3SL-IOT, Hi17-5S-IOT, Hi13-EL800, Hi17-EL800, Hi23-ENR700.
Amplificatore di Segnale HiBoost Professional
Manual de Usuario 60P
HiBoost Booster –
Hi10-EGSM, Hi10-3S-IOT (Hi10-EDW-IOT), Hi13-LTE800, Hi13-EGSM, Hi13-DCS,
Hi13-ENR700, Hi13-EW, Hi13-ED, Hi13-3S-IOT (Hi13-EDW-IOT), Hi13-3SL-IOT, Hi13-5S-IOT, Hi17-EW,
Hi17-3S-IOT(Hi17-EDW-IOT), Hi17-3SL-IOT, Hi17-5S-IOT, Hi13-EL800, Hi17-EL800, Hi23-ENR700.
Amplificadores de serial profesionales HiBoost
Hi10-3S-IOT (Hi10-EDW-IOT), Hi13-LTE800, Hi13-EGSM, Hi13-DCS, H
MADE BY HUAPTEC

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Hi10-EGSM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for HiBoost Hi10-EGSM

  • Page 1 Hi17-3S-IOT(Hi17-EDW-IOT), Hi17-3SL-IOT, Hi17-5S-IOT, Hi13-EL800, Hi17-EL800, Hi23-ENR700. HiBoost Professional Signal Boosters Manuel de l’Utilisateur 16P HiBoost Booster – Hi10-EGSM, Hi10-3S-IOT (Hi10-EDW-IOT), Hi13-LTE800, Hi13-EGSM, Hi13-DCS, H i13-ENR700, Hi13-EW, Hi13-ED, Hi13-3S-IOT (Hi13-EDW-IOT), Hi13-3SL-IOT, Hi13-5S-IOT, Hi17-EW, Hi17-3S-IOT(Hi17-EDW-IOT), Hi17-3SL-IOT, Hi17-5S-IOT, Hi13-EL800, Hi17-EL800, Hi23-ENR700. Amplificateurs de Puissance Professionnels HiBoost Betriebsanleitung 32P HiBoost Booster –...
  • Page 2: Table Of Contents

    Features ..............................6 Booster Ports' Description ..........................7 LCD Introduction............................7 Control Button and Manual Gain Control (MGC) ................8 Install HiBoost Booster System ........................9 Before You Install .............................9 Installation Overview ..........................9 Booster System Installation Examples ....................9 Step 1. Installation of Outdoor Antenna ....................9 Step2.Installthe Indoor Antenna......................10...
  • Page 3: Preface

    The information in this manual is a subject to change without prior notice. Booster Model The user manual can be used for the following models: Hi10-EGSM, Hi10-3S-IOT (Hi10- EDW-IOT), Hi13-LTE800, Hi13-EGSM, Hi13-DCS, Hi13-ENR700, Hi13-EW, Hi13-ED, Hi13- 3S-IOT (Hi13-EDW-IOT), Hi13-3SL-IOT, Hi13-5S-IOT, Hi17-EW, Hi17-3S-IOT(Hi17-EDW- IOT), Hi17-3SL-IOT, Hi17-5S-IOT, Hi13-EL800, Hi17-EL800, Hi23-ENR700.
  • Page 4 The new HiBoost generations are self-regulating and switch themselves off in critical situations because they are equipped with C.A.S. (automatic shutdown control). If...
  • Page 5: Hiboost Booster Overview

    HiBoost Booster Overview HiBoost consumer boosters are designed to amplify a weak mobile signal indoors. The devices are bi-directional. The outdoor antenna receives the signal from the cell tower and transmits it to the signal booster, the booster amplifies the signal and the indoor antenna sends it to your mobile device.
  • Page 6: Features

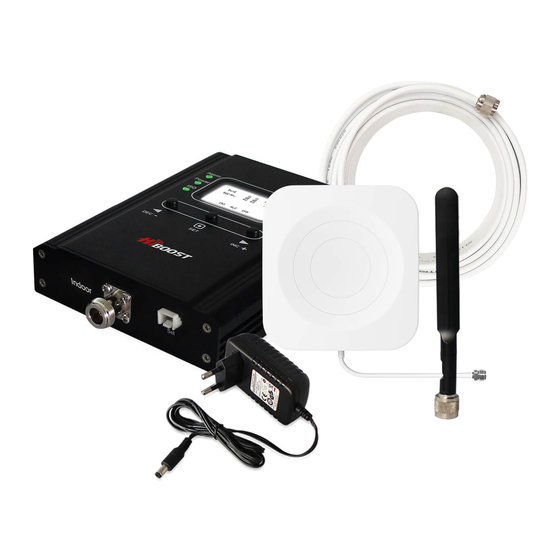

    Standard Package Content Accessories Standard Kit     Hi13-3S/3SL/5S-IoT Hi10-EGSM, Hi13-LTE800 Hi17-3S/3SL/5S-IoT Hi13-EGSM, Hi13-DCS   Hi13/23-ENR700, Hi13-ED Hi10-3S/5S Hi13/17-EW, Hi10/13/17-EL800 Note: The outdoor and indoor antennas of the booster must be connected with the appropriate RF cables. The length of the cable or other accessories needed can vary according to the size and construction materials used in the building, outdoor signal strength and layout of the structure.
  • Page 7: Booster Ports' Description

    Booster Ports' Description LCD Introduction After the booster is on, gain and power will light up on the screen. "Band"- displays the working frequency. Find below the list of frequencies displayed corresponding to the supported networks. Frequency LCD Display NR700 700 MHz LTE800 800 MHz...
  • Page 8: Control Button And Manual Gain Control (Mgc)

    "ISO"_ isolation alarm indication. When the booster doesn't have enough isolation between the outdoor and indoor antennas, the "ISO" is flashing. Press the "SET" key and the LCD screen will display " ISO" value showing the current affected band or bands. "ALC"- strong receiving power alarm indication.
  • Page 9: Install Hiboost Booster System

    If none of the control keys are pressed within 5 minutes, the LCD screen will turn off. Pressing any key will return the display to the fixed mode. Install HiBoost Booster System Before You Install Make sure you have sufficient cable length between the outdoor,indoor antennas and ...
  • Page 10: Install Outdoor Antenna

    Once this is achieved, the current location is the best to maximize the performance of your amplifier. Attention: for Hi10 models of the Hi10-EGSM, Hi10-EL800, Hi10-3S, Hi10-5S Series the downlink max output power is 10dBm, the maximum gain is 65dB; for Hi13 models of the Hi13-EGSM, Hi13-LTE800, Hi13-DCS, Hi13-ENR700, Hi13-ED, Hi13-EW, Hi13-EL800, Hi13- 3S/3SL/5S-IoT Series the downlink max output power is 13dBm, the maximum gain is 65dB;...
  • Page 11: Step 3. Install The Mobile Signal Booster

    More about "ISO" legend indication ISO status indicates if the booster has enough isolation between the outdoor and indoor antennas in order to avoid loop back or so-called self-oscillation. HiBoost is equipped with a smart AGC function to avoid interference with mobile networks.
  • Page 12: More About Lcd Indication

    Status Meaning Solution Check coverage, leave it as it is if it's Output power is good. Remain still not weak or just Please check the Troubleshooting suitable. section to get solutions if coverage is not good. Flashing but current gain ALC Status Full output is not more than 30 dB...
  • Page 13: Troubleshooting

    The booster automatically shuts off for protection from Not working properly, actions must be Quick Flashing Red excessive downlink signal from taken. tower. Troubleshooting Problem Solution Metods The signal booster has no power. Check that the AC outlet is working. Try to fasten the connections between the different The booster's power is on but the phone is not parts of the system.
  • Page 14: Main Specification

    Main Specification RF Parameter 700 MHz 703-733 MHz 758-788 MHZ 800 MHz 832-862 MHz 791-821 MHZ 900 MHz 880-915 MHz 925-960 MHZ Frequency Range 1800 MHz 1710-1785 MHz 1805-1880 MHZ 2100 MHz 1920-1980 MHz 2110-2170 MHZ 2600 MHZ 2500-2570 MHZ 2620-2690 MHZ Hi10 Model 60 dB...
  • Page 15: Product Warranty

    HiBoost signal boosters are covered with 2-year warranty. Huaptec offers two options for products under warranty: repair or replace. This warranty does not apply to HiBoost signal boosters or kits that have been subjected misuse, abuse, neglect or mishandling and that have its physical or electronic properties altered or damaged.
