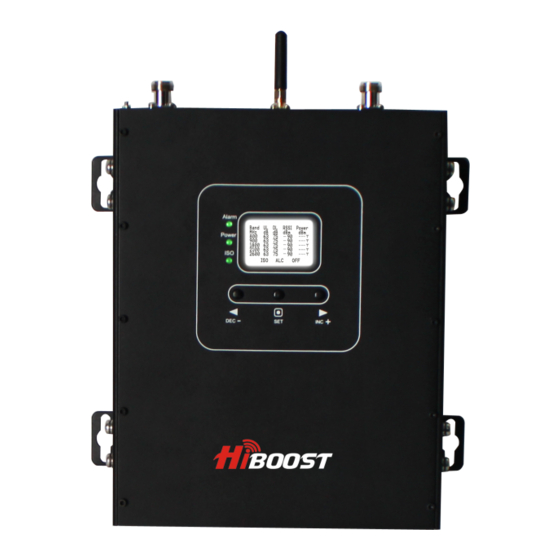

- Page 1 User M anual HiBoost Hi20/23 Series PRO Series Mobile Signal Boosters MADE BY HUAPTEC...
-
Page 2: Table Of Contents
Overview Package Contents Features Booster’s Port Description LCD Introduction Control Button operation and Manual gain control (MGC) Install Hiboost Booster System Before You Install Installation Overview Step 1. Install Outdoor Antenna Step 2.Install Indoor Antenna Step 3.Install Signal Booster Step 4.Booster Commissioning... -
Page 3: Preface
The information in this manual is subject to change without prior notice. Opinions are welcomed about the manual improvement. Booster Model The user manual can be used for the models as below: Hi20-EW/3S/5S, Hi23- EW/3S/5S. Note: The users of repeaters should get permission from the mobile providers for the use and installation of the repeater. -
Page 4: Safety Warnings
And do not cover booster with anything that influences heat-dissipation. Overview Hiboost professional boosters are designed to help mobile users to amplify weak cell phone signal. The devices are bi-directional. The outdoor antenna receives the signal from the... -
Page 5: Package Contents
Tapping screw Triple Band M6*50 Quintuple Band M6*50 Dual Band Hanging folder Bandmount hardware User Manual HiBoost Hi20/23-dual band Standard Kit includes the following accessories: Name Description Quantity Outdoor wide band panel antenna N-Female Hiboost200 low-loss Cable 50 feet (15.2m),... - Page 6 HiBoost Hi20/23-tri/five band Standard Kit includes the following accessories: Name Description Quantity Outdoor wide band directional antenna N-Female Hiboost300 low-loss cable 50 feet (15.2m), N-male Model Standard Package Contents Optional Kit Accessories Triband Five Band Note: The booster requires outdoor and indoor antennas connected with appropriate RF cables.
-
Page 7: Features
Features • Embedded CPU, self-adaptive intelligent system very easy to use and install, better performance is guaranteed even under complicated and constantly changing RF environment conditions. • ISO: Intelligent isolation processing to avoid self-oscillation, quite wide adjusting range to stabilize the signal strength/quality for clearer voice/ higher data throughput and avoid interference with mobile networks. -
Page 8: Lcd Introduction
Tri and Five Band 6 78 9 10 1. LCD 2. LED indicators 3. Control buttons 4. Power connector 5. Outdoor antenna port 6. Coupled antenna 7. Wifi 8. Bluetooth 9. Set 10. Indoor antenna port LCD Introduction Band UL DL RSSI Power MHz dB dB dBm dBm 800 70 75 - 53 - - - 70 75... - Page 9 “ULdB”“ DLdB“– gain indication. The displayed value shows real-time uplink and downlink gain. “Power dBm“– power indication. The displayed value shows real-time power. When booster’s output power is lower than -10dBm, the value will display ”---”. ”ISO” – isolation alarm indication. When the booster doesn’t have enough isolation between the outdoor and indoor antennas, the “ISO”...
-
Page 10: Control Button Operation And Manual Gain Control (Mgc)
Control Buttons Operation and Manual gain control (MGC) There are 5 operation modes relative to the control keys: • Press the “SET” key for more than 3 seconds • Short press on the “SET” key • Short press on the “DEC-” key •... -
Page 11: Install Hiboost Booster System
Install Hiboost Booster System Before You Install • Make sure you have sufficient cable length between the outdoor,indoor antennas and the booster in case you have not a standard kit • Make sure the place where you install the booster is near to one existing electrical outlet. -
Page 12: Step 1. Install Outdoor Antenna
Multi-storey building 1. Outdoor Antenna 2. Booster 3. Indoor Panel Antenna 4. Power Supply 5. Splitter Step 1. Installation of Outdoor Antenna 1.1 How to f ind the location with the strongest received signal The booster’s main function is to improve a weak RF signal inside a house, office or any other indoor area. - Page 13 • LCD Display Method Connect the outdoor antenna to the booster’s outdoor port. Fix the outdoor antenna on the roof of the building and point it to the nearest cell tower. Then have a look at gain and output power value displayed on the amplifier’s LCD. Band UL DL RSSI Power MHz dB dB dBm dBm 800 65 70 - 53 17...
- Page 14 1.2 Install Outdoor Antenna Install the outdoor antenna at the location with the strongest received signal. IMPORTANT: Testing the signal 3 times in the desired location before installing the outdoor antenna will help ensure the most smooth and stable phone calls and data transmission.
-
Page 15: Step 2.Install Indoor Antenna
and feeder line to avoid water or other kind of damage. Step 2. Install Indoor Antenna Select indoor panel antenna or omni-ceiling antenna as an indoor antenna according to your needs to provide indoor coverage. Install the indoor panel antenna as shown on the graph below. slide into mount tapping screw hook... -
Page 16: Step 4.Booster Commissioning
3. Connect the outdoor antenna cable to booster connector marked as “outdoor”. Tighten the connection by hand or with a wrench. 4. Connect the indoor antenna cables to booster connector marked as “indoor”. Tighten the connection by hand or with a wrench. 5. - Page 17 More about "ISO" legend indication ISO status indicates if the booster has enough isolation between outdoor and indoor antennas in order to avoid loop back or so-called self-oscillation. HiBoost is with an ideal mechanism, Smart AGC, to avoid from interference with operator mobile networks.
- Page 18 More about LCD indication: Status Meaning Solution Methods Check coverage, leave it as it is if Output power is it's good; Please check the “---” status lower than Troubleshooting section -10dBm. to get solutions if coverage is not good. Severe loop back or self- “OFF”...
-
Page 19: Troubleshooting
Alarm LED: Indicates the strength of received signal from the tower. Flashing Alarm means that the booster is receiving a strong signal in one or more of the bands. Alarm LED shall remain "Green" or "Slow Flashing Green". Slow flashing green indicates that everything is working well and the booster is working at nearly the optimum output power to achieve the best possible coverage Status... - Page 20 1. Adjust the outdoor antenna direction, keeping it away from indoor antenna. Restart booster. 2. Increase the vertical or horizontal distance between the outdoor antenna and indoor antenna. Restart booster. 3. Use barriers such as walls to increase the isolation. 4.
-
Page 21: Main Specifications
prevent system oscillation Note: The flashing ISO and Alarm status indicates that ISO and ALC functions are working properly and the problems of self-oscillation and strong downlink signals are fixed. In most cases, there is no need to take any additional measures except for deep self-oscillation or excessively strong signals from the tower. -
Page 22: Product Warranty
Hiboost signal boosters are covered with2-year warranty. Huaptec offers two options for the products under warranty: repair or replace. This warranty does not apply to HiBoost signal boosters or kits that have been subjected to misuse, abuse, neglect or mishandling and that have its physical or electronic properties altered or damaged. -
Page 23: Huaptec Contact Details
5th FL, E BLDG, Sogood Benno-Strauß-Street 7, 6210 N. Belt Line Rd., Ste. Science Park, Hangkong 90763 Fürth, Germany 110, Irving, TX, 75063 Road, Xixiang, Bao'an, Shenzhen, China 518102 E-mail: E-mail: E-mail: tech@huaptec.com sales@huaptec.eu info@hiboostusa.com Website: Website: Website: www.huaptec.com www.hiboost.eu www.hiboost.com... - Page 24 Address: Benno-Strauß-Straße 790763 Fürth Phone:(44)20 3239 5808 E-mail : sales@huaptec.eu Web site : www.hiboost.eu Designed and Produced By Huaptec...
