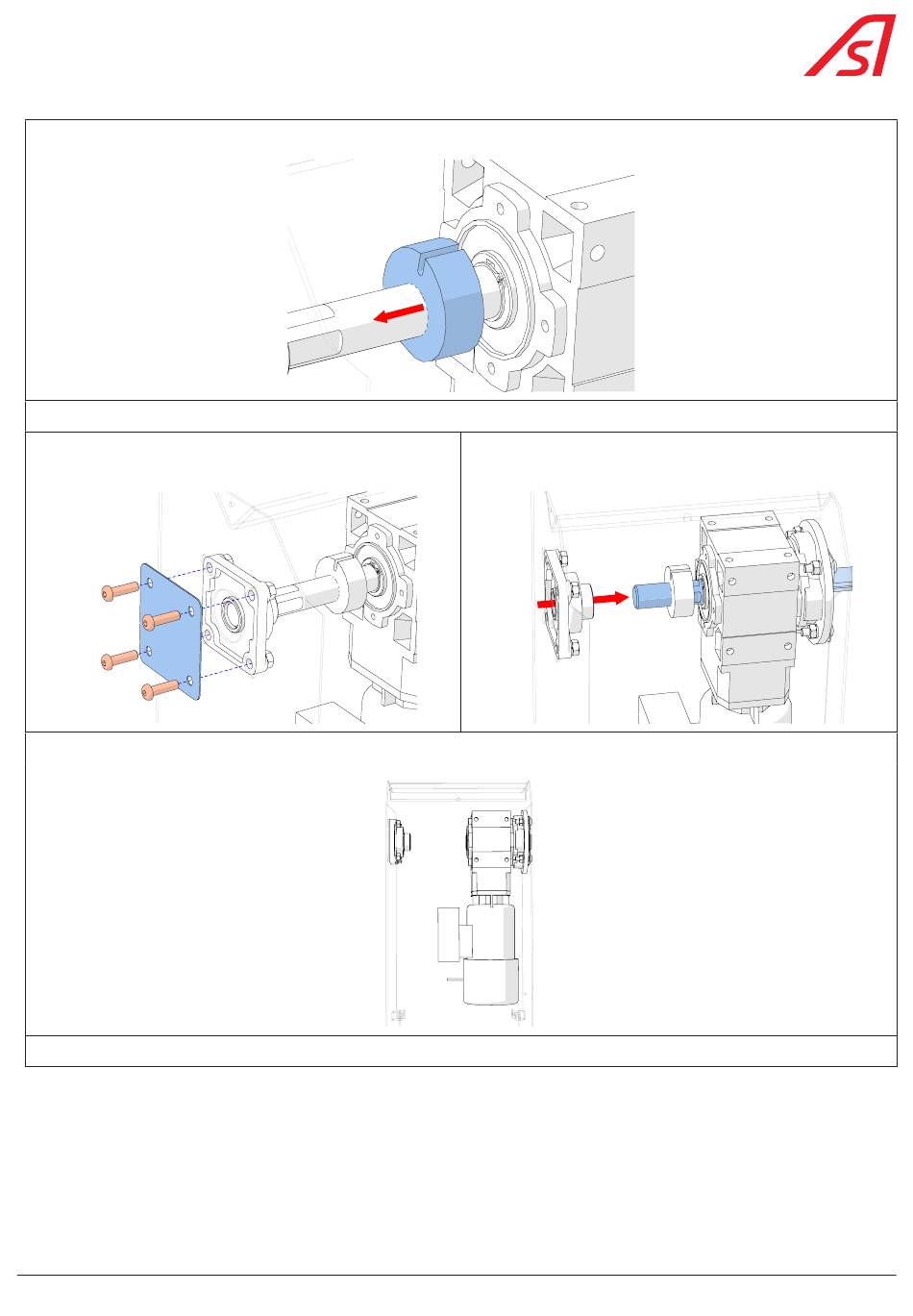

8. Open the detection cam and slide it onto the shaft.
9. File off the marking of the bearing ring locking screw.
10. Remove the external bearing protection plate by removing
11. Take out the shaft by tapping on the bearing side with a
the four CBLH M10 screws.
bronze drift.
12. Open the motor terminal box, locate and disconnect the wires and then take out the cables.
13. Place a support under the gear motor to lift it prior to loosening it.
