System assembly

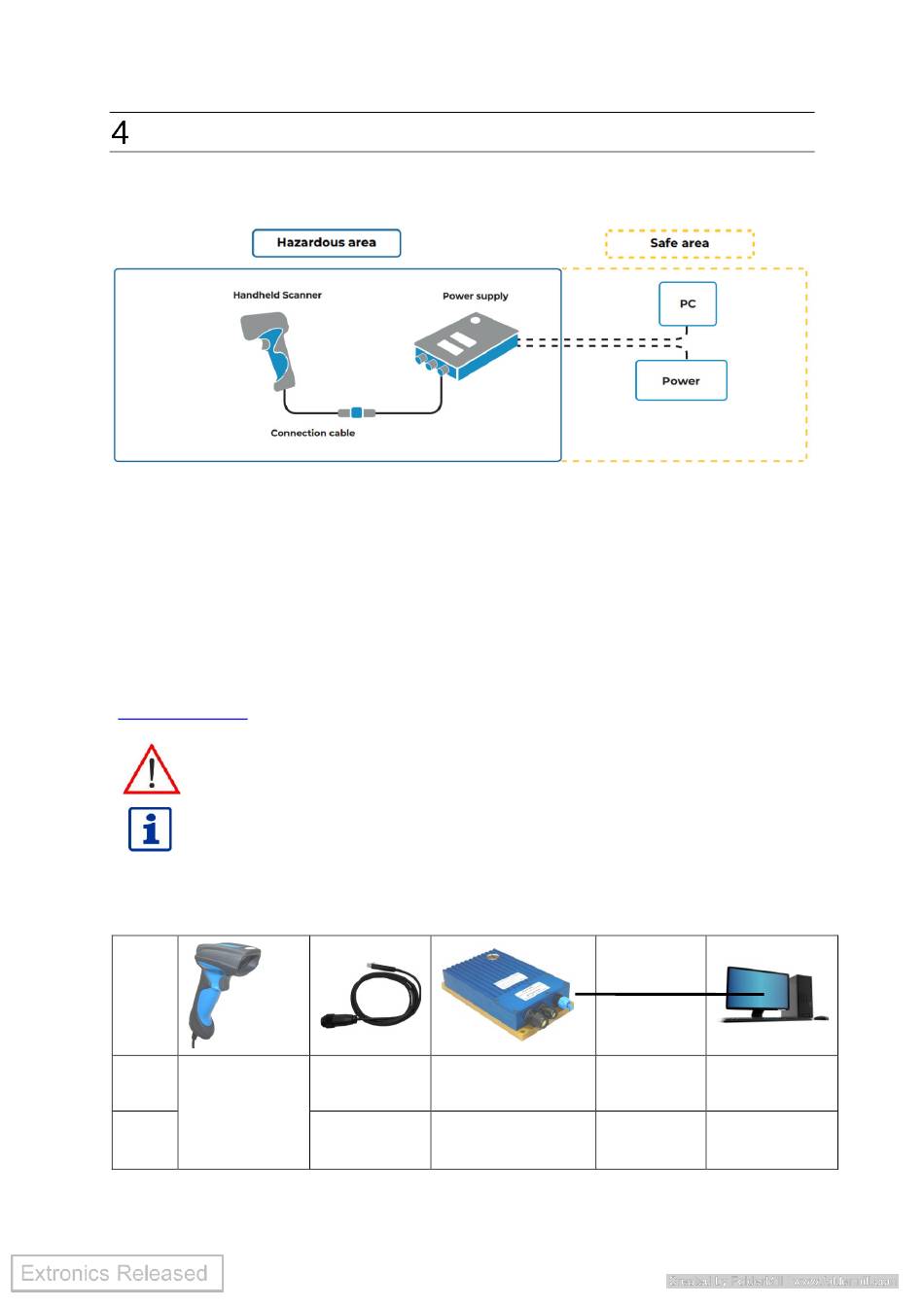

4.1 Assembly description

The wired handheld scanner was designed for use in hazardous areas. Normal
operation requires a power supply, a connection cable between power supply and
scanner, and connection cable(s) between power supply and a PC.
External connection cables:
Data cable: USB 0.2 - 2.5 mm², 4-wire
RS232 0.2 - 2.5 mm², 3-wire
Power cable: 0.2 - 2.5 mm², 3-wire
The handheld scanner and the power supply can be connected and operated in the
hazardous area. For safe installation please refer to the manual issued by SICK AG
(www.SICK.com)
The warnings and notes of caution contained in these operating
instructions and in the manual issued by SICK AG (www.SICK.com)
must be adhered to.
For the professional use of the power supply iSCANPSX the operating
instructions of the manual of the power supply are necessary.

4.2 Cable range

RS232
iSCANX4C-1-P
iSCAX4C-1-Q
USB
2.0m (straight)
or 3.6m iSCANPS1/3/5/7
(spiral)
2.0m (straight)
or 3.6m iSCANPS2/4/6/8
(spiral)
10
Up to 20m Host
Up to 5m Host
