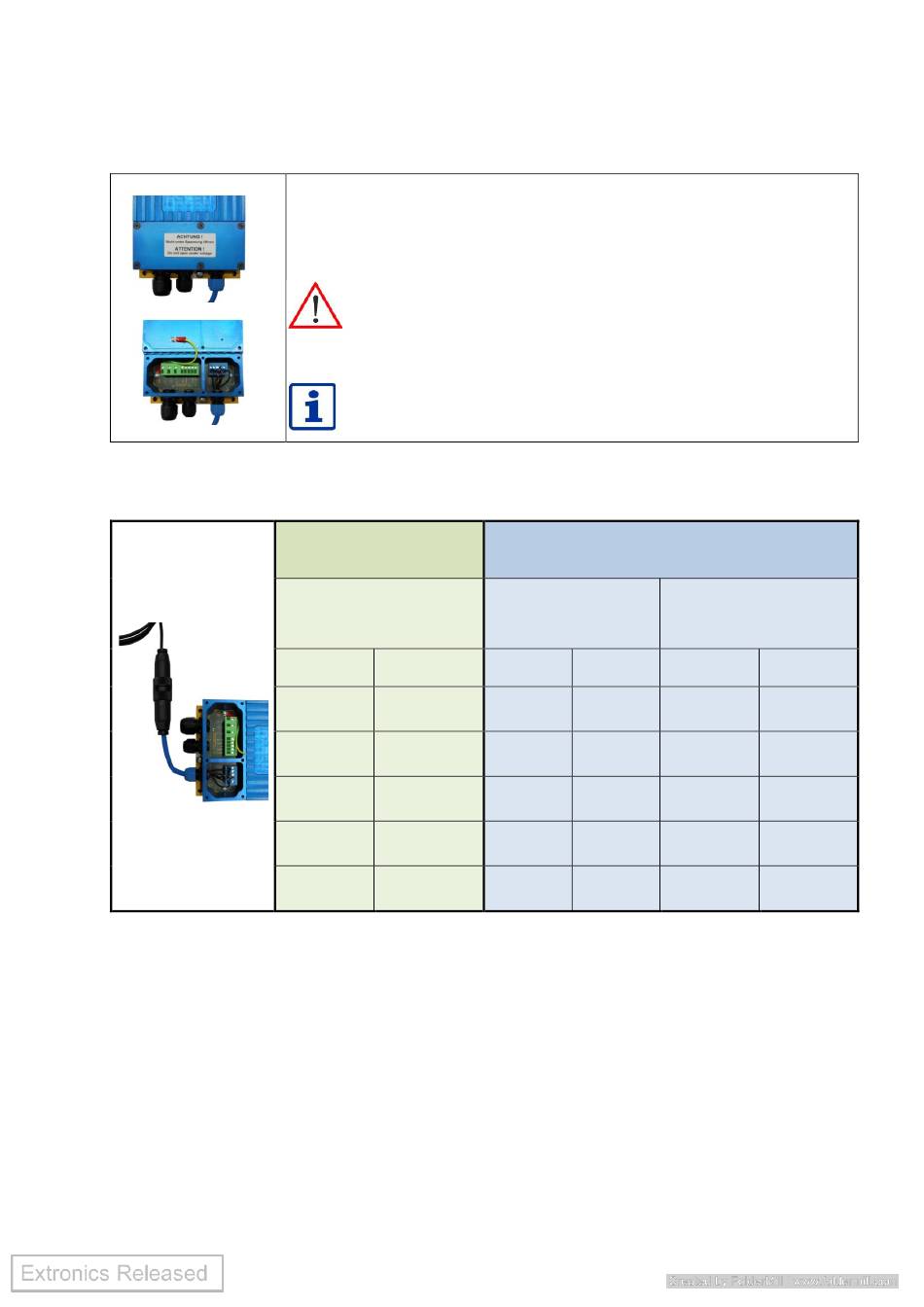

5.4 Connection of USB iSCANPSX power supply

Pin assignment of the plug connector and the pin assignment of the direct
connections to the power supply iSCANPSX:
The terminal assignment is located underneath the removable
cover at the front of the power supply.
Caution: Do not open enclosure in the hazardous area.
Before operating the device in a hazardous area you have
to ensure that the enclosure has been closed fully and all
screws have been tightened.
Cables may only be connected by trained staff.
USB cable
iSCANX4C-CAB3, 4
Pin assignment
connection coupling
Pin Definition
3 D+
2 D-
4 GND
1 +UB
14
Power supply
iSCANPS2, 4, 6, 8
Pre-assembled
Connection
coupling
Pin Wire
3 3
2 4
4 2
1 1
Connection box
Definition Number
D+ X9
D- X10
PE X11
GND X12
+UB X13
