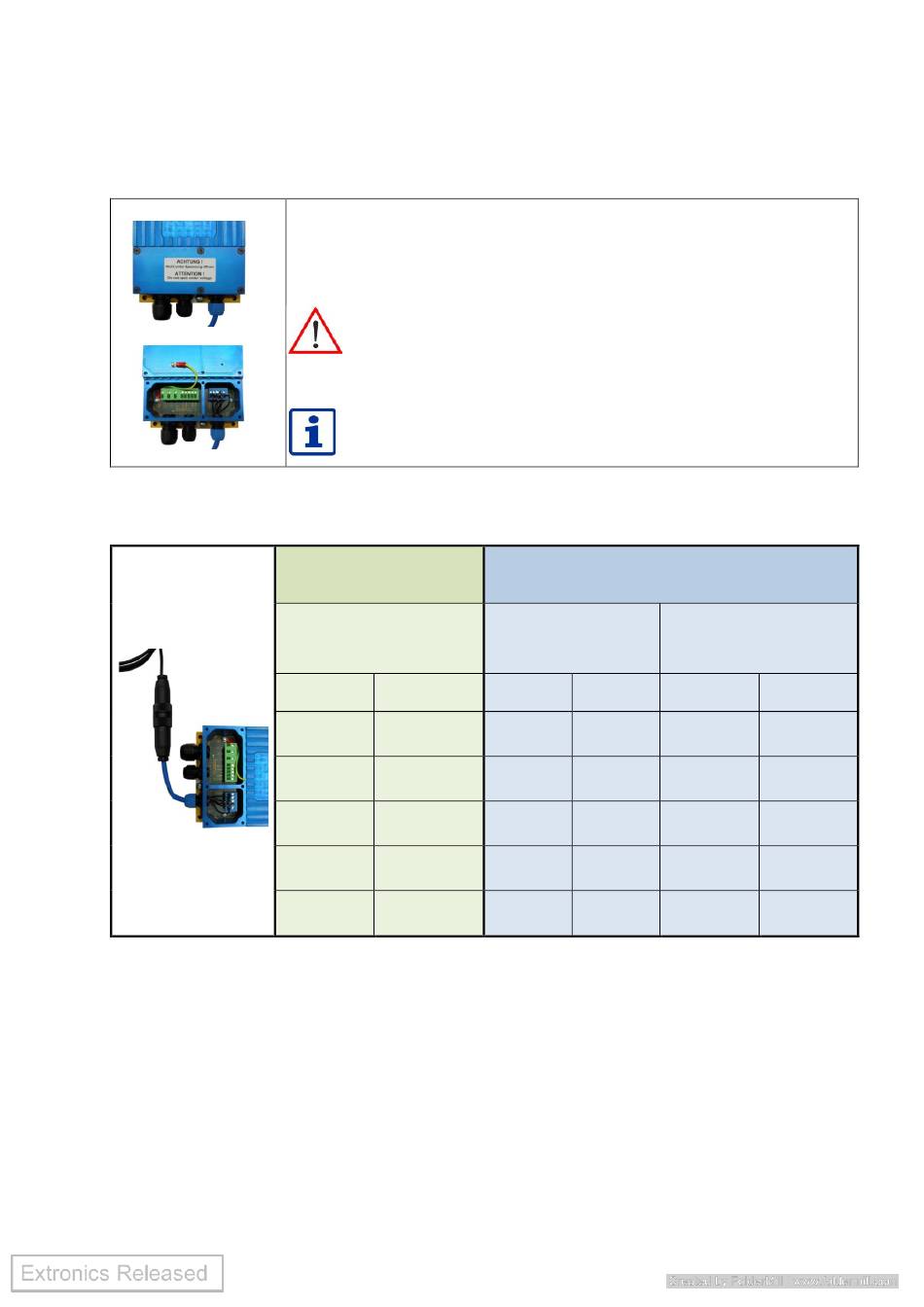

5.2 Connection of RS232 iSCANPSX power supply

Pin assignment of the plug connector and the pin assignment of the direct
connections to the power supply ISCANPSX:
The terminal assignment is located underneath the removable
cover at the front of the power supply.
Caution: Do not open enclosure in the hazardous area.
Before operating the device in a hazardous area you have
to ensure that the enclosure has been closed fully and all
screws have been tightened.
Cables may only be connected by trained staff.
RS232 cable
iSCANX4C-CAB1, 2
Pin assignment
connection coupling
Pin Definition
3 TxD
2 GND
1 +UB
Power supply
iSCANPS1, 3, 5, 7
Pre-assembled
Connection
coupling
Pin Wire
3 3
2 2
1 1
Connection box
Definition Number
RxD X9
GND X10
PE X11
GND X12
+UB X13
