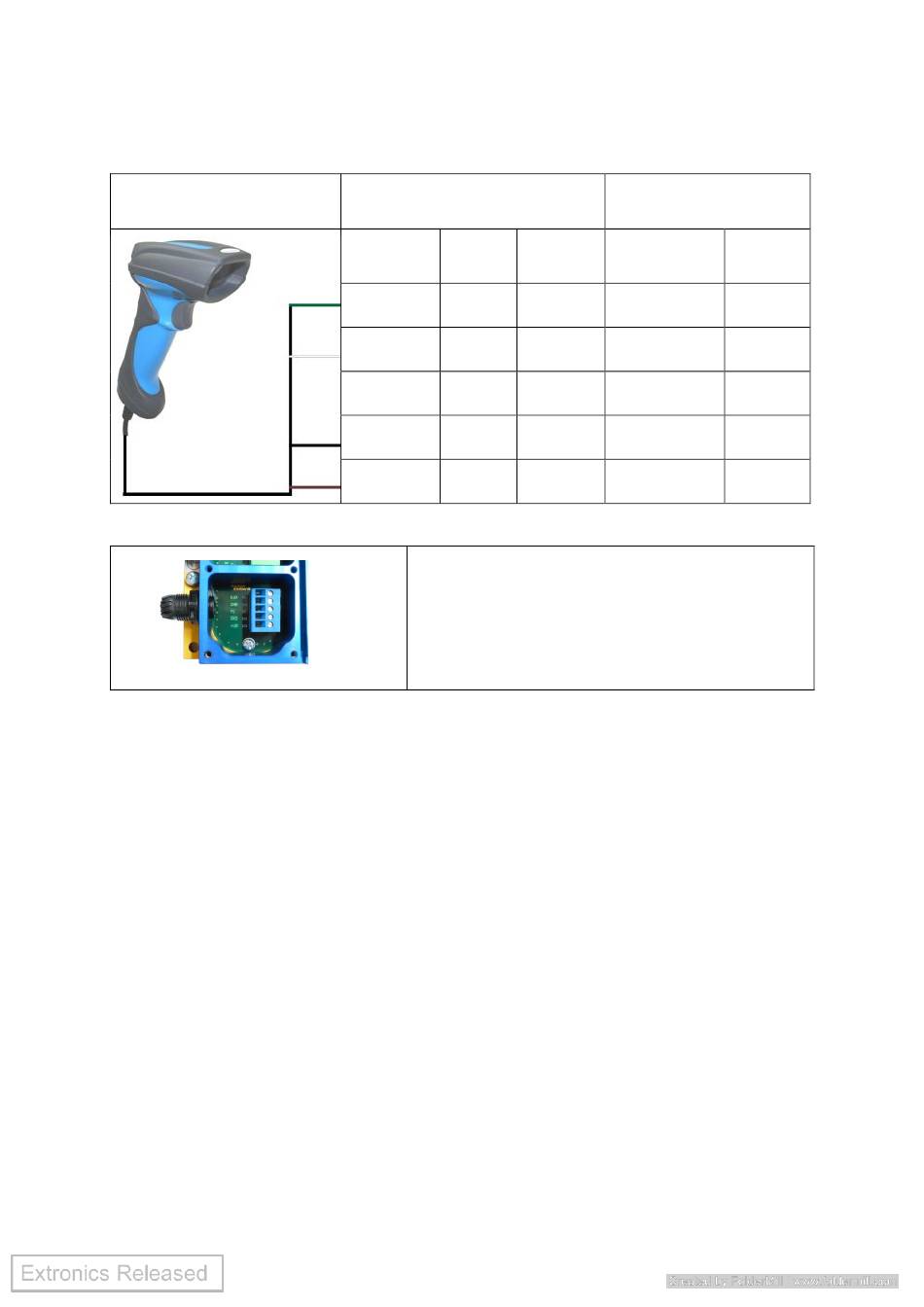

5.5 Direct connection of scanner w/o plug to the USB iSCANPSx

Pin assignment of
scanner
USB connection cable
(iSCANX4C-CAB3, 4)
RJ45 Pin Wire
assignment colours
2 Green
10 White
4 Black
7 Brown
Intrinsically safe connection box
of the USB iSCANPSX power supply
after removal of the wires of the plug
connection
15
Power supply
(iSCANPS2, 4, 6, 8)
Definition Connection
terminal power
supply
D+ X9
D- X10
X11
GND X12
+UB X13
Definition
D+
D-
PE
GND
+UB
