INSTALLATION INSTRUCTIONS
Percy
Handle Trim Kit for
™
2 Way or 3 Way In-Wall Diverter
Cross Handle
Model D35105.434
Cylinder Handle
Model D35105.430
Thank you for selecting DXV by American Standard.
To ensure that your installation proceeds smoothly,
please read these instructions carefully
before you begin.
RECOMMENDED TOOLS AND MATERIALS
Most of the procedures require the use of common tools and materials, which are available from hardware and plumbing,
supply stores. It is essential that the tools and materials be on hand before work is begun.

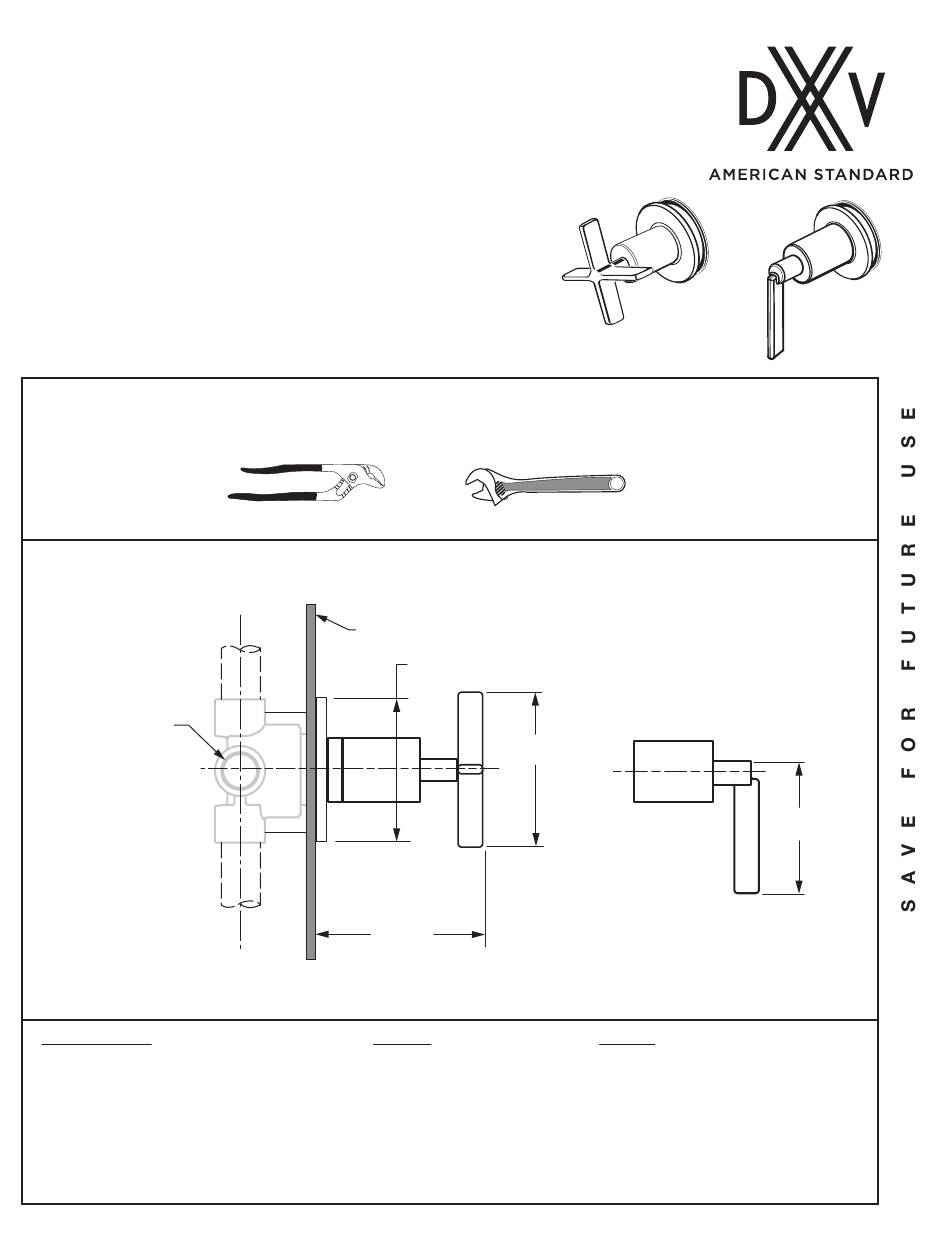

ROUGHING-IN DIMENSIONS:
• For reference
1/2" NPT INLETS
AND OUTLETS
In the United States:
DXV by American Standard
One Centennial Avenue
Piscataway, New Jersey 08855
Attention: Director of Customer Care
For residents of the United States, warranty
information may also be obtained by calling
the following toll free number: (800) 227-2734
www.DXV.com
Product names listed herein are trademarks of AS America, Inc.
© AS America, Inc. 2013
Channel Locks
FINISHED
WALL
3" D.
(75mm)
2-9/16"
(66mm)
In Canada:
DXV by American Standard
5900 Avebury Road
Mississauga, Ontario
L5R 3M3
Canada
Toll Free: 1-800-387-0369
Local: 905-306-1093
Fax:
1-800-395-1498
www.DXV.ca
Adjustable Wrench
CROSS
HANDLE
3-3/16"
(80mm)
In Mexico:
DXV by American Standard
Via Morelos 330
Col. Santa Clara Coatitla
Ecatepec, Estado de México 55540
Toll Free: 01-800-8391200
www.DXV.mx
- 1 -
CYLINDER
HANDLE
2-1/2"
(63mm)
M 96 5 52 6 Rev. 1 .1
Advertisement
Related Manuals for American Standard DXV Percy D35105.434
Summary of Contents for American Standard DXV Percy D35105.434
- Page 1 2 Way or 3 Way In-Wall Diverter Cross Handle Model D35105.434 Cylinder Handle Model D35105.430 Thank you for selecting DXV by American Standard. To ensure that your installation proceeds smoothly, please read these instructions carefully before you begin. RECOMMENDED TOOLS AND MATERIALS Most of the procedures require the use of common tools and materials, which are available from hardware and plumbing, supply stores.
- Page 2 INSTALL HANDLE CAUTION Turn off hot and cold water supplies before beginning. • Install ESCUTCHEON (1) onto ESCUTCHEON HOLDER (2). Thread ESCUTCHEON HOLDER (2) with ESCUTCHEON (1) onto DIVERTER VALVE (3) until ESCUTCHEON (1) is ush against nished wall. • Align HANDLE as shown or as desired and install HANDLE ASSEMBLY (5, 5a) onto VALVE STEM (4). •...
