American Standard DELANCEY 4279.701 Installation Instructions

DELANCEY
Dual Control Kitchen Faucet
with Side Spray
Thank you for selecting American Standard...
the benchmark of fine quality for over 100 years.
To ensure that your installation proceeds smoothly-please read
these instructions carefully before you begin.
RECOMMENDED TOOLS
Channel Locks
1
INSTALL FAUCET WITH SPRAY
Turn off water at
CAUTION
main supply
INSTALL FAUCET

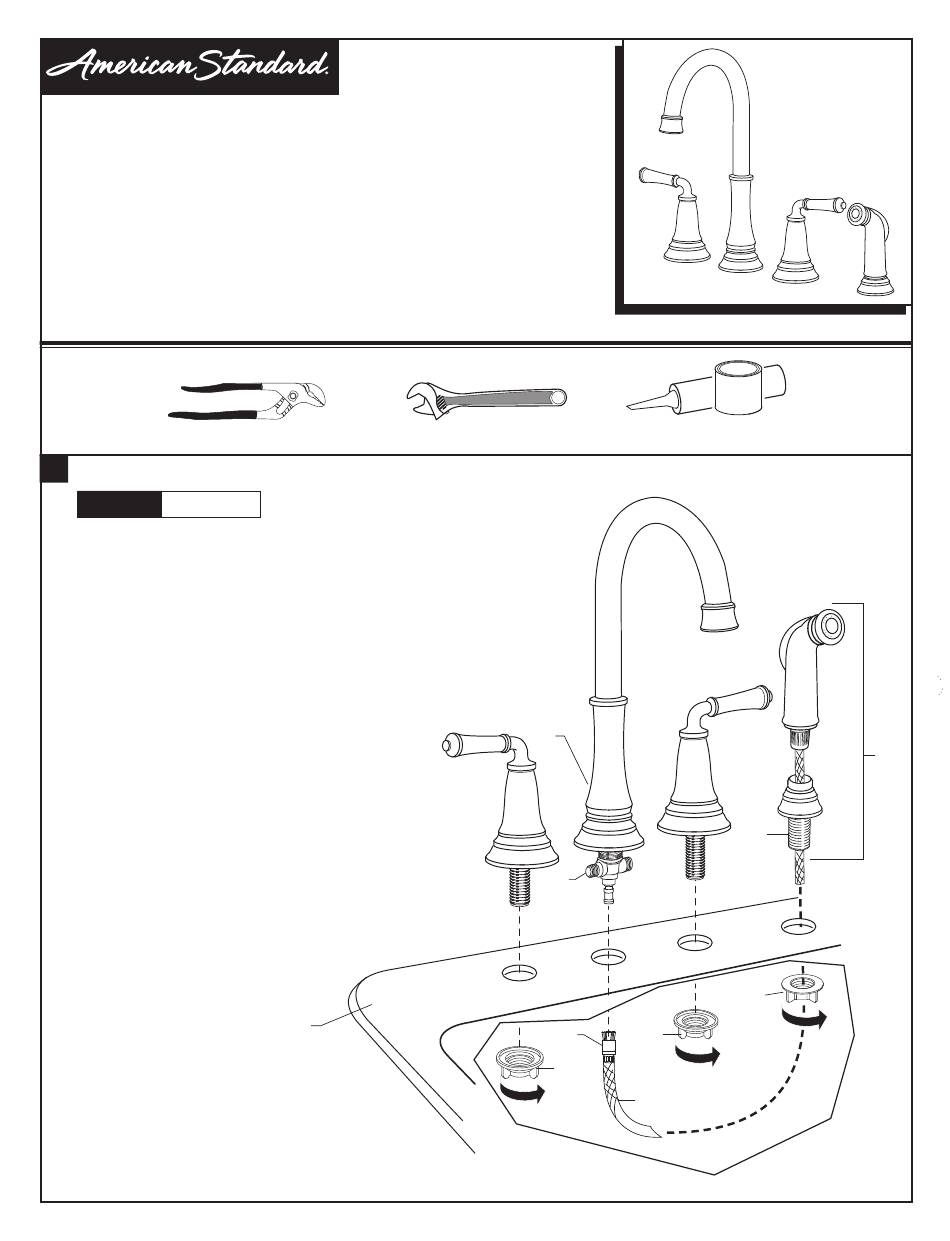

• Place FAUCET (1) in postion on sink or mounting surface.
• Assemble and tighten LOCKNUTS (2) from underside of
sink or mounting surface. Hand tighten to secure FAUCET (1).
INSTALL SPRAY
• Place the HOLDER (4) into the appropriate mounting
hole. Assemble the SPRAY HOLDER WING NUT (5)
onto the shank of SPRAY HOLDER (4) from below
and hand tighten.
• Feed SPRAY HOSE (6) through HOLDER (4)
so SPRAY (3) sits in HOLDER (4).
• From underneath sink, attach COUPLING NUT (7)
of SPRAY HOSE (6) to HOSE SHANK (8). Tighten
COUPLING NUT (7) firmly.
Product names listed herein are trademarks of AS America, Inc.
© AS America, Inc. 2016
™
SINK OR
MOUNTING
SURFACE
INSTALLATION
INSTRUCTIONS
4279.701
Adjustable Wrench
1
8
7
2
- 1 -
Certified to comply with ANSI A112.18.1M
Plumbers' Putty or Caulking
4
5
2
(HAND TIGHTEN)
6
3
M965795 (1/17)
