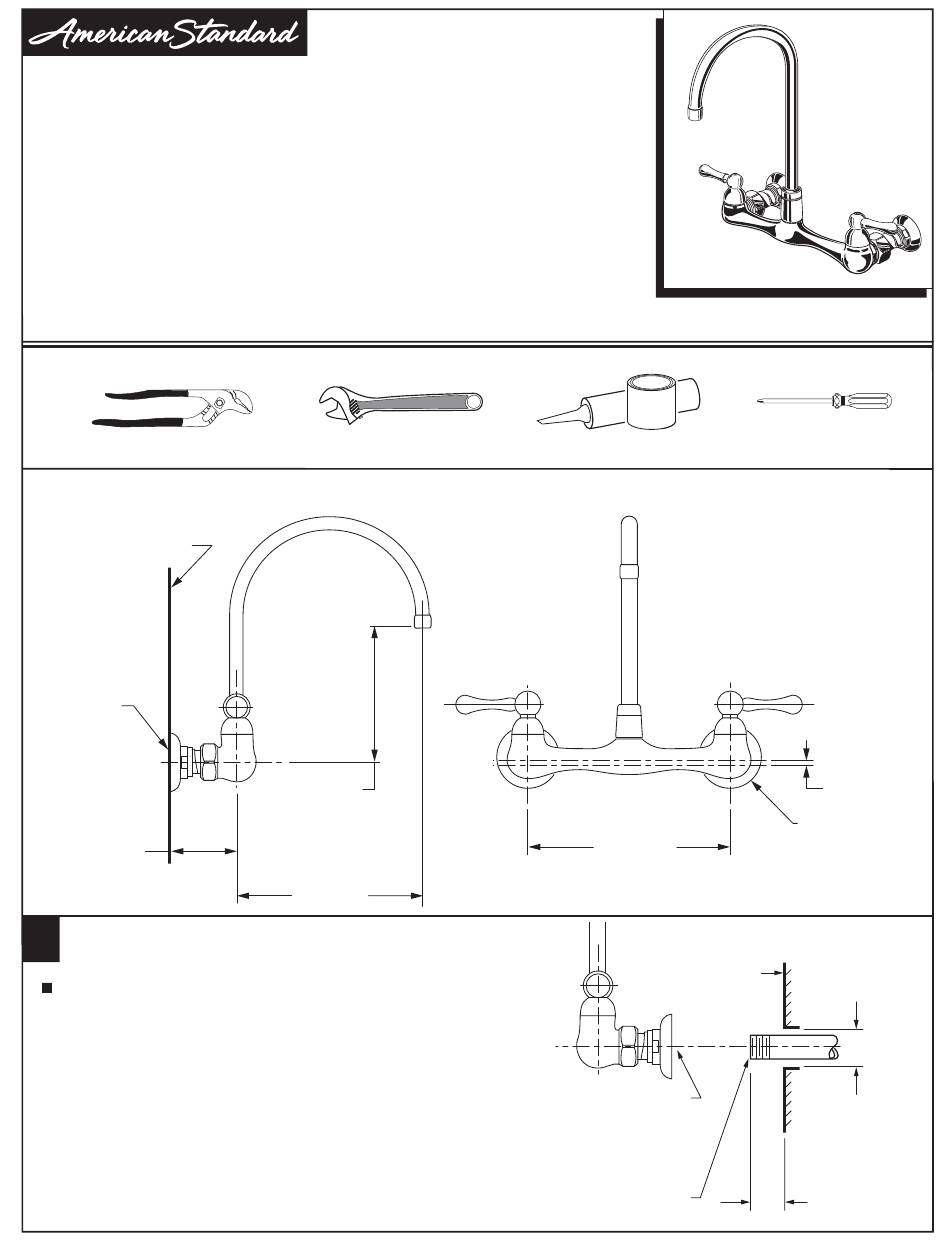

Exposed Wall Mount
Sink Faucet and Gooseneck Spout
Thank you for selecting American-Standard...
the benchmark of fine quality for over 100 years.
To ensure that your installation proceeds smoothly--
please read these instructions carefully before you begin.
TOOLS REQUIRED
Channel Locks
ROUGHING-IN DIMENSIONS
FINISHED WALL
1/2" NPT
(FEMALE)
70mm to 83mm
(2-3/4 to 3-1/4")
1
ROUGH-IN
Prepare water supply lines per "Roughing-in
Dimensions". Install 1/2" NPT. SUPPLY NIPPLES
Installation
Instructions
Adjustable Wrench
171mm (6-3/4")
229mm (9")
7293.152
7293.252
7293.252F15
Plumbers' Putty or Caulking
203mm (8")
1/2 " NPT.
FEMALE
THREADS
1/2 " NPT.
SUPPLY NIPPLE
Certified to comply with ANSI A112.18.1M
M968264 REV. 1.5 (3/16)
Phillips Screwdriver
3mm (1/8")
ECCENTRIC
60mm Dia.
(2-3/8")
FINISHED
1-1/4 " DIA.
WALL
OPENING
1/2 " to 1 "
Advertisement
Related Manuals for American Standard 7293.152
Summary of Contents for American Standard 7293.152
- Page 1 Installation Instructions 7293.152 Exposed Wall Mount 7293.252 Sink Faucet and Gooseneck Spout 7293.252F15 Thank you for selecting American-Standard... the benchmark of fine quality for over 100 years. To ensure that your installation proceeds smoothly-- Certified to comply with ANSI A112.18.1M please read these instructions carefully before you begin.
- Page 2 FINISH INSTALLATION Apply thread sealant or teflon tape to SUPPLY NIPPLES (1). Slide COUPLING NUTS (2) onto INLET SHANKS (3). Thread ESCUTCHEONS (4) fully onto INLET SHANKS (3). Thread INLET SHANKS (3) onto SUPPLY NIPPLES (1). Distance between INLET SHANK (3) outlets must be 8" to match the VALVE (5). Insert RUBBER WASHERS (6) into INLET SHANK (3).
- Page 3 Exposed Wall Mount Sink Faucet with Gooseneck Spout MODEL NUMBER 7293.152 7293.252 7293.252F15 012182-002220A (2.2 GPM) SPOUT 012182-002150A (1.5 GPM) SPOUT 012245-0020A METAL HANDLE 012254-0020A HANDLE SCREW 066111-0020A (2.2 GPM) AERATOR M922880-0020A (1.5 GPM) AERATOR 012244-0070A SPOUT SEALS 994053-0070A CARTRIDGE...
