Integrated faucet with optional above-deck mixing & smartherm temperature limiter (9 pages)
Summary of Contents for American Standard PORTSMOUTH 4285.551

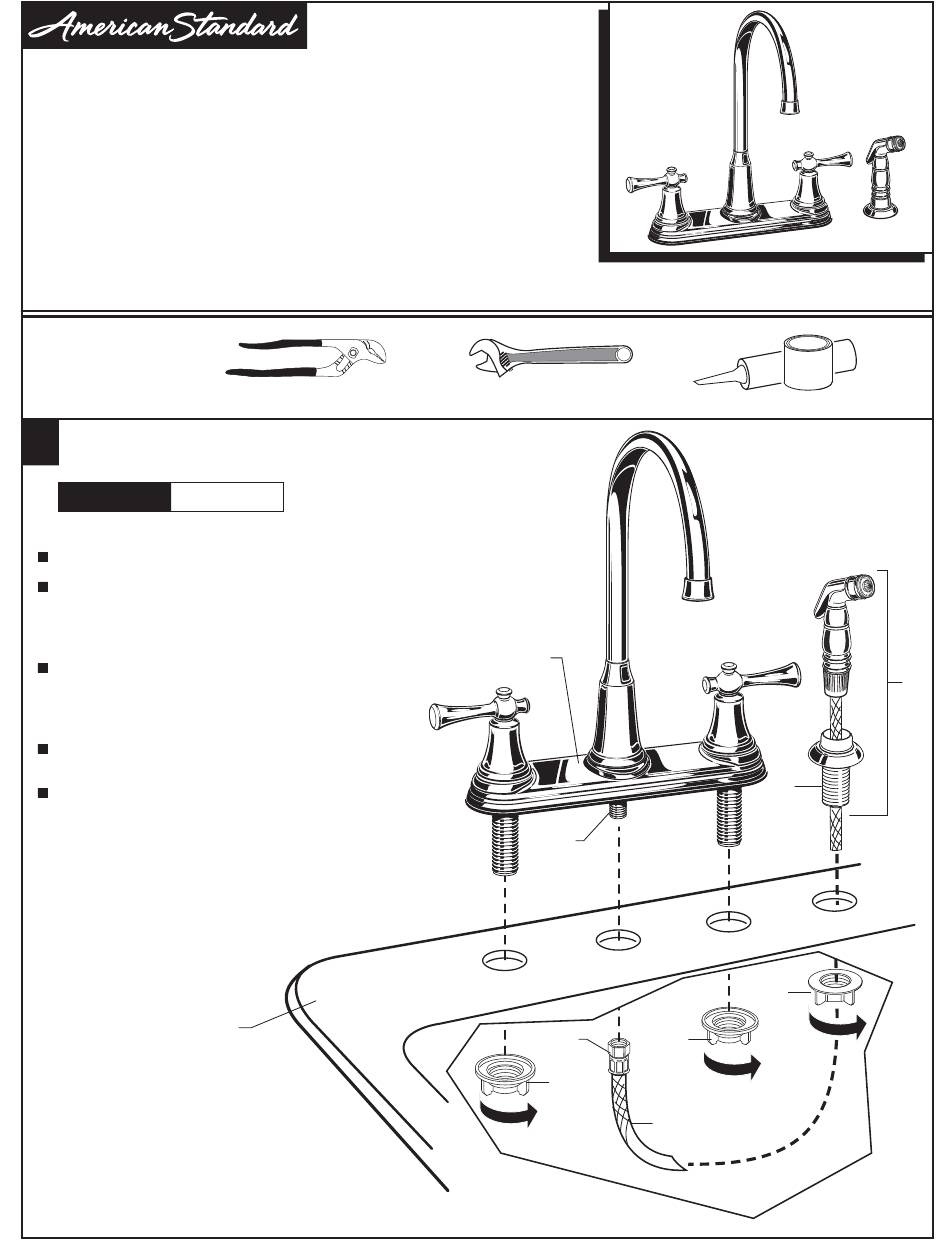

Page 1
Installation Instructions 4285.551 PORTSMOUTH™ DUAL CONTROL HIGH-ARC KITCHEN FAUCET Thank you for selecting American-Standard... the benchmark of fine quality for over 100 years. To ensure that your installation proceeds smoothly-- Certified to comply with ASME A112.18.1M please read these instructions carefully before you begin. M 9 6 5 4 5 9 R e v.
Page 2
MAKE WATER SUPPLY CONNECTIONS NOTE: FLEXIBLE SUPPLIES OR BULL-NOSE RISERS MUST BE PURCHASED SEPARATELY. Connect water supply to FAUCET (1) with 1/2" IPS FLEXIBLE SUPPLIES (2) or 3/8" O.D. BULL-NOSE RISERS (3). Use adjustable wrench to tighten connections. Do not over COUPLING NUT tighten.
Page 3
PORTSMOUTH™ DUAL CONTROL HIGH-ARC KITCHEN FAUCET MODEL NUMBER 4285.551 M964401-YYY0A SPOUT KIT M910261-0070A AERATOR M909610-YYY0A M911231-YYY0A INDEX BUTTON AERATOR RING 918555-0070A HANDLE SCREW M909430-YYY0A HANDLE ASSEMBLY SPOUT NUT NOT INCLUDED IN SPOUT KIT A912621-0070A M953668-YYY0A O-RING 918049-0070A HANDSPRAY & HOSE ADAPTER M953056-0070A DIVERTER...
