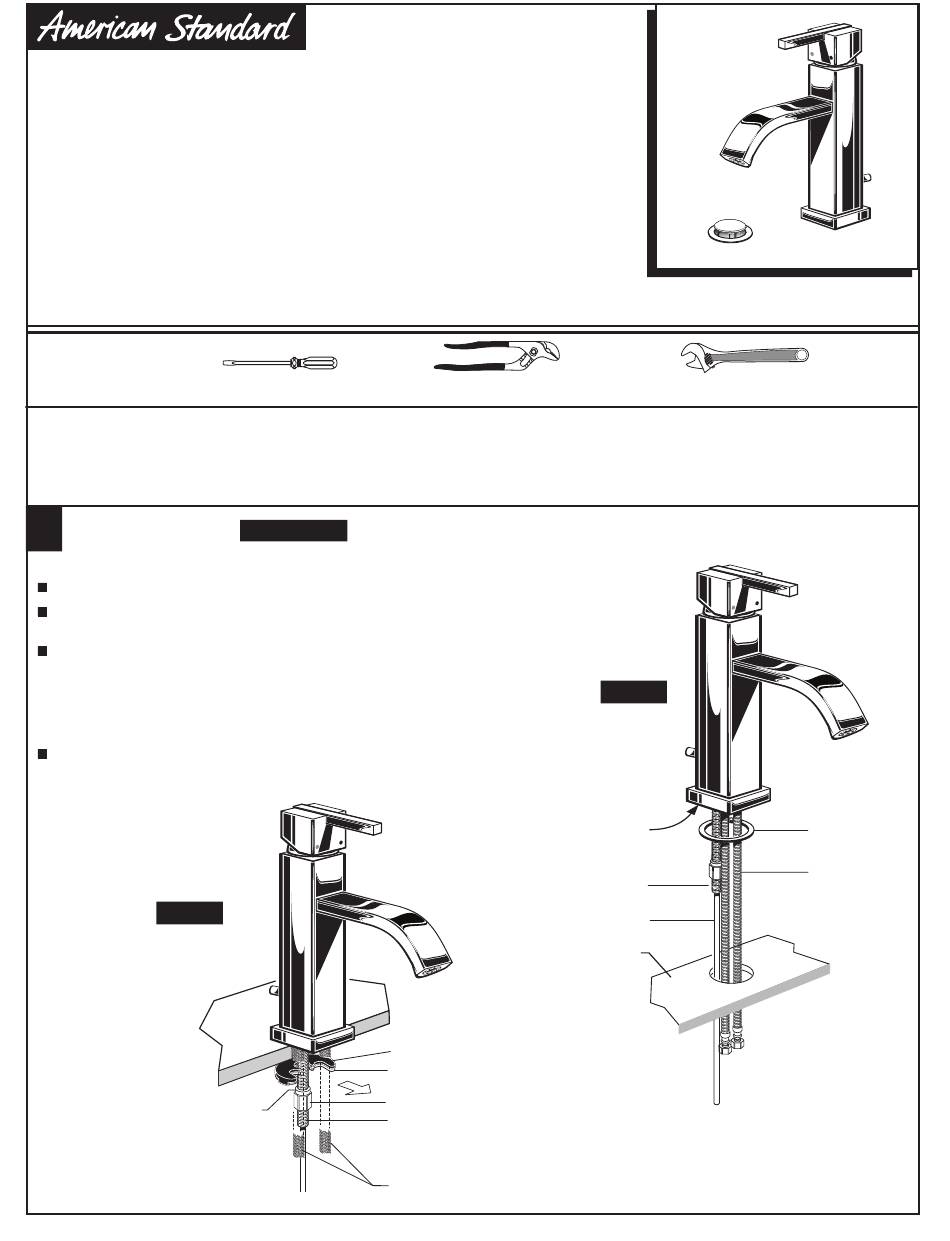

QUEST
™
Monoblock Bathroom Sink Faucet
with Conventional Pop-up Drain
Thank you for selecting American-Standard...the benchmark
of fine quality for over 100 years.
To ensure that your installation proceeds smoothly--please
read these instructions carefully before you begin.
Recommended tools
CARE INSTRUCTIONS:
DO: SIMPLY RINSE THE PRODUCT CLEAN WITH CLEAR WATER. DRY WITH A SOFT COTTON FLANNEL CLOTH.
DO NOT: DO NOT CLEAN THE PRODUCT WITH SOAPS, ACID, POLISH, ABRASIVES, HARSH CLEANERS, OR A
CLOTH WITH A COARSE SURFACE.
1
INSTALL FAUCET
Seat SEAL (1) into under side of FAUCET BASE (2). Fig. A.
Feed FAUCET SUPPLIES (3), MOUNTING STUD (4) and LIFT ROD (8)
through the mounting hole of lavatory or mounting surface. Fig. A.
From below, push GASKET (7) and RETAINING WASHER (5) onto
MOUNTING STUD (4). Secure Faucet with MOUNTING NUT (6),
pulling faucet to front of sink so SUPPLIES (3) rests against
mounting hole. Before final tightening make sure collar on
MOUNTING NUT (6) is seated into RETAINING WASHER (5).
Fig. B.
Adjust Faucet so that it is centered. Tighten MOUNTING NUT (6)
to complete faucet mounting.
Fig. B.
COLLAR ON
MOUNTING NUT
Screwdriver
Turn off hot and cold water
CAUTION
supplies before beginning.
7
5
6
4
3
Installation
Instructions
2007.101
Channel Locks
Fig. A.
GROOVE
(FAUCET
BASE)
MOUNTING SURFACE
Certified to comply with ANSI A112.18.1
M965256 REV. 1.4
Adjustable Wrench
1
3
4
8
Advertisement
Related Manuals for American Standard QUEST 2007.101
Summary of Contents for American Standard QUEST 2007.101
- Page 1 Installation Instructions QUEST ™ 2007.101 Monoblock Bathroom Sink Faucet with Conventional Pop-up Drain Thank you for selecting American-Standard...the benchmark of fine quality for over 100 years. To ensure that your installation proceeds smoothly--please read these instructions carefully before you begin. Certified to comply with ANSI A112.18.1 M965256 REV.
- Page 2 INSTALL POP-UP DRAIN Fig.2 Fig.1 Fig.1 Apply a bead of putty to underside of FLANGE (1). PUTTY Fig.2 Drop FLANGE (1) into LAVATORY DRAIN (2). From below assemble RUBBER GASKET (3), METAL Fig.3 WASHER (4) and LOCK NUT (5). Do not tighten. Fig.3 Place SEAL (6) with small end facing up into TAILPIECE (7) and tighten against DRAIN BODY (8).
- Page 3 MAKE WATER SUPPLY AND WASTE CONNECTIONS Connect FLEXIBLE SUPPLIES (1, 2) directly to wall supplies. Connection on fitting supplies are 3/8" compression. Connect left SUPPLY (1) to Hot (Marked with a Red Band) and right supply to COLD (2) wall supply. Faucet supplies are 508mm long from faucet base.
- Page 4 QUEST ™ Monoblock Bathroom Sink Faucet with Conventional Pop-up Drain MODEL NUMBER M964329-0020A HANDLE KIT 2007.101 2.5mm HEX KEY M964314-0020A HANDLE KIT M964195-0020A CARTRIDGE COVER M964197-0070A CARTRIDGE M964192-0020A POP-UP ROD M964191-0070A AERATOR KIT M964198-0070A MOUNTING KIT M953465-0020A DRAIN ASSEMBLY Appropriate finish code CHROME HOT LINE FOR HELP For toll-free information and answers to your questions, call:...
