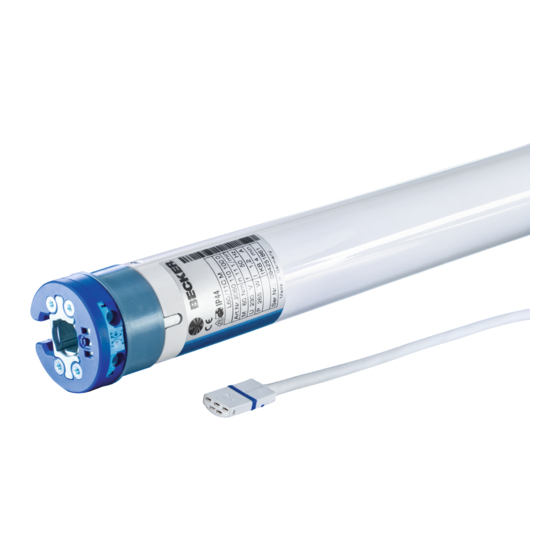

Becker C23 PLUS Assembly And Operating Instructions Manual

Sun protection drives with integrated radio transceiver and extended running time
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
L70-17...L100-11
Model: C23 PLUS
Assembly and Operating Instructions
en
Sun protection drives with integrated radio
transceiver and extended running time
Important information for:
• Fitters / • Electricians / • Users
Please forward accordingly!
These instructions must be kept safe for future reference.
2010 301 354 0b     21/08/2024
Becker-Antriebe GmbH
Friedrich-Ebert-Straße 2-4
35764 Sinn/Germany
info@becker-antriebe.com
www.becker-antriebe.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C23 PLUS and is the answer not in the manual?

Questions and answers

Related Manuals for Becker C23 PLUS

Summary of Contents for Becker C23 PLUS

  • Page 1 L70-17...L100-11 Model: C23 PLUS Assembly and Operating Instructions Sun protection drives with integrated radio transceiver and extended running time Important information for: • Fitters / • Electricians / • Users Please forward accordingly! These instructions must be kept safe for future reference.

  • Page 2: Table Of Contents

    Table of contents General .................................... 3 Warranty .....................................  3 Safety instructions ................................ 4 Instructions for the user.............................. 4 Instructions for installation and commissioning........................ 4 Intended use .................................. 6 Assembling and disassembling the plug-in connecting cable.................... 6 Assembly ....................................  7 Compatible Centronic transmitters ............................ 9 Explanation of functions ...............................

  • Page 3: General

    General These tubular drives are high-quality products with the following features: • Optimised for sun sail applications • Individual, group and central radio control • No need to run wires to a switch or relay control device • Any combination of drive and transmitter possible •...

  • Page 4: Safety Instructions

    Safety instructions The following safety instructions and warnings are intended to avert hazards and to prevent property damage and personal injury. Instructions for the user General information • The drive must be disconnected from its power source during cleaning and maintenance and when re- placing parts.
  • Page 5 • If the drive is used for shading solutions in a specially marked area (e.g., escape routes, hazard zones, safety areas), compliance with all applicable regulations and standards must be ensured. • Once the drive has been installed, the fitter must mark the used tubular drive in the “Technical data” chapter and make a note of the installation position.

  • Page 6: Intended Use

    Intended use The type of tubular drive described in these instructions is intended solely for sun sails. It may only be used in networked systems if all the individual drives are exactly synchronised and reach the limit positions at the same time.

  • Page 7: Assembly

    Assembly Assembling the drive Attention To connect the drive to the driven part, solely mechanical accessory components made by the drive manufacturer from the current product catalogue may be used. Prior to mounting, the fitter must ensure that the masonry and the system being motorised are sufficiently robust (drive torque plus weight of the shading solution).

  • Page 8: Mounting The Drive In The Tube

    Assembling and disassembling the drive adapter with screw connection Mounting the drive in the tube For profile shafts: In the case of some drive adapters, tolerances of the groove widths in different barrels can be offset by rotating the drive adapter into a different groove recess. These groove recesses have different sizes and allow the drive to fit exactly.

  • Page 9: Compatible Centronic Transmitters

    All CentronicPlus receivers can be operated with the Centronic transmitters listed in the Centronic/CentronicPlus compatibility table at www.becker-antriebe.com/downloads As two fundamentally different radio technologies are linked in this case, the full performance of the CentronicPlus radio control system is not available in this combination. When using the Centronic transmitter with CentronicPlus receiver, the range perform- ance may be reduced under certain circumstances.
  • Page 10 By pressing a travel button, the system moves to the set limit position. Delay time Response Behaviour in wind 15 min. Automatic 60 min. The receiver retracts when it rains 15 min. Automatic The receiver does not react to rain Automatic Automatic The receiver extends when it rains 15 min.

  • Page 11: Commissioning With A Centronicplus Transmitter

    Commissioning with a CentronicPLUS transmitter Explanation of symbols Retract button STOP button Extend button Programming button (on the transmitter) Function button (on the transmitter) LED ring on the transmitter Receiver confirms once or multiple times by “clicking” or “shifting” 1 = direction switch 2 = radio switch Attention The tubular drives are designed for short-time operation.

  • Page 12: Establish Programming Mode

    Establish programming mode This step is only necessary if one of the devices to be programmed is not yet part of the in- stallation. This is the case for brand new products, for example, or devices from another installation or products that have been restored to factory settings. Readying the tubular drive for programming by switching on the power Switch on the power.

  • Page 13: Adding Additional Transmitters To The Installation

    Press the STOP button to change the assignment status of the selected receiver. If the receiver is not yet part of the installation, it will be added and assigned to the se- lected channel. ▻ The receiver signals once to confirm the channel assignment, or signals twice to cancel the channel assignment.

  • Page 14: Checking That The Running Direction Is Correct

    Lights up purple Centronic PLUS transmitter selected. No receiver located. Lights up red: Briefly press the programming button to change to the setting mode. ▻ The receiver confirms. ▻ The LED ring of the transmitter slowly pulses light blue. ▻ The receiver now enters dead-man mode. ►...

  • Page 15: Intelligent Installation Management

    First, press the programming button, then within 3 seconds also press the button for 3 seconds. ▻ The receiver confirms. ▻ The transmitter confirms with a red/blue rotation of the LED ring. Check the running direction again. Then press the programming button for 3 seconds to change to normal mode. ►...

  • Page 16: Changing The Set Limit Positions

    Changing the set limit positions 1) Shortening the range of travel (the desired limit position is located inside the current range of travel) Select the required receiver as described in the chapter Selection of the receiver for the setting mode [} 13]. Open/close to the desired new limit position.

  • Page 17: Deleting The Limit Positions

    Deleting the limit positions Attention When both or individual limit positions are deleted, all the other set functions (intermediate position I, intermediate position II) are deleted as well. Deleting individual limit positions Select the required receiver as described in the chapter Selection of the receiver for the setting mode [} 13].

  • Page 18: Intermediate Positions I + Ii

    Intermediate positions I + II The intermediate positions I + II are freely selectable positions for the shading solution between the two limit positions. Each travel button can be assigned one intermediate posi- tion. Both limit positions must be set before an intermediate position is set. Setting/modifying the desired intermediate position Open/close the shading solution to the desired intermediate position.

  • Page 19: Restoring The Wireless Memory Of The Tubular Drive To Factory Settings

    Restoring the wireless memory of the tubular drive to factory settings There are a number of options: • Using the programmed CentronicPlus transmitter • Using the universal programming unit (item no. 4935 000 001 0) The set limit positions and all of the other set functions (intermediate position I, intermedi- ate position II, fabric untensioning, fabric stretching, stop behaviour, obstruction detec- tion) are retained.
  • Page 20 Using the universal programming unit (item no. 4935 000 001 0) Connect the wires of the tubular drive to those of the same colour in the programming unit. Connect the programming unit to the mains supply. Now press and hold the button "Tubular drive with electronic limit switching and ra- dio".

  • Page 21: Commissioning With A Centronic Transmitter

    Commissioning with a Centronic transmitter Explanation of symbols Retract button STOP button Extend button Programming button (on the transmitter) Receiver confirms once or multiple times by “clicking” or “shifting” 1 = direction switch 2 = radio switch Attention The tubular drives are designed for short-time operation. An inbuilt thermal protection switch prevents overheating of the tubular drive.

  • Page 22: Intelligent Installation Management

    Readying the tubular drive for programming with the radio switch Switch the radio switch to the inside position. If the radio switch is already in this posi- tion, switch it to the outside and back to the inside position. ► The tubular drive is ready to programme for 3 minutes Intelligent installation management Completion of installation following automatic setting of limit positions The drive saves the limit position permanently once the upper limit position is reached 3 times in succession.

  • Page 23: Setting The Limit Positions

    Changing direction of rotation via master transmitter Press the button. ▻ The shading solution runs in the desired direction. ► The running direction is OK. If the shading solution runs in the wrong direction, the running direction must be changed. Proceed as follows: First, press the programming button, then within 3 seconds also press the button for 3 seconds.

  • Page 24: Deleting The Limit Positions

    2) Extending the range of travel (the desired limit position is located outside the current range of travel) Attention When both or individual limit positions are deleted, all the other set functions (intermediate position I, intermediate position II) are deleted as well. Open/close to the limit position in the direction in which you wish to extend the range of travel.

  • Page 25: Intermediate Positions I + Ii

    Intermediate positions I + II The intermediate positions I + II are freely selectable positions for the shading solution between the two limit positions. Each travel button can be assigned one intermediate posi- tion. Both limit positions must be set before an intermediate position is set. Setting/modifying the desired intermediate position Open/close the shading solution to the desired intermediate position.

  • Page 26: Deleting Transmitters

    Deleting transmitters A sensor can be deleted without a master transmitter. To do so, set the receiver to programming mode or setting mode. Skip the first step "Press the programming button on the master transmitter for 3 seconds". Deleting individual transmitters The programmed master transmitter cannot be deleted.

  • Page 27: Overwriting The Master

    Overwriting the master There are two ways to overwrite the master: • Readying the tubular drive for programming by switching on the power • Readying the tubular drive for programming with the radio switch Readying the tubular drive for programming by switching on the power To ensure that the new master transmitter is programmed in the desired tubular drive only, all other tubular drives which are connected to the same power supply must be deactivated from the programming mode.

  • Page 28: Additional Functions With Centronicplus / Centronic

    Additional functions with CentronicPLUS / Centronic Activating/deactivating the additional fabric tensioning function On delivery, the fabric tensioning function is deactivated. Activating the fabric tensioning function with a CentronicPLUS transmitter The fabric tensioning function is performed in the Extend limit position and at the pro- grammed intermediate position.

  • Page 29: Restoring The Factory Settings Of The Tubular Drive

    Deactivating the fabric tensioning function with a Centronic transmitter (master transmitter) To deactivate it, move to the fabric tensioning limit position. Press the programming button and, within the next 3 seconds, press the STOP and buttons at the same time and hold the buttons down for 3 seconds. ▻...

  • Page 30: Local Operation With A Single Button

    Local operation with a single button Only use a single button (normally open). Only connect one drive for each push-button. The length of cable between the tubular drive and the push-button must not exceed 20 m. The push-button must not be operated during the first five seconds after the mains voltage has been switched on.

  • Page 31: Technical Data Dia. 58

    Technical data dia. 58 Tubular drive L70-17 L80-11 L100-11 Model C23 PLUS Type C PSF1 X3 Rated torque [Nm] Output speed [rpm] Limit switch range 64 revolutions Supply voltage 230 V AC/50 Hz Connected load [W] Rated current consumption [A] 1.90 1.10...

  • Page 32: What To Do If

    What to do if...? Problem Remedy Tubular drive does not move. Program new transmitter. Bring transmitter within range of the tubular drive. Press drive or stop button on transmitter at least five times in the immediate vicinity of the tubular drive. Insert battery/batteries correctly in the transmitter or insert new battery/batteries.

  • Page 33: Sample Wiring Diagram

    Sample wiring diagram 33 - en...
