P5-20...L120-11

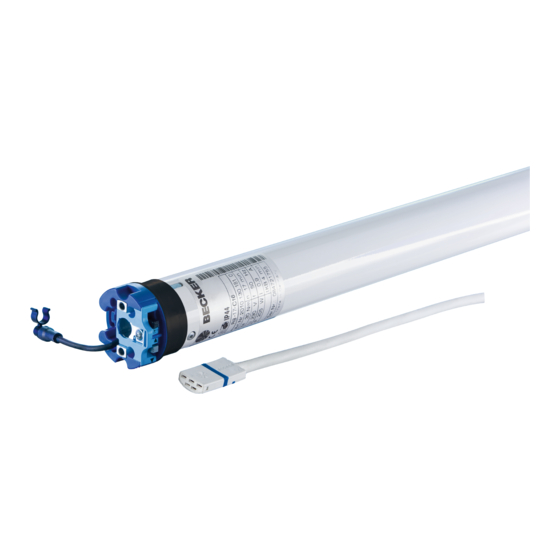

Model: C16
Assembly and Operating Instructions
en
Radio controlled sun protection drives with locking
system
Important information for:
• Fitters / • Electricians / • Users
Please forward accordingly!
These instructions must be kept safe for future reference.
2010 300 981 0 26/01/2022
Becker-Antriebe GmbH
Friedrich-Ebert-Straße 2-4
35764 Sinn/Germany
www.becker-antriebe.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Becker C16
Summary of Contents for Becker C16
- Page 1 P5-20...L120-11 Model: C16 Assembly and Operating Instructions Radio controlled sun protection drives with locking system Important information for: • Fitters / • Electricians / • Users Please forward accordingly! These instructions must be kept safe for future reference. 2010 300 981 0 26/01/2022 ...
-
Page 2: Table Of Contents
Table of contents General .................................... 3 Warranty ..................................... 3 Safety instructions ................................ 4 Instructions for the user.............................. 4 Instructions for installation and commissioning........................ 4 Intended use .................................. 6 Assembling and disassembling the plug-in connecting cable.................... 6 Assembly .................................... 7 Commissioning.................................. 10 Programming the master transmitter .......................... -
Page 3: General
General These tubular drives are high-quality products with the following features: • Optimised for sun protection applications with locking system • Locking limit position and unlocking limit position freely programmable • Automatic detection of upper limit position • Several drives can be operated in parallel •... -
Page 4: Safety Instructions
Safety instructions The following safety instructions and warnings are intended to avert hazards and to prevent property damage and personal injury. Instructions for the user General information • The drive must be disconnected from its power source during cleaning and maintenance and when re- placing parts. - Page 5 • Hazardous moving parts of the drive must be installed at a height of over 2.5 m above floor level or any other surface from which the drive can be accessed. • To ensure safe operation of the system after commissioning, the limit positions must be correctly set/ programmed in.
-
Page 6: Intended Use
Intended use The type of tubular drive described in these instructions is intended solely for the operation of sun protection systems with locking systems . To function properly, these tubular drives need a fixed stop in the upper limit position (retracted blind). When mounting connection parts on the drive dia. -
Page 7: Assembly
Ø45/Ø58 Insert a suitable flathead screwdriver right into the recess of the locating latch, so that the latch releases the locating lug from the plug. Now you can pull out the connecting cable along with the flat- head screwdriver. A = locating latch Assembly Assembling the drive Attention... - Page 8 Disassembling the drive adapter with safety catch on the drive shaft Disassembling with the disassembly tool Disassembly with long nose pliers Item no. 4930 300 606 0 Assembling and disassembling the drive adapter with drive adapter safety catch or screw connection Assembling and disassembling the drive Assembling and disassembling the drive adapter with separate drive adapter...
- Page 9 Lay the connecting cable Lay the connecting cable up to the tubular drive, and fix The connecting cable and any antennae must not project into the winding chamber. Cover any sharp edges. 9 - en...
-
Page 10: Commissioning
Commissioning Explanation of symbols UP button STOP button DOWN button Programming button Receiver confirms once or multiple times by “clicking” or “shifting” 1 = direction switch 2 = radio switch Unlocked Locked Locking bolt Moving part of the locking system on the front section of the sun protection system Bolt mechanism Fixed part of the locking system in the guide track of the sun protection sys-... -
Page 11: Programming The Master Transmitter
Readying the tubular drive for programming with the radio switch Switch the radio switch to the inside position. If the radio switch is already in this posi- tion, switch it to the outside and back to the inside position. ► The tubular drive is ready to programme for 3 minutes Programming the master transmitter Press the programming button for 3 seconds when it is ready to programme. -
Page 12: Setting The Limit Positions
Changing direction of rotation via master transmitter Press the button. ▻ The shading solution runs in the desired direction. ► The running direction is OK. If the shading solution runs in the wrong direction, the running direction must be changed. Proceed as follows: First, press the programming button, then within 3 seconds also press the button for 3 seconds. -
Page 13: Deleting The Limit Positions
Installation step 4: Use the DOWN button to run the bolt in the down direction and disengage it from the bolt mechanism, and then stop the tubular drive immediately. Now press the pro- gramming button and also the DOWN button for about 3 seconds. The tubular drive acknowledges and the unlocking limit position is saved. -
Page 14: Intermediate Position Ii In The Up Direction
Intermediate position II in the up direction The intermediate position II is any shading solution position of your choosing. It is not pos- sible to set an intermediate position II in the area of the limit position. Both limit positions must be set before the intermediate position II is set. -
Page 15: Deleting Transmitters
Deleting transmitters Deleting individual transmitters The programmed master transmitter cannot be deleted. It can only be overwritten (see Programming the master transmitter [} 11]). Press the programming button on the master transmitter for 3 seconds. ▻ The tubular drive acknowledges. Now press the programming button of the transmitter to be deleted for 3 seconds. ▻... -
Page 16: Overwriting The Master
Overwriting the master There are two ways to overwrite the master: • Readying the tubular drive for programming by switching on the power • Readying the tubular drive for programming with the radio switch Readying the tubular drive for programming by switching on the power To ensure that the new master transmitter is programmed in the desired tubular drive only, all other tubular drives which are connected to the same power supply must be deactivated from the programming mode. -
Page 17: Local Operation With A Single Button
Local operation with a single button Connection Only use a single button (normally open). Only connect one drive for each push-button. The length of cable between the tubular drive and the push-button must not exceed 20 m. The push-button must not be operated during the first five seconds after the mains voltage has been switched on. -
Page 18: Programming And Deleting The Run Times
Programming and deleting the run times Programming the run times This function is only available with MemoControl transmitters from the Becker Centronic range of control units. This tubular drive can save one switching time for one retraction and one extension cycle. -
Page 19: Technical Data Dia. 35
Technical data dia. 35 Tubular drive P5-20 P9-16 Model Type C SEF I2 Rated torque [Nm] Output speed [rpm] Limit switch range 64 revolutions Supply voltage 230 V AC / 50 Hz Connected load [W] Rated current consumption [A] 0.47 0.47 Operating mode S2 4 min Degree of protection IP 44 Min. -
Page 20: Technical Data Dia. 58
Technical data dia. 58 Tubular drive L50-17 L70-17 L80-11 L80-17* L100-11 L120-11 Model Type C SEF I2 Rated torque [Nm] Output speed [rpm] Limit switch range 64 revolutions Supply voltage 230 V AC / 50 Hz Connected load [W] Rated current consumption [A] 1.40 1.90 1.40 2.10... -
Page 21: Declaration Of Conformity
Declaration of conformity 21 - en...
