Becker C12 PLUS Assembly And Operating Instructions Manual

Sun protection drives with integrated radio transceiver
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
P5-20...L120-11

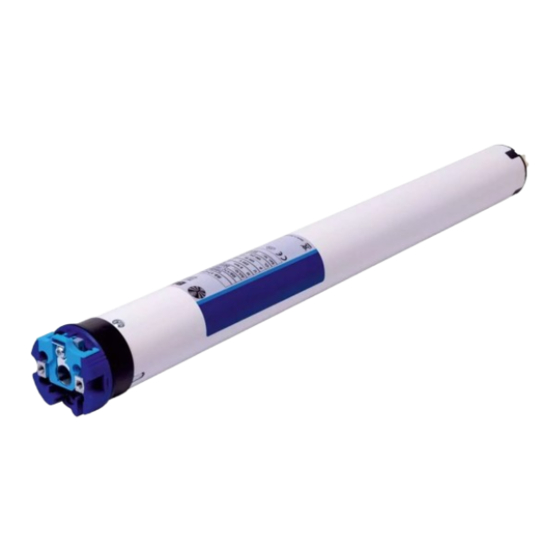

Model: C12 PLUS
Assembly and Operating Instructions
en
Sun protection drives with integrated radio
transceiver
Important information for:
• Fitters / • Electricians / • Users
Please forward accordingly!
These instructions must be kept safe for future reference.
2010 301 142 0b     19/10/2023
Becker-Antriebe GmbH
Friedrich-Ebert-Straße 2-4
35764 Sinn/Germany
www.becker-antriebe.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C12 PLUS and is the answer not in the manual?

Questions and answers

Related Manuals for Becker C12 PLUS

Summary of Contents for Becker C12 PLUS

  • Page 1 P5-20...L120-11 Model: C12 PLUS Assembly and Operating Instructions Sun protection drives with integrated radio transceiver Important information for: • Fitters / • Electricians / • Users Please forward accordingly! These instructions must be kept safe for future reference. 2010 301 142 0b     19/10/2023    ...

  • Page 2: Table Of Contents

    Table of contents General .................................... 3 Warranty .....................................  3 Safety instructions ................................ 4 Instructions for the user.............................. 4 Instructions for installation and commissioning........................ 4 Intended use .................................. 5 Assembling and disassembling the plug-in connecting cable.................... 6 Assembly ....................................  6 Compatible Centronic transmitters ............................ 9 Explanation of functions ...............................

  • Page 3: General

    General These tubular drives are high-quality products with the following features: • Optimised for sun protection applications • Suitable for awnings and conservatory shades. Type "+" drives are specially designed for cassette awnings • Individual, group and central radio control •...

  • Page 4: Safety Instructions

    Safety instructions The following safety instructions and warnings are intended to avert hazards and to prevent property damage and personal injury. Instructions for the user General information • The drive must be disconnected from its power source during cleaning and maintenance and when re- placing parts.

  • Page 5: Intended Use

    • If the drive is used for shading solutions in a specially marked area (e.g., escape routes, hazard zones, safety areas), compliance with all applicable regulations and standards must be ensured. • Once the drive has been installed, the fitter must mark the used tubular drive in the “Technical data” chapter and make a note of the installation position.

  • Page 6: Assembling And Disassembling The Plug-In Connecting Cable

    Assembling and disassembling the plug-in connecting cable Caution The power supply to the connecting cable must be disconnected prior to assembly/disas- sembly. Assembling the plug-in connecting cable Ø35/Ø45/Ø58 Insert the dead connecting cable into the drive head until the locating lug clicks into place in the drive. If necessary, use a suitable flathead screwdriver to assist with insertion.
  • Page 7 Caution Electrical connections may only be carried out by a qualified electrician. Prior to assembly, the power supply must be disconnected and secured. Please give the enclosed connection information to the responsible electrical contractor. Calculate the space required at the side (M) by measuring the drive head (1) and wall bracket (2). The clear dimension of the box (X) minus the space required at the side (M) and idler (G) gives the length (L) of the barrel: L=X-M-G.
  • Page 8 To ensure secure torque transmission for round shafts, we recommend screwing the drive adapter to the shaft (see the table below). Attention! When drilling into the barrel, never drill near the tubular drive! -10 mm Size of drive Drive adapter Torque Fastening screws [mm] max.

  • Page 9: Compatible Centronic Transmitters

    All CentronicPlus receivers can be operated with the Centronic transmitters listed in the Centronic/CentronicPlus compatibility table at www.becker-antriebe.com/downloads As two fundamentally different radio technologies are linked in this case, the full performance of the CentronicPlus radio control system is not available in this combination. When using the Centronic transmitter with CentronicPlus receiver, the range perform- ance may be reduced under certain circumstances.
  • Page 10 Awning operation By pressing a travel button, the awning moves to the set limit position. Delay time Response Behaviour in wind 15 min. Automatic 60 min. The receiver retracts when it rains 15 min. Automatic The receiver does not react to rain Automatic Automatic The receiver extends when it rains 15 min.

  • Page 11: Commissioning With A Centronicplus Transmitter

    Commissioning with a CentronicPLUS transmitter Explanation of symbols Retract button STOP button Extend button Programming button (on the transmitter) Function button (on the transmitter) LED ring on the transmitter Receiver confirms once or multiple times by “clicking” or “shifting” 1 = direction switch 2 = radio switch Attention The tubular drives are designed for short-time operation.

  • Page 12: Establish Programming Mode

    Establish programming mode This step is only necessary if one of the devices to be programmed is not yet part of the in- stallation. This is the case for brand new products, for example, or devices from another installation or products that have been restored to factory settings. Readying the tubular drive for programming by switching on the power Switch on the power.

  • Page 13: Adding Additional Transmitters To The Installation

    Press the STOP button to change the assignment status of the selected receiver. If the receiver is not yet part of the installation, it will be added and assigned to the se- lected channel. ▻ The receiver signals once to confirm the channel assignment, or signals twice to cancel the channel assignment.

  • Page 14: Checking That The Running Direction Is Correct

    Lights up red: No receiver located. Briefly press the programming button to change to the setting mode. ▻ The receiver confirms. ▻ The LED ring of the transmitter slowly pulses light blue. ▻ The receiver now enters dead-man mode. ► The setting mode is now active.   If a receiver has not yet been added to the installation (LED ring lights up yellow), it will not be possible to select it in this way.

  • Page 15: Intelligent Installation Management

    Then press the programming button for 3 seconds to change to normal mode. ► The LED ring goes out. Intelligent installation management Completion of installation following automatic setting of limit positions The drive saves the limit position permanently once the upper limit position is reached 3 times in succession. Installation is then complete.

  • Page 16: Changing The Additional Stop Behaviour Function

    Extended point to retracted stop Select the required receiver as described in the chapter Selection of the receiver for the setting mode [} 13]. Open to the desired extended limit position. Press the programming button and, within 3 seconds, also press the extend button and hold the two buttons down.

  • Page 17: Changing The Set Limit Positions

    Changing the set limit positions 1) Shortening the range of travel (the desired limit position is located inside the current range of travel) Select the required receiver as described in the chapter Selection of the receiver for the setting mode [} 13]. Open/close to the desired new limit position.

  • Page 18: Setting The Limit Positions With Auto-Install

    Setting the limit positions with Auto-Install Intelligent installation management Completion of installation following automatic setting of limit position "Stop" Next time the “stop” limit position is travelled to, this position will be provisionally saved as the limit position. Once the limit position has been detected at this position 3 times in a row without any problems, it will be definitively saved.

  • Page 19: Deleting The Limit Positions

    Auto point to retracted stop (only with articulated-arm awnings) Attention Ensure that the cloth is not wound up the wrong way by the barrel. Extend Retract Select the required receiver as described in the chapter Selection of the receiver for the setting mode [} 13].

  • Page 20: Intermediate Positions I + Ii

    Deleting both limit positions Any additional functions that may have been set are deleted at the same time, or are reset to the factory default settings. Select the required receiver as described in the chapter Selection of the receiver for the setting mode [} 13].

  • Page 21: Restoring The Wireless Memory Of The Tubular Drive To Factory Settings

    Deleting the desired intermediate position Move the shading solution to the intermediate position that is to be deleted. Now press the STOP button and, within 3 seconds, also press the travel button as- signed to the intermediate position and hold the two buttons down. ▻...
  • Page 22 Briefly press the programming button to change to the setting mode. ▻ The receiver confirms. ▻ The LED ring of the transmitter slowly pulses light blue. ▻ The receiver now enters dead-man mode. ▻ The setting mode is now active. Then press the programming button and also the button, the STOP button and the button for approximately 3 seconds.

  • Page 23: Commissioning With A Centronic Transmitter

    Commissioning with a Centronic transmitter Explanation of symbols Retract button STOP button Extend button Programming button (on the transmitter) Receiver confirms once or multiple times by “clicking” or “shifting” 1 = direction switch 2 = radio switch Attention The tubular drives are designed for short-time operation. An inbuilt thermal protection switch prevents overheating of the tubular drive.

  • Page 24: Intelligent Installation Management

    If several tubular drives are to be connected in parallel, you can deactivate the program- ming mode on one tubular drive by switching the radio switch to the outside position after turning the power on. Readying the tubular drive for programming with the radio switch Switch the radio switch to the inside position.

  • Page 25: Setting The Limit Positions

    Changing direction of rotation via master transmitter Press the button. ▻ The shading solution runs in the desired direction. ► The running direction is OK. If the shading solution runs in the wrong direction, the running direction must be changed. Proceed as follows: First, press the programming button, then within 3 seconds also press the button for 3 seconds.

  • Page 26: Changing The Additional Stop Behaviour Function With The Master Transmitter

    Changing the additional stop behaviour function with the master transmitter On delivery, the 35 diameter drive types have a reduced stop behaviour, and the 45 diameter and 58 diameter drive types have an increased stop behaviour. Proceed as follows to change the stop behaviour:   The "to retracted stop"...

  • Page 27: Setting The Limit Positions With Auto-Install

    Setting the limit positions with Auto-Install Intelligent installation management Completion of installation following automatic setting of limit position "Stop" Next time the “stop” limit position is travelled to, this position will be provisionally saved as the limit position. Once the limit position has been detected at this position 3 times in a row without any problems, it will be definitively saved.

  • Page 28: Deleting The Limit Positions

    Auto point to retracted stop (only with articulated-arm awnings) Attention Ensure that the cloth is not wound up the wrong way by the barrel. Extend Retract Extend the articulated-arm awning until the articulated arms are fully protracted and the cloth is lying loosely over them.

  • Page 29: Intermediate Positions I + Ii

    Intermediate positions I + II The intermediate positions I + II are freely selectable positions for the shading solution between the two limit positions. Each travel button can be assigned one intermediate posi- tion. Both limit positions must be set before an intermediate position is set. Setting/modifying the desired intermediate position Open/close the shading solution to the desired intermediate position.

  • Page 30: Deleting Transmitters

    Deleting transmitters Deleting individual transmitters The programmed master transmitter cannot be deleted. It can only be overwritten (see Programming the master transmitter [} 24]). Press the programming button on the master transmitter for 3 seconds. ▻ The tubular drive acknowledges. Now press the programming button of the transmitter to be deleted for 3 seconds. ▻...

  • Page 31: Additional Functions With Centronicplus / Centronic

    Readying the tubular drive for programming with the radio switch Switch the radio switch to the inside position. If the radio switch is already in this posi- tion, switch it to the outside and back to the inside position. ▻ The tubular drive is ready to program for 3 minutes. Now press the programming button of the new master transmitter for 10 seconds.

  • Page 32: Activating/Deactivating The Additional Fabric Tensioning Function

    Activating/deactivating the additional fabric tensioning function On delivery, the fabric tensioning function is deactivated. Activating the fabric tensioning function with a CentronicPLUS transmitter The fabric tensioning function is performed in the Extend limit position and at the pro- grammed intermediate position. Select the required receiver as described in the chapter Selection of the receiver for the setting mode [} 13].

  • Page 33: Restoring The Factory Settings Of The Tubular Drive

    Deactivating the fabric tensioning function with a Centronic transmitter (master transmitter) To deactivate it, move to the fabric tensioning limit position. Press the programming button and, within the next 3 seconds, press the STOP and buttons at the same time and hold the buttons down for 3 seconds. ▻...

  • Page 34: Local Operation With A Single Button

    Local operation with a single button Only use a single button (normally open). Only connect one drive for each push-button. The length of cable between the tubular drive and the push-button must not exceed 20 m. The push-button must not be operated during the first five seconds after the mains voltage has been switched on.

  • Page 35: Technical Data Dia. 35

    Technical data dia. 35 Tubular drive P5-20 P5-30 P9-16 Model C12 PLUS Type C PSF1 V1 Rated torque [Nm] Output speed [rpm] Limit switch range 64 revolutions Supply voltage 230 V AC / 50 Hz Connected load [W] Rated current consumption [A] 0.47 0.47 0.47 Operating mode S2 4 min.

  • Page 36: Technical Data Dia. 58

    Technical data dia. 58 Tubular drive L50-17 L60-11 L60-17 L70-17 Model C12 PLUS Type C PSF1+ V1 Rated torque [Nm] Output speed [rpm] Limit switch range 64 revolutions Supply voltage 230 V AC / 50 Hz Connected load [W] Rated current consumption 1.40 1.20 1.75 1.90 Operating mode S2 4 min.

  • Page 37: Error Messages

    Error messages The tubular drive is blocked. ► The transmitter confirms with 10 red flashes of the LED ring. The tubular drive is overheated. ► The transmitter confirms with 5 red / yellow flashes of the LED ring. The tubular drive is not responding. ►...

  • Page 38: Sample Wiring Diagram

    Sample wiring diagram 38 - en...

  • Page 39: Declaration Of Conformity

    Declaration of conformity 39 - en...
