Configuration Chart; Installation Instructions - Altronix TROVE T2KHK7F12 Installation Manual

Kantech kits, 12 door kit with fused/ptc outputs

page of 8

/ 8
Bookmarks

Altronix Trove Kantech kits are pre-assembled and consist of Trove2KH2 enclosure/backplane with factory installed Altronix power supply/charger

and sub-assemblies. These kits also accommodate various combinations of Kantech boards for up to twelve (12) doors in a single enclosure.

TKH2 accommodates a combination of the following Kantech boards:

•

Up to three (3) KT-MOD-INP16 or KT-MOD-OUTP16.

•

Up to two (2) KT-1.

•

Up to three (3) KT-400.

Altronix

Model Number

T2KHK3F12

5A/

250V

T2KHK3F12D

T2KHK7F12

6.3A/

250V

T2KHK7F12D

Wiring methods shall be in accordance with the National Electrical Code/NFPA 70/ANSI, and with all local codes and authorities having juris-

diction. Product is intended for indoor use only.

1. Remove backplane from enclosure. Do not discard hardware.

2. Mark and predrill holes in the wall to line up with the top three keyholes in the enclosure. Install three upper fasteners and screws in the

wall with the screw heads protruding. Place the enclosure's upper keyholes over the three upper screws, level and secure. Mark the position

of the lower three holes. Remove the enclosure. Drill the lower holes and install the three fasteners. Place the enclosure's upper keyholes

over the three upper screws. Install the three lower screws and make sure to tighten all screws.

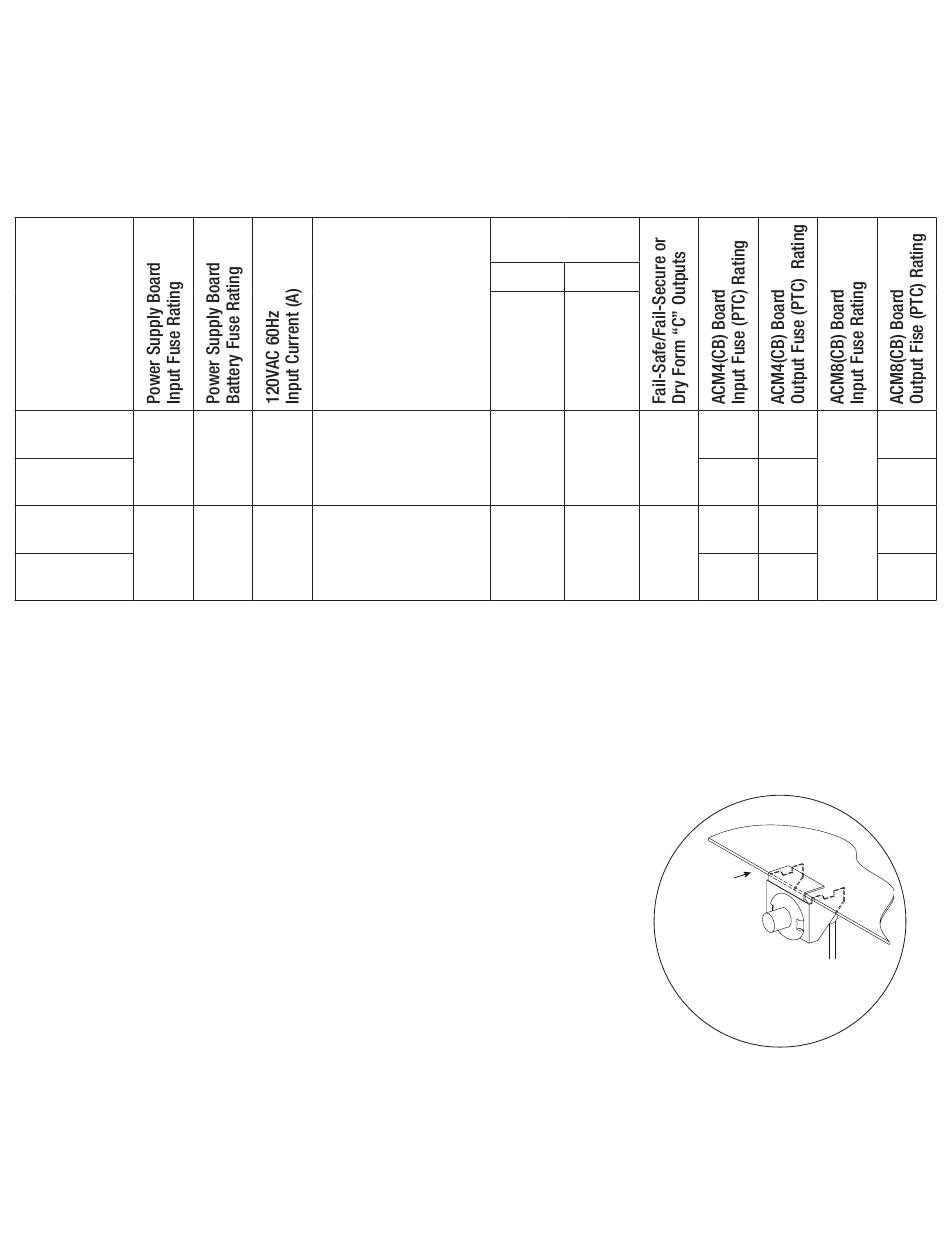

3. Mount included UL Listed tamper switch (Altronix Model TS112 or equivalent) in desired

location, opposite hinge. Slide the tamper switch bracket onto the edge of the enclosure

approximately 2" from the right side (Fig. 1, pg. 2).

Connect tamper switch wiring to the Access Control Panel input or the appropriate

UL Listed reporting device. To activate alarm signal open the door of the enclosure.

4. Mount Kantech boards to TKH2 backplane, refer to page 3.

5. Refer to the eFlow Power Supply/Charger Installation Guide for eFlow6NB and

eFlow104NB and corresponding Sub-Assembly Installation Guides for the

following models: ACM8(CB), ACM4(CB) and T1618300K for further

installation instructions.

- 2 -
