Altronix Trove Keri Systems kits are pre-assembled and consist of Trove enclosures/backplanes with factory installed Altronix power
supply/chargers and sub-assemblies. Both kits accommodate a variety of Keri Systems modules for up to eight (T2KSK3F8) or twelve
(T2KSK7F12) doors in a single enclosure.
Altronix
Model
Number
5A/
T2KSK3F8 3.5
250V
6.3A/
T2KSK7F12 4.5
250V
Wiring methods shall be in accordance with the National Electrical Code/NFPA 70/ANSI, and with all local codes and authorities having
jurisdiction. Product is intended for indoor use only.
1. Remove backplane from enclosure. Do not discard hardware.
2. Mark and predrill holes in the wall to line up with the top two/three keyholes in the enclosure. Install two/three upper fasteners and
screws in the wall with the screw heads protruding. Place the enclosure's upper keyholes over the two/three upper screws;
level and secure. Mark the position of the lower three holes. Remove the enclosure. Drill the lower holes and install the three
fasteners. Place the enclosure's upper keyholes over the two/three upper screws. Install the three lower screws and make sure to
tighten all screws.
3. Mount included UL Listed tamper switch (Altronix Model TS112 or equivalent) in
desired location, opposite hinge. Slide the tamper switch bracket onto the edge of the
enclosure approximately 2" from the right side (Fig. 1, pg. 2).
Connect tamper switch wiring to the Access Control Panel input or the appropriate
UL Listed reporting device. To activate alarm signal open the door of the enclosure.
4. Mount Keri Systems boards to backplane, refer to pages 3, 4.
5. Refer to the eFlow Power Supply/Charger Installation Guide for eFlow6NB and
eFlow104NB and corresponding Sub-Assembly Installation Guides for
ACMS8, PDS8, VR6 and ACM4 for further installation instructions.

Hardware:

Nylon Standoff |
- 2 -

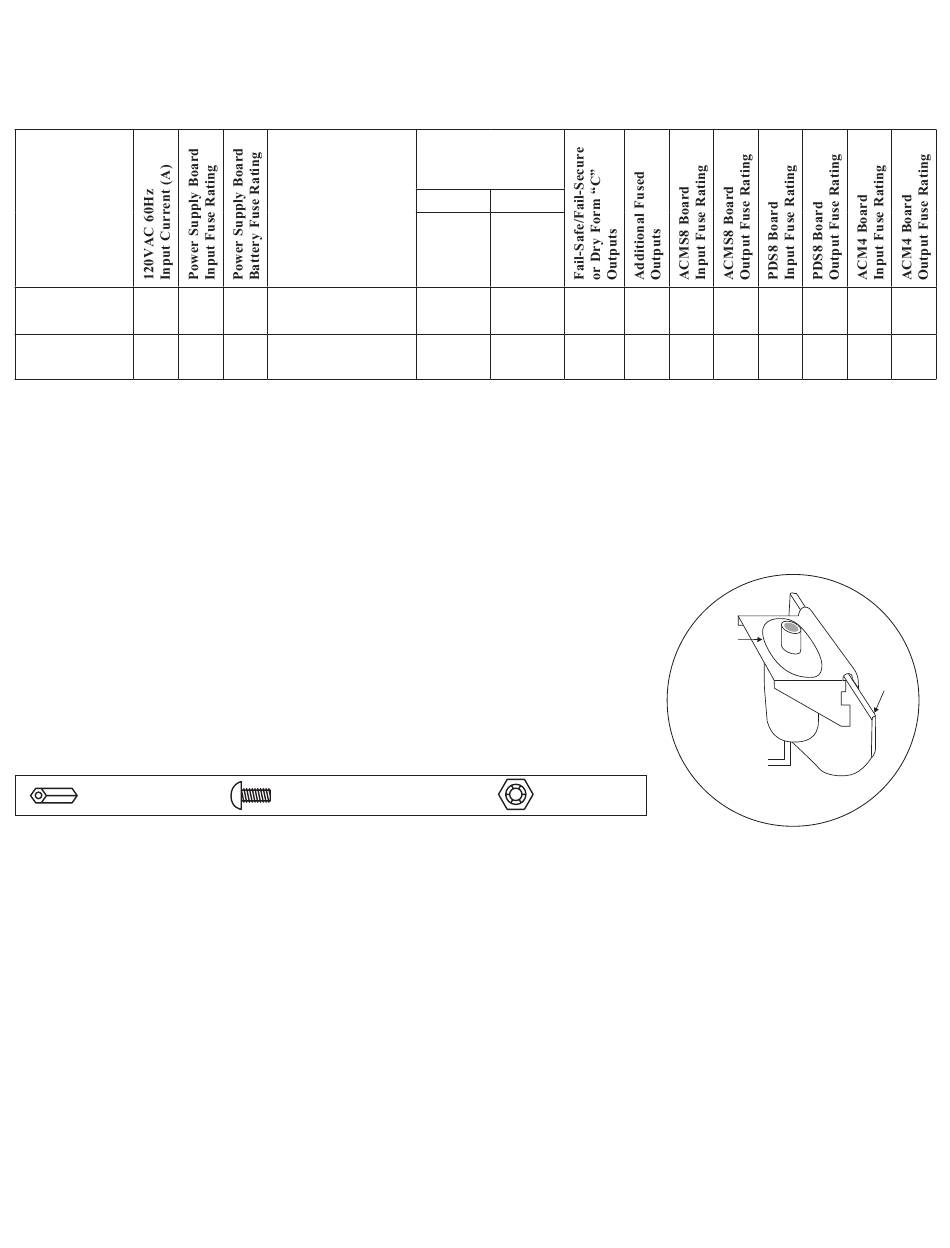

Configuration Chart:

Maximum Supply
Current for Main and
Aux. Outputs on
Power Supply board
and ACMS8/ACM4
Access Power
Controllers' outputs
15A/
24VDC @ 5.7A
32V
15A/
24VDC @ 9.4A
32V

Installation Instructions:

5/16" Pan Head Screw |

Overview:

Nominal DC
Output Voltage
[DC] [Aux]
Output Output
Range Range
(VDC) (VDC)
20.17-26.4 20.28-26.4 8
20.17-26.4 20.28-26.4 12
Lock Nut
15A/ 3A/ 10A/ 3A/
8
32V 32V 32V 32V
15A/ 3A/ 10A/ 3A/
8
32V 32V 32V 32V
Tamper
Switch
(provided)
to Access Control
Panel or
UL Listed
Reporting
Device
– –
10A/ 3A/
250V 32V
Fig. 1
Edge of
Enclosure
Enclosure
Trove Keri Systems Kits
