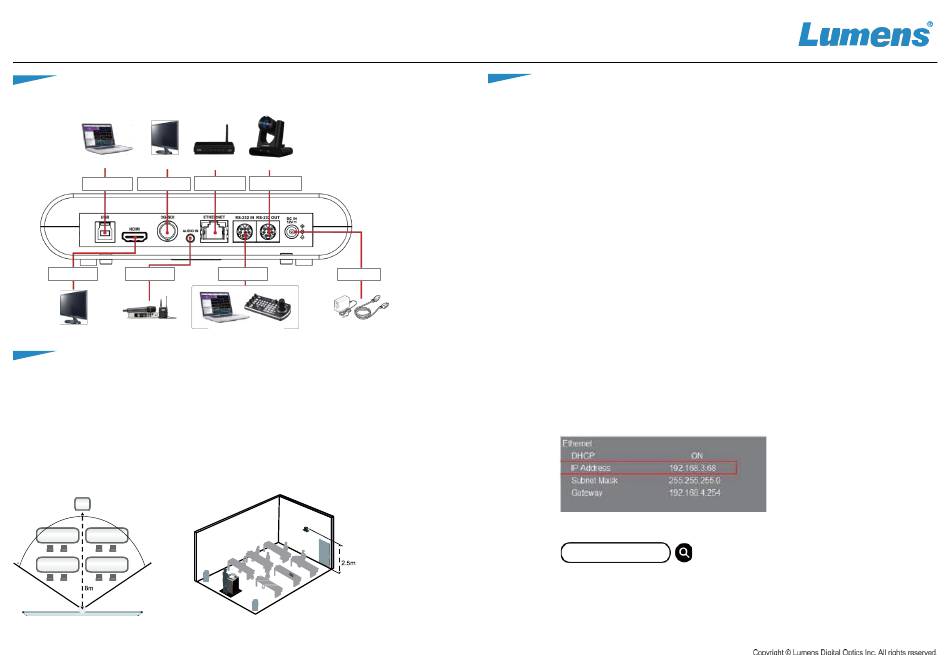

Lumens VC-TR60 Quick Installation Manual

VC-TR60 / VC-TR60, Dante AV-H Quick Installation Guide
1. Product connection
Computer Display
USB 2.0 Port 3G-SDI Output
HDMI Output Audio Input
Display Microphon
2. Precautions for Installation
2.1 Use the provided DC 12V power cord or a PoE router or hub to supply power via
a network cable.
*Camera supports PoE (lEEE802.3at)
2.2 Optimal tracking distance 8m.
Optimal installation height: 2.5m.
2.3
*For best tracking results, avoid placing images of people on posters or screens behind the subject.
Router / Hub Camera (Serial)
RS-232 Output
Ethernet Port
RS-232 Input
DC Input
Computer / VS-KB30
3. View Camera Images
 HDMI / 3G-SDI Image Output
Connect an HDMI or SDI cable to output camera video.
* The default resolution of camera is HDMI 2160p 59.94/ SDI 1080p 59.94
 USB Image Output
Connect to computer with a USB cable to view live image. Camera can be
used as a webcam with video conferencing applications such as Skype,
Zoom, Microsoft Teams and others.
 Network Image Output
Connect camera to network router using Cat5e to view live video and
control the camera via a web browser.
1. Check Camera IP Address
DHCP is enabled by default. Use the remote control & OSD to view
Camera's IP address by going to [Menu] => [Ethernet] => [IP Address] .
*If connecting the camera directly to your computer, the default IP of camera is
192.168.100.100.
Open a web browser, and enter the IP address in the address bar.
2.
192.168.3.68
Enter the account and password to view the camera IP image and control
3.
camera.
■ Account: admin ■ Password: 9999
