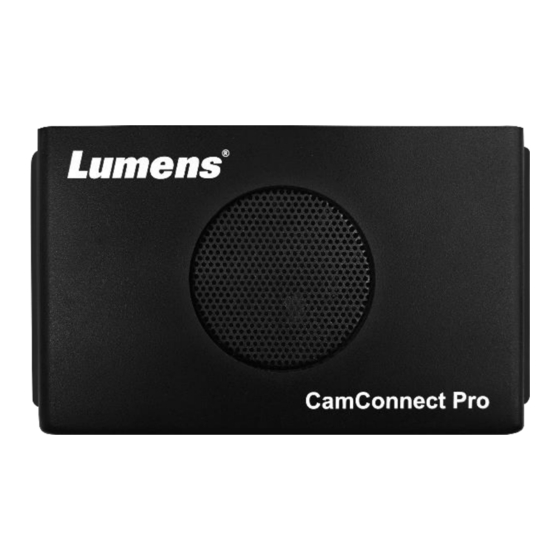

Lumens AI-Box1 User Manual
Hide thumbs
Also See for AI-Box1:
- User manual (31 pages) ,
- Quick installation manual (2 pages) ,
- User manual (24 pages)
Subscribe to Our Youtube Channel
Related Manuals for Lumens AI-Box1
Summary of Contents for Lumens AI-Box1
- Page 1 AI-Box1 User Manual-English Version: 1.6.3 To download the latest versions of the Quick Start Guide, multilingual user manual, software, driver, etc., please visit Lumens https://www.MyLumens.com/support...
-
Page 2: Table Of Contents
Chapter 4 Connect to a conference video software ......15 4.1 Set the output mode of AI-Box1 to UVC and click the start streaming option ....15 4.2 Launch a video software like Skype, Zoom, Microsoft Teams, or other similar software15 4.3 Choose the video source, to output camera images ............... -
Page 3: Chapter 1 System Connection And Application
Chapter 1 System Connection and Application 1.1 System Connection 1.2 AI-Box1 IO Interface... -
Page 4: Chapter 2 Operation Interface
Display the devices according to the Device Numbers Select Microphone Device Devices Please check the supported devices from Products- CamConnect Pro in Lumens website. Device IP Enter the IP address of the microphone Port Display based on the connected devices... -
Page 5: Camera Control & Status
IP, and click [Add] to add it Refresh/ Add Please ensure that the camera and AI-Box1 are on the same network segment. Device Name Display the camera name in the same network segment. - Page 6 The connected camera will be highlighted in blue. Click to enable PTZ control PTZ Control Refer to 2.2.1 PTZ Control for function description Enable/Disable AI People Tracking Center Stage: After triggering to the preset position, the tracked person will be positioned in the center of view and tracking will stop after 5 AI Setting seconds Continuous Tracking: The system will continuously track a person and...
-
Page 7: Device & Camera Mapping
Zoom Zoom In/ Zoom Out ratio Exit Exit the PTZ Control page 2.3 Device & Camera Mapping After the microphone device is connected, the camera can be controlled to turn to the corresponding preset position according to the microphone detection position. Item Function Descriptions Select mapping quantity. -
Page 8: System Setting
Profile Setting cameras once. If the devices have a longer boot-up time, it may cause AI-Box1 failed to connect to the devices properly. To prevent this issue, please adjust the system waiting time based on the current environment and the boot-up time of the microphones and cameras. -
Page 9: Video Output Setting
Video Output Setting Item Function Descriptions Video Output Mode Set the Output Mode to either UVC, HDMI or UVC+HDMI Configure the layout of the video output according to the provided reference in section 2.5.1 Video Output Layout Cross: 4-split screen Video Output Layout ... -
Page 10: Start Video Output
Click to output the camera images to HDMI or UVC devices Information Function Descriptions This window displays the software version information of AI-Box1. Click on to confirm the latest version and updates For technical support, please scan the QRcode on the right. -
Page 11: Chapter 3 Web Interface
Chapter 3 Web Interface 3.1 Device Setting Item Function Descriptions Select the desired number of microphones to connect Devices: Select Microphone Device Device IP: Enter the IP address of the microphone Port: Display based on the connected devices ... - Page 12 Refresh: Perform a device search again Add: Manually enter the specified IP address and click on Please ensure that the camera and AI-Box1 are on the same network segment. Connect/Disconnect: Click [Connect]to establish a connection with the...
-
Page 13: System- Network
3.2 System- Network Function Descriptions Ethernet Setting. When it is set to Static IP, the setting can be modified. Once the settings are completed, click Apply. 3.3 System- System Item Function Descriptions... -
Page 14: Video Output Setting
Language English Auto connected items setting after AI-Box1 power on. Sound Device Auto Connection Camera Video Output Save/ Load: Import and export the config file Profile Setting AutoSave Interval: Set the auto saving interval. Reset/ Apply Reset/ Apply settings 3.4 Video Output Setting... -
Page 15: Maintenance
If the camera operates abnormally, please export the log and provide it to Lumens for confirmation. 3.6 About Function Descriptions This window displays the software version information of AI-Box1. Click on to confirm the latest version and updates For technical support, please scan the QRcode at the bottom right... -
Page 16: Chapter 4 Connect To A Conference Video Software
Chapter 4 Connect to a conference video software Set the output mode of AI-Box1 to UVC and click the start streaming option Launch a video software like Skype, Zoom, Microsoft Teams, or other similar software Choose the video source, to output camera images... -
Page 17: Chapter 5 Microphone Settings
Chapter 5 Microphone Settings Please check the supported devices from Products- CamConnect Pro in Lumens website. Before AI-Box1 installation, third-party microphone systems may require configuration in their software. Sennheiser When using TCC2 with CamConnect, please set and configure the channels on the Sennheiser Control Cockpit software first. -
Page 18: Chapter 6 Troubleshooting
Chapter 6 Troubleshooting This chapter describes problems you may encounter while using AI-Box1. If you have questions, please refer to related chapters and follow all the suggested solutions. If the problem still occurred, please contact your distributor or the service center. -
Page 19: Copyright Information
Lumens is a trademark that is currently being registered by Lumens Digital Optics Inc. Copying, reproducing or transmitting this file is not allowed if a license is not provided by Lumens Digital Optics Inc. unless copying this file is for the purpose of backup after purchasing this product.
