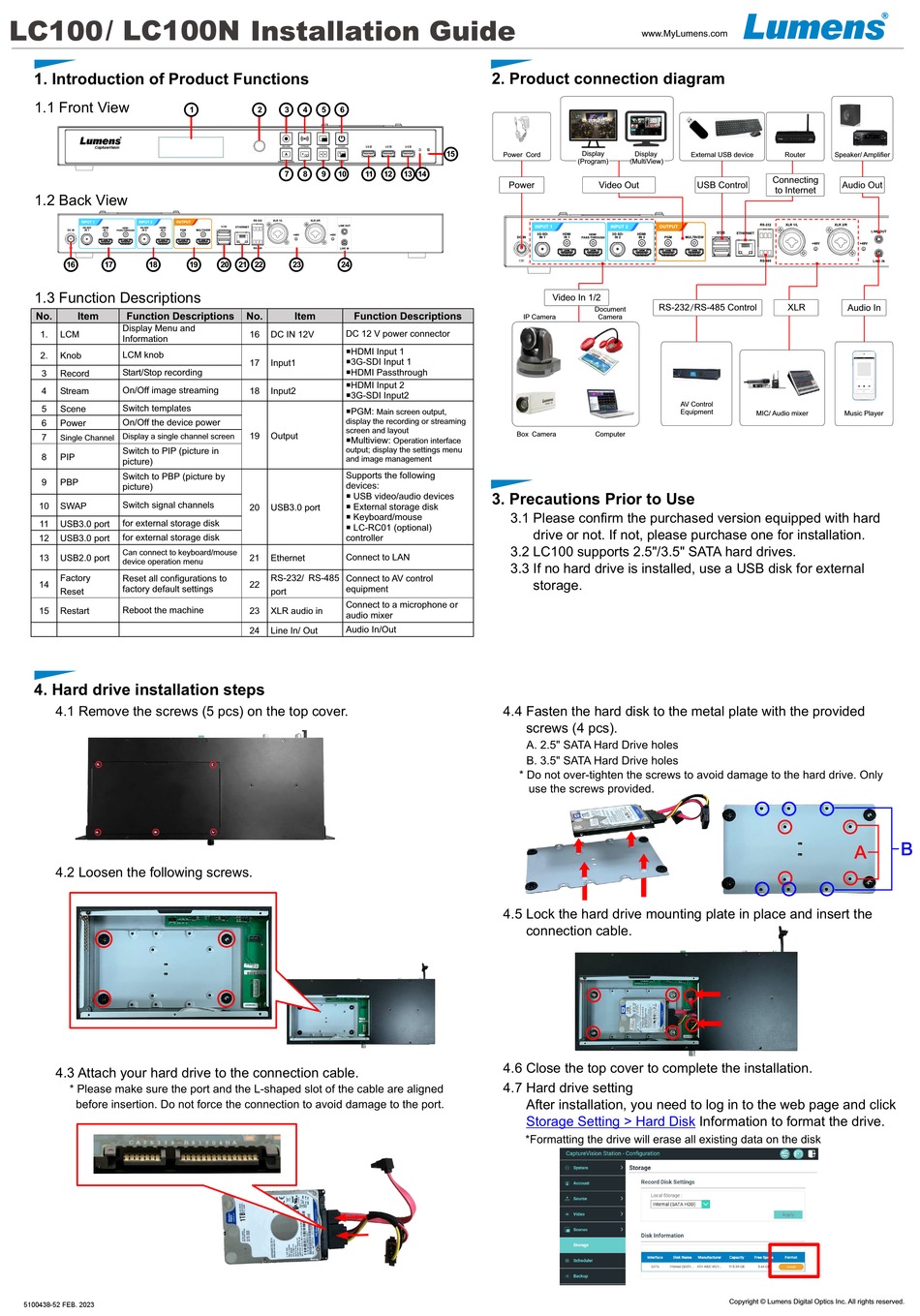

Lumens LC100N Installation Manual

/ LC100N

1. Introduction of Product Functions

1.1 Front View
1
1.2 Back View
16 17 18 19
1.3 Function Descriptions
No. Item Function Descriptions
Display Menu and
1. LCM
Information
LCM knob
2. Knob
Start/Stop recording
3 Record
On/Off image streaming
4 Stream
Switch templates
5 Scene
On/Off the device power
6 Power
Single Channel Display a single channel screen
7
Switch to PIP (picture in
8 PIP
picture)
Switch to PBP (picture by
9 PBP
picture)
Switch signal channels
10 SWAP
for external storage disk
11 USB3.0 port
for external storage disk
12 USB3.0 port
Can connect to keyboard/mouse
13 USB2.0 port
device operation menu
Factory
Reset all configurations to
14
factory default settings
Reset
Reboot the machine
15 Restart

4. Hard drive installation steps

4.1 Remove the screws (5 pcs) on the top cover.
4.2 Loosen the following screws.
4.3 Attach your hard drive to the connection cable.
* Please make sure the port and the L-shaped slot of the cable are aligned
before insertion. Do not force the connection to avoid damage to the port.
5100438-52 FEB. 2023
2 3 4 5 6
USB USB
7 8 9 10 11 12
USB
20 21 22 23 24
No. Item Function Descriptions
DC 12 V power connector
16 DC IN 12V
¡
HDMI Input 1
¡ 3G-SDI Input 1
17 Input1
¡ HDMI Passthrough
¡ HDMI Input 2
18 Input2
¡ 3G-SDI Input2
¡
PGM: Main screen output,
display the recording or streaming
screen and layout
19 Output
¡ Multiview:
Operation interface
output; display the settings menu
and image management
Supports the following
devices:
¡ USB video/audio devices
¡ External storage disk
20 USB3.0 port
¡ Keyboard/mouse
¡
LC-RC01 (optional)
controller
Connect to LAN
21 Ethernet
RS-232/ RS-485
Connect to AV control
22
equipment
port
Connect to a microphone or
23 XLR audio in
audio mixer
Audio In/Out
24 Line In/ Out

2. Product connection diagram

USB
15
Power Cord
13 14
Power
Video In 1/2
IP Camera
Box Camera

3. Precautions Prior to Use

3.1 Please confirm the purchased version equipped with hard
drive or not. If not, please purchase one for installation.
3.2 LC100 supports 2.5"/3.5" SATA hard drives.
3.3 If no hard drive is installed, use a USB disk for external
storage.
4.4 Fasten the hard disk to the metal plate with the provided
screws (4 pcs).
A. 2.5" SATA Hard Drive holes
B. 3.5" SATA Hard Drive holes
* Do not over-tighten the screws to avoid damage to the hard drive. Only
use the screws provided.
4.5 Lock the hard drive mounting plate in place and insert the
connection cable.
4.6 Close the top cover to complete the installation.
4.7 Hard drive setting
After installation, you need to log in to the web page and click
Storage Setting > Hard Disk
*Formatting the drive will erase all existing data on the disk
www.MyLumens.com
Display Display
External USB device
(Program) (MultiView)
Video Out USB Control
USB
RS-232/RS-485 Control
Document
Camera
AV Control
Equipment
Computer
Information to format the drive.
Copyright © Lumens Digital Optics Inc. All rights reserved.
