Lumens VC-TR61 Quick Installation Manual

VC-TR61 Quick Installation Guide

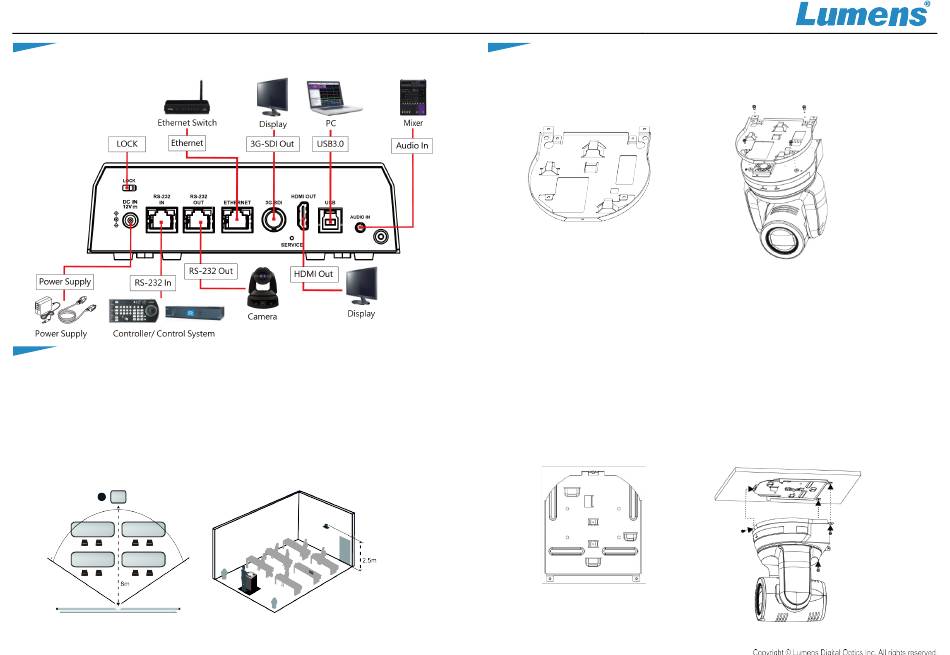

1. I/O interface
2. Precautions for Installation
2.1 Use the provided DC 12V power cord or a PoE router or hub to supply
power via a network cable.
*Camera supports PoE+ (lEEE802.3at)
 Supported tracking distance: 2~18m/ Optimal distance：8m
*For best tracking results, avoid placing images of people on posters or screens behind the subject.
www.MyLumens.com
3. Installation on the ceiling
4.1 Fix the metal plate A on the camera base with 4 M3 silver screws.
Metal Plate A
4.2 Lock the metal plate B on the ceiling
*Caution:
(1) Please use a hanger that has obtained UL security approval.
(2) Please do not block the cable hole.
4.3 Attach metal plate A to metal plate B
Raise the camera and metal plate A to the ceiling and then move it to the

right to snap it on to metal plate B.
 Finally, secure with 2 M3 silver screws and 1 M3 black screw.
*Press the [Mirror] button on the remote control to flip the image.
Metal Plate B
