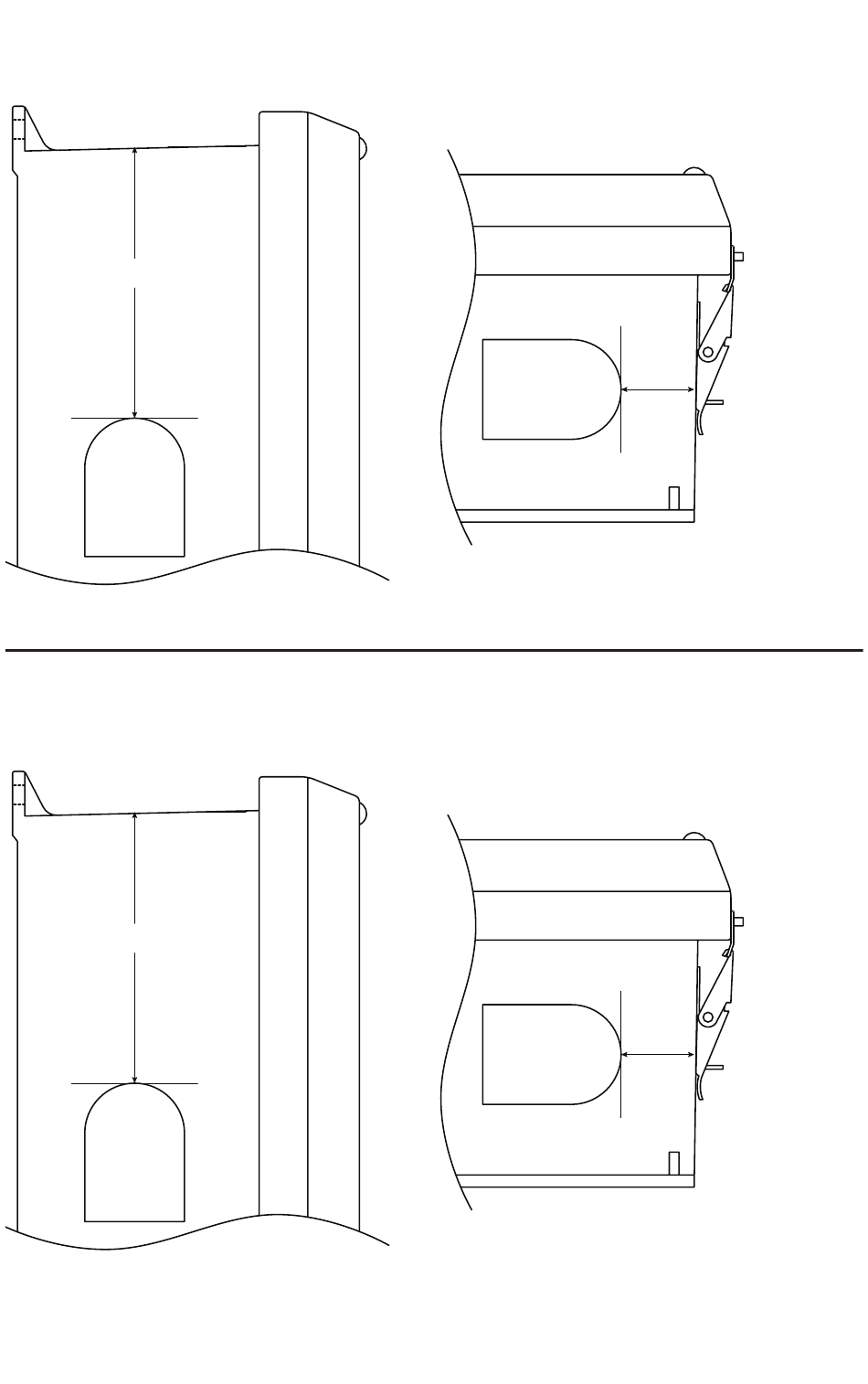

Fig. 5
Left Side of Enclosure
5"
1. Using the template from the Vent2 bag, install the vents in the positions shown above.
Fig. 6
Left Side of Enclosure
7"
1. Using the template from the Vent2 bag. Install the vents in the positions shown above.
NetWaySP8C3W Series Installation Guide
Installing Vent2 on NetWaySP8C3W2:
Installing Vent2 on NetWaySP8C3W5:
Bottom of Enclosure
0.75"
Bottom of Enclosure
1.75"
- 9 -
